Here is complete technical summary for your system setup:

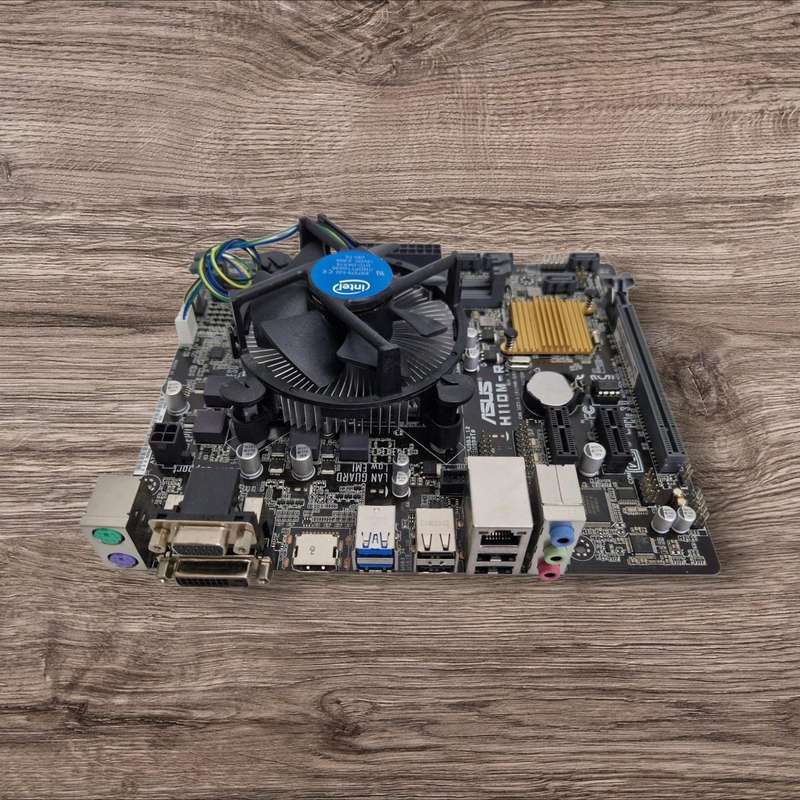

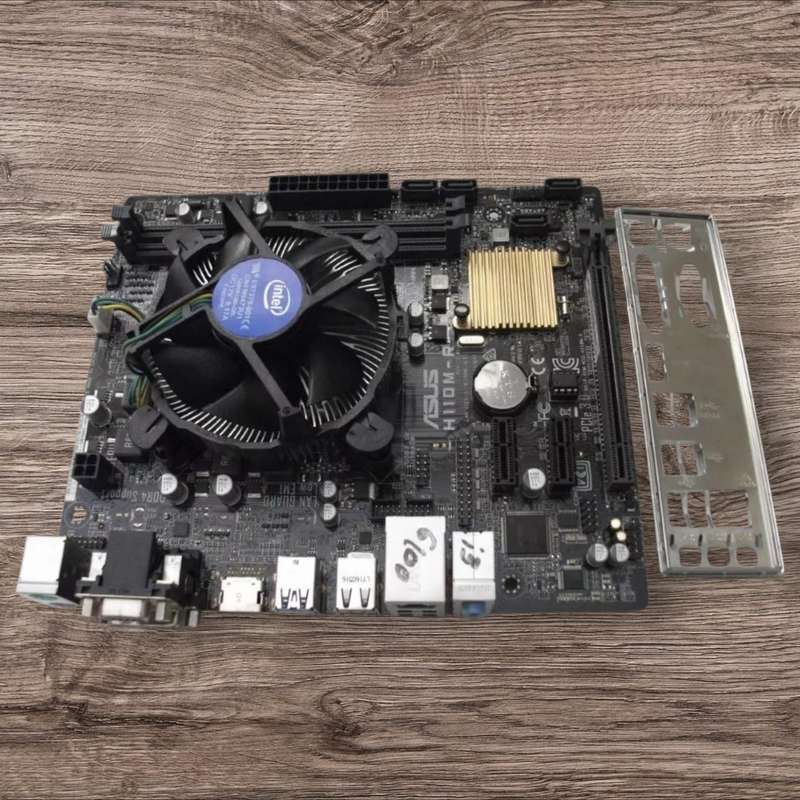

🖥 System Overview: Asus H110M-R + i5-7500 + 8GB RAM + Intel Cooler
🔧 Motherboard: ASUS H110M-R
Form Factor: Micro-ATX (22.6 cm x 18.5 cm)
Chipset: Intel® H110 Express
CPU Socket: LGA 1151 (supports 6th & 7th Gen Intel Core CPUs)
Memory Support:
2× DDR4 DIMM slots
Up to 32GB total system memory
DDR4-2133 MHz (non-ECC, un-buffered)
Expansion Slots:
1× PCIe 3.0/2.0 x16
2× PCIe 2.0 x1
Storage:
4× SATA 6Gb/s ports
Graphics Output:
1× VGA (D-Sub)
1× DVI-D
Audio: Realtek ALC887 8-channel HD Audio
LAN: Realtek RTL8111H Gigabit Ethernet
USB Ports:
Rear I/O: 2× USB 3.0, 4× USB 2.0
Internal headers: Up to 2× USB 3.0, 2× USB 2.0
BIOS: UEFI BIOS with EZ Mode
Processor: Intel Core i5-7500 (7th Gen Kaby Lake)
Cores / Threads: 4 Cores / 4 Threads
Base Clock: 3.40 GHz
Max Turbo Frequency: 3.80 GHz
Cache: 6MB Intel Smart Cache
TDP: 65W
Integrated Graphics: Intel® HD Graphics 630
Base Frequency: 350 MHz
Max Dynamic Frequency: 1.10 GHz
Supports 4K at 60Hz via DisplayPort (motherboard-dependent)
Memory Support: DDR4-2133 MHz (dual-channel)
Instruction Set: 64-bit, AVX2, Intel VT-x/VT-d, AES-NI
🧠 Memory (RAM): 8GB DDR4
Capacity: 8GB (1×8GB or 2×4GB module)
Type: DDR4 SDRAM
Speed: 2133 MHz (native limit by H110 chipset)
Configuration: Single- or dual-channel depending on slot usage
ECC: Not supported (non-ECC only)
🌀 Cooling: Stock CPU Cooler (for LGA 1151, 65W TDP)
Design: Radial fan with aluminum heatsink
Thermal Design Power: Up to 65W
Material: Aluminum with thermal paste pre-applied
Fan Diameter: ~90mm
Mounting: Push-pin clip (tool-less)
Noise Level: Typically 2028 dBA under normal load
