** ASUS H610M-R D4  ** GAMING MOTHERBOARD **

** GOOD CONDITION **
** INCLUDES 3D IO SHILED, THAT YOU WILL NEED TO CUT OUT YOURSELF **
** WARRANTY **

PRODUCT SPECIFICATIONS:

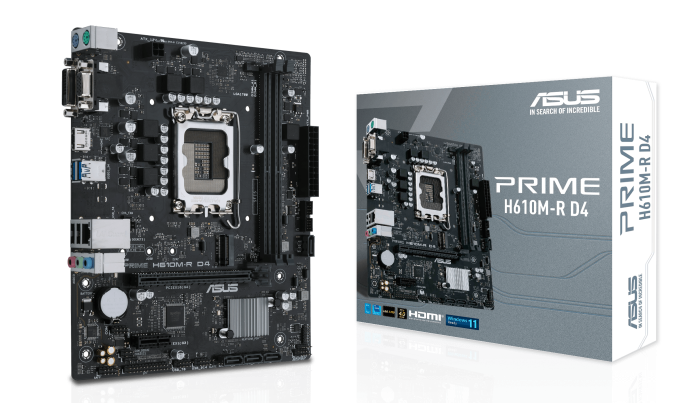

The ASUS Prime H610M-R D4 is a micro-ATX motherboard supporting 14th, 13th, and 12th generation Intel processors via the LGA 1700 socket.

Core Specifications

CPU Support: Intel LGA 1700 socket for 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors

Chipset: Intel H610

Memory (RAM): 2 x DIMM slots, supporting up to DDR4 3200 MHz

Expansion Slots:1 x PCIe 4.0 x16 slot (SafeSlot Core)1 x PCIe 3.0 x1 slot [1]

Storage:1 x M.2 slot (Key M, supports PCIe 3.0 x4 up to 32 Gbps, type 2242/2260/2280)

4 x SATA 6Gb/s ports

Rear I/O Ports:

2 x USB 3.2 Gen 1 Type-A ports

2 x USB 2.0 Type-A ports

1 x D-Sub (VGA) port

1 x DVI-D port

1 x HDMI port1 x Realtek 1Gb Ethernet port

3 x Audio jacks

PS/2 Keyboard (purple) and Mouse (green) ports

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

Form Factor: Micro-ATX
