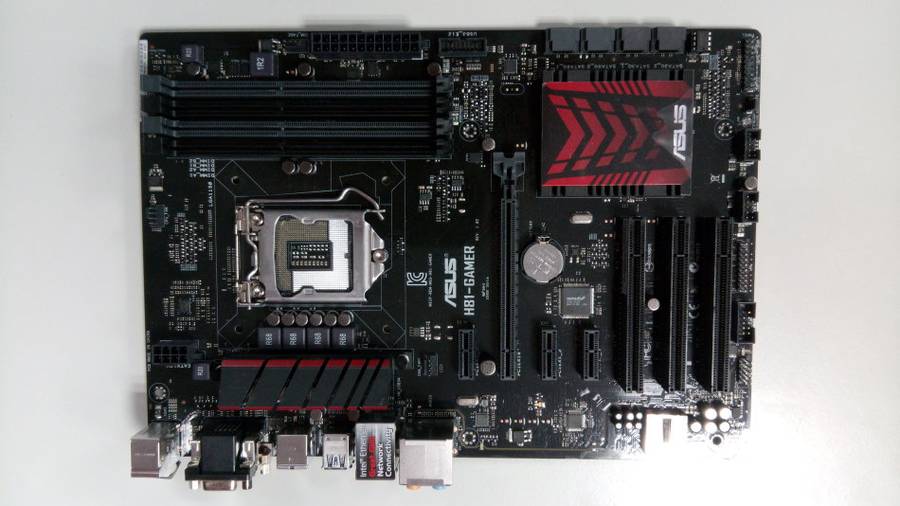

ASUS H81-GAMER Socket 1150 ATX Motherboard

ASUS H81-GAMER Socket 1150 ATX Motherboard

CPU
Intel® Socket 1150 for the New 4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® H81

Memory
4 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
* Due to Intel® chipset limitation, this motherboard can only support single-side memories when four modules are installed and they will run at the maximum transfer rate of DDR3 1066 MHz.

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe 2.0 x16 (x16 mode, gray)
3 x PCIe 2.0 x1
3 x PCI

Storage
Intel® H81 chipset :
2 x SATA 6Gb/s port(s), gray,
2 x SATA 3Gb/s port(s), black
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN
Intel®, 1 x Gigabit LAN Controller(s)

Audio
SupremeFX 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 115 dB SNR stereo playback output
Audio Feature :
- SupremeFX Shielding™ Technology
- ELNA premium audio capacitors
- Optical S/PDIF out port(s) at back panel
- Audio amplifier: Provides the highest-quality sound for headphone and speakers

USB Ports
Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, )
ASMedia® ASM1042 controller :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

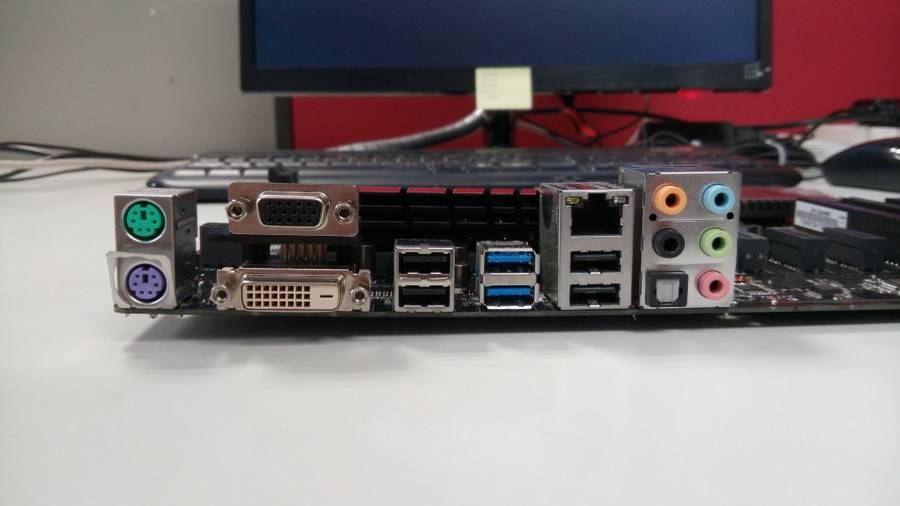

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)

Internal I/O Ports
1 x AAFP connector
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
1 x COM port(s) connector(s)
2 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Clear CMOS jumper(s)

Form Factor
ATX Form Factor
12 inch x 8.4 inch ( 30.5 cm x 21.4 cm )
