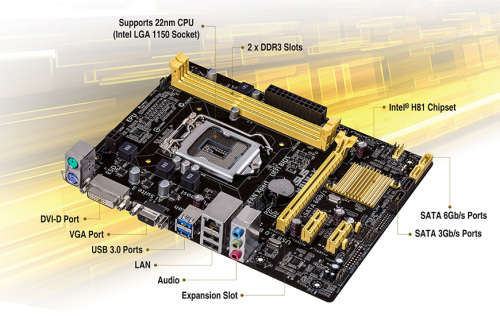

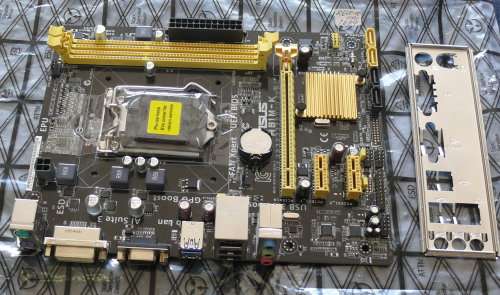

ASUS H81M-K LGA 1150 Intel H81 SATA 6Gb/s USB 3.0 uATX Intel Motherboard
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
LGA 1150 CPU Type Core i7 / i5 / i3 / Pentium / Celeron (LGA1150)
Supported CPU
Supported CPU Technologies
Turbo Boost Technology 2.0
Chipsets
Onboard Video
Memory
Number of Memory Slots
2×240pin
Memory Standard
DDR3 1600/ 1333/ 1066
Maximum Memory Supported
16GB
Dual Channel
Expansion Slots
PCI Express x16
1 x PCI Express x16
PCI Express x1
2 x PCIe 2.0 x1
Storage Devices
2 x SATA 3Gb/s port(s), dark brown
2 x SATA 6Gb/s port(s), yellow
Onboard Audio
Realtek ALC887
8 Channels
Onboard LAN
LAN Chipset
Realtek 8111G
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
Video Ports
1 x DVI
1 x D-Sub
RJ45
1 x RJ45
2 x USB 3.0 (blue)
USB 1.1/2.0
2 x USB 2.0
Audio Ports
3 Ports
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors
1 x CPU Fan connector(s) (1 x 4-pin)
1 x Chassis Fan connector(s) (1 x 4-pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x Clear CMOS jumper(s)
Physical Spec
Form Factor
uATX
Dimensions (W x L)
8.90" x 6.90"
Power Pin
24 Pin
Features
Features
Special Features:
ASUS EPU:
- EPU
ASUS Exclusive Features:
- GPU Boost
- AI Suite 3
- Ai Charger
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Network iControl
- USB 3.0 Boost
- Disk Unlocker
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
ASUS Q-Design:
- ASUS Q-Slot
Operating System Support:
Windows 8
Windows 7
BIOS:
64MB Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability:
WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc:
Drivers
ASUS Utilities
EZ Update
Anti-Virus Software (OEM Version)
Integrated Graphics Processor
Multi-VGA output support: DVI/RGB ports
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Intel H81
