PLEASE READ BEFORE YOU BUY

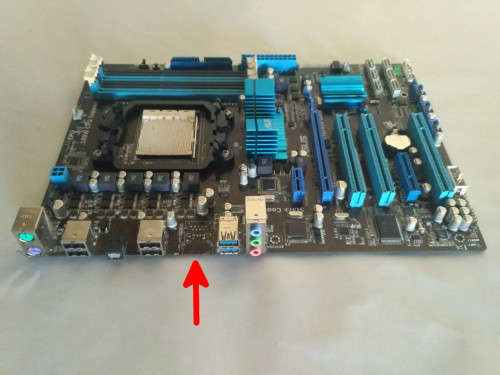

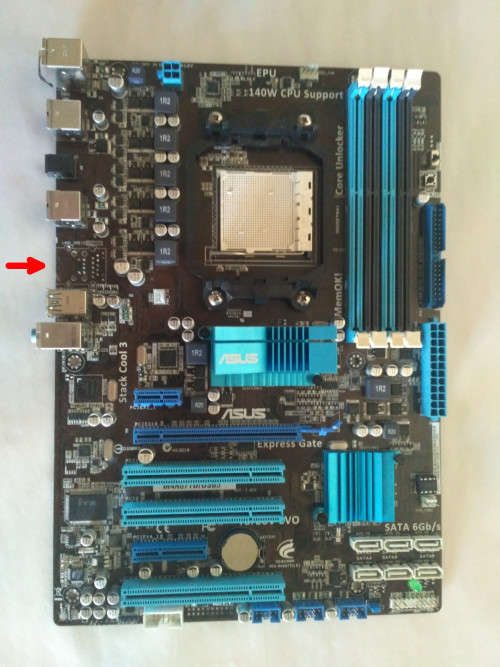

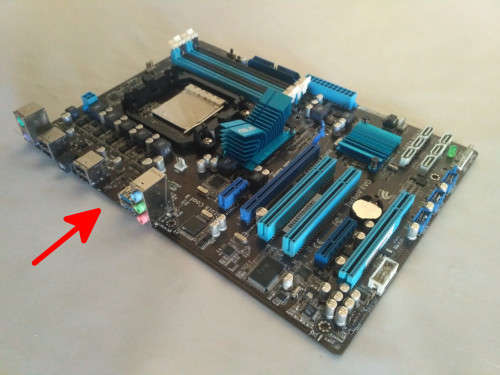

(The ethernet port and 2 USB ports were removed by the owner due to malfunction. See red arrow on the images above)
(Brand new BIOS chip installed with latest BIOS flashed)
All other features are guaranteed to work 100% or your money back.
CPU
AMD AM3 Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3 45 nm CPU
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology
Chipset
AMD 870/SB850
Memory
4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1600/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to
www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 and 200 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
* DDR3 Memory Ultra Low Voltage support
System Bus
Up to 5.2 GT/s HyperTransport™ 3.0
Expansion Slots
1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
1 x PCIe 2.0 x1
3 x PCI
Storage
AMD SB850 controller :
6 x SATA 6Gb/s port(s), white
Support Raid 0, 1, 5, 10
JMicron® JMB368 controller :
1 x UltraDMA 133/100/66 for up to 2 PATA devices , navy blue
LAN
(Ethernet Port removed by the owner due to mulfunction. See red arrow on the images above)
Realtek® 8111E , 1 x Gigabit LAN Controller(s), featuring AI NET2
Audio
VIA VT1818 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel
USB Ports
NEC® USB 3.0 controller :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
AMD SB850 controller :
12 x USB 2.0 port(s) (6 at back panel, black, 6 at mid-board)
ROG Exclusive Features
Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
ASUS Xtreme Design :
ASUS Hybrid Processor - TurboV EVO :
- Turbo Unlocker
- TurboV
- CPU Level Up
ASUS EPU :
- EPU
ASUS Hybrid Switch :
- Core Unlocker
- Turbo Key
ASUS Exclusive Features :
- MemOK!
- Express Gate
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x LAN (RJ45) port(s) (Removed)
2 x USB 3.1 Gen 1
6 x USB 2.0 (Only 4 USB 2.0)
1 x Optical S/PDIF out
3 x Audio jack(s)
Internal I/O Ports
3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
1 x IDE connector(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s) (3 -pin)
1 x Power Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x Core Unlocker switch(es)
1 x Clear CMOS jumper(s)
Accessories
User's manual
I/O Shield
1 x UltraDMA 133/100 cable(s)
2 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1) *1
BIOS
8 Mb Flash ROM , SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
Support Disc
Drivers
Anti-virus software (OEM version)
ASUS Utilities
ASUS Update
Form Factor
ATX Form Factor
12 inch x 8.4 inch ( 30.5 cm x 21.3 cm )
