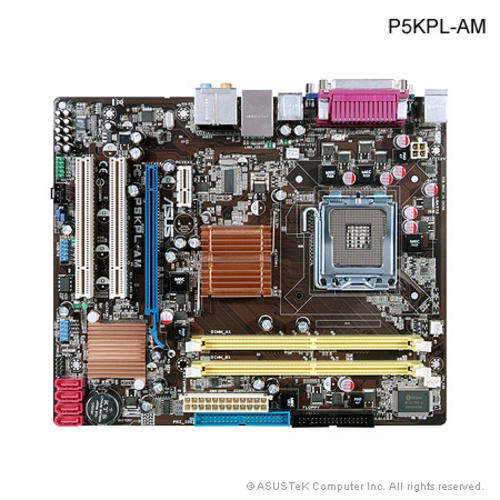

ASUS P5KPL-AM SE Intel G31, LGA775, 1600(O.C)FSB Motherboard

CPU

Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® D/Pentium® 4/Celeron® E1000 Series and Celeron 400 Series Intel® Hyper-Threading Technology ready
*Refer to www.asus.com for Intel CPU support list

Chipset

Intel® G31 Intel ICH7

Front Side Bus

1600*/1333/1066/800 MHz (*1600 is overclock speed)

Memory

2 x DIMM, Max. 4 GB, DDR2 1066(O.C.)/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*Overclock speed
**Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
***When installing total memory of 4GB capacity or more, WindowsR 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe x16
1 x PCIe x1
2 x PCI

VGA

Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz

Storage

Southbridge
1 xUltraDMA 100/66/33
4 xSATA 3 Gb/s ports

LAN

Realtek RTL8102EL 100/10 LAN

Audio

VIA VT1708B 8 -Channel High-Definition Audio CODEC
Anti-Pop Function
Jack-detect & Multi-Streaming
Support S/PDIF Out connector

USB

8 USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)

Overclocking Features

SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 600MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Special Features

ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Fan

Back Panel I/O Ports

1 x Parallel
1 x VGA
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
4 x USB 2.0/1.1
1 x COM port
8 -Channel Audio I/O

Internal I/O Connectors

2 x USB connectors support additional 4 USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x internal speaker connector
1 x CPU/ Chassis/ Power Fan connector
1 x Front panel High Definition audio connector
1 x S/PDIF Out connector
1 x Chassis Intrusion connector
1 x CD audio in connector
24-pin EPS 12V Power connector
4-pin ATX 12V Power connector
1 x System Panel connector
4 x Serial ATA connectors

BIOS

8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.5
ACPI 2.0

Manageability

WOL,PXE,RPL,WOR ,PME Wake Up

Accessories

User's manual
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
1 x SATA cable
1 x SATA power cable
I/O Shield

Support Disc

Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Form Factor

uATX Form Factor
9.6 inch x8 inch ( 24.4 cm x 20.3 cm )
