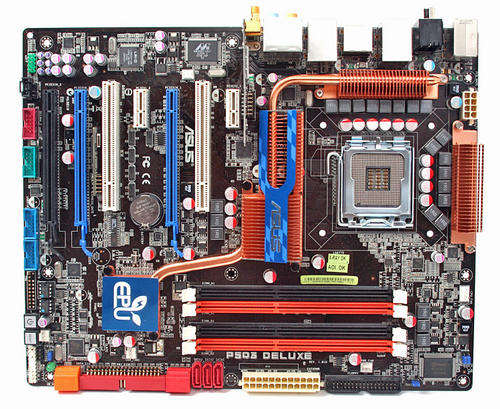

P5Q3 Deluxe WiFi-AP
The best computing & power saving combined platform
· Intel LGA775 Platform
· Intel® P45 chipset
· Dual-channel DDR3 2000(O.C.)/1600/1333/1066 MHz
· True16-phase Power Design
· ASUS EPU-6 Engine
· ASUS Express Gate SSD
· ASUS Drive Xpert
· WiFi-AP @n
· VRD11.1 CPU support (backward support VRD10.X CPU)
ASUS Intel P35, LGA775, 1333FSB, 4xDual DDR3 2000, 2x PCI-x16 cross fire, 2xPCI-x1, 3xPCI, 1xATA133, 6xSATAII(Raid 0,1,5,10), 2x eSATA, 2x Gbe Lan, 8ch-Sound, Max 10xUSB, 2xIEEE1394, ATX
CPU | LGA775 socket for Intel® Core™2 Extreme/ Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core/Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Supports Intel® 45nm Multi-Core CPU |
Chipset | Intel P45/ICH10R with Intel® Fast Memory Access(FMA) support. |
Front Side Bus | 1600 / 1333 / 1066 / 800 MHz |
Memory | 4 x DIMM, max. 16GB, DDR3 2000(O.C.) / 1600 / 1333 / 1066 MHz, Non ECC, un-buffered memory
|
Expansion Slots | 2 x PCI Express 2.0 x16 slots, support ATI CrossFireX™ technology at x8 link
(PCIe x16_1 blue, PCIe x16_2 black*)
1 x PCI Express x16 slot at max. x4 link(black)
2 x PCI Express x1 slots
2 x PCI slots
*PCI Express x16_2 slot (black at max. x8 link) |
CrossFire | Support ATI CrossFireX™ technology, up to Quad CrossFireX |
Storage | Southbridge
- 6 x SATA 3Gb/s
- Intel® Matrix Storage Technology with RAID 0, 1, 5, 10 support
Marvell 88SE6121
- 1 x UltraDMA 133/100/66 for up to 2 PATA devices
- 1 x External SATA 3Gb/s port (SATA On-the-Go)
Silicon Image Sil5723 (Drive Xpert Technology)
- 2 x SATA 3Gb/s
- Supports EZ Backup and Super Speed functions
*Drive Xpert function is available only when the hard disk drives are set as data drives. |
LAN | Dual Gigabit LAN controllers
Marvell 88E8056/88E8001® Gigabit LAN controller featuring AI NET2, Teaming, Redundant |
Wireless LAN | ASUS WiFi-AP @n
- 300Mbps* IEEE 802.11n (Draft) and backwards compatible with IEEE 802.11g / b
- Software Access Point mode
*300Mbps is IEEE 802.11n draft specification. Actual throughput varies depending on the wireless environment and other parameters |
Audio | ADI® AD2000B 8-channel High Definition Audio CODEC
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
- ASUS Noise-Filtering |
IEEE 1394 | LSI®L-FW3227 controller supports 2 x IEEE 1394a ports(one at mid-board; one at back panel) |
USB | Max. 10 USB2.0/1.1 ports(4 ports at mid-board, 6 ports at back panel) |
This board is a few months old and does not fit in my Antec Case. This is the reason for selling it.
The board is in like new condition and is something to see. It comes with all accessories like
cables, backing plate, Asus Fan, User Manuals and Drivers Disk.
