| CPU | Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU |
| Chipset | Intel® H67(B3) |
| Memory | 2 x DIMM, Max. 16GB, DDR3 1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* According to Intel® SPEC, the Max. 32GB memory capacity can be supported with DIMMs of 8GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard. |
| Graphic | Integrated Graphics Processor
Multi-VGA output support : HDMI/DVI/RGB ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 2048 x 1536 @ 75 Hz |
| Expansion Slots | 1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCI |
| Storage | Intel® H67(B3) chipset :
2 x SATA 6Gb/s port(s), gray
4 x SATA 3Gb/s port(s), blue
Support Raid 0, 1, 5, 10 |
| LAN | Realtek® 8112L, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek® ALC 887 8-Channel High Definition Audio CODEC *1
- Supports : Multi-streaming |
| USB Ports | Built-in Controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Built-in Controller :
12 x USB 2.0 port(s) (4 at back panel, black, 8 at mid-board) |
| Special Features | GPU Boost
ASUS Exclusive Features :
- MemOK!
- Anti-Surge
ASUS Quiet Thermal Solution :
- ASUS Q-Fan 2
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS MyLogo 2 |

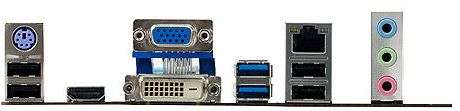

| Back I/O Ports | 1 x PS/2 mouse (green)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.0
4 x USB 2.0
3 x Audio jack(s) |
| Internal I/O Ports | 4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
2 x SATA 6Gb/s connector(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) |
| Accessories | User's manual
I/O Shield
1 x SATA 3Gb/s cable(s)
1 x SATA 6Gb/s cable(s) |
| BIOS | 32 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a |
| Manageability | WOL, PXE, PME Wake Up, WOR by Ring |
| Support Disc | Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update |
| Form Factor | uATX Form Factor
9.6 inch x 8.4 inch ( 24.4 cm x 21.3 cm ) |
