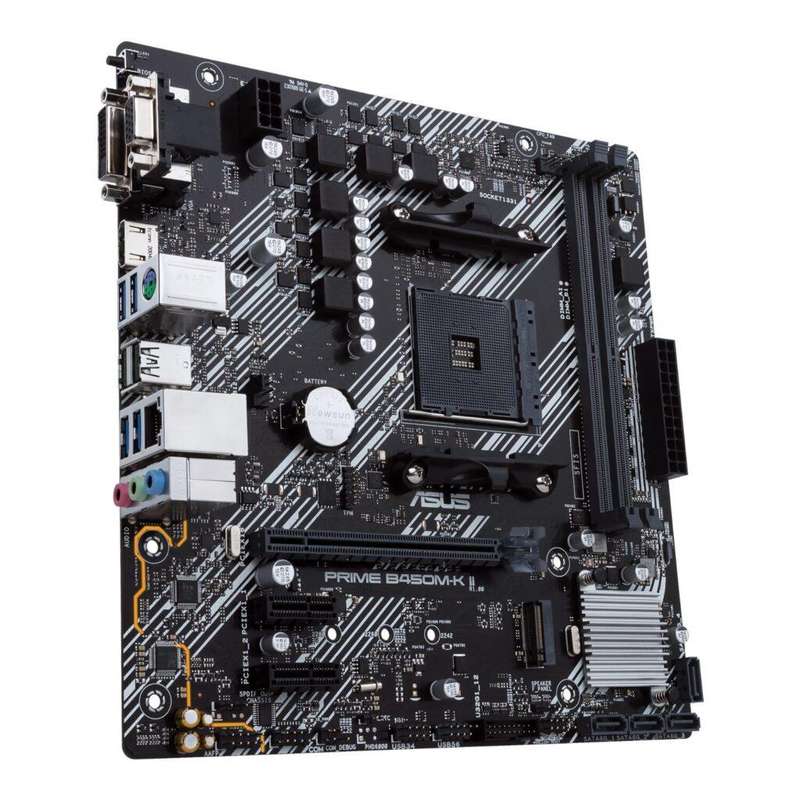

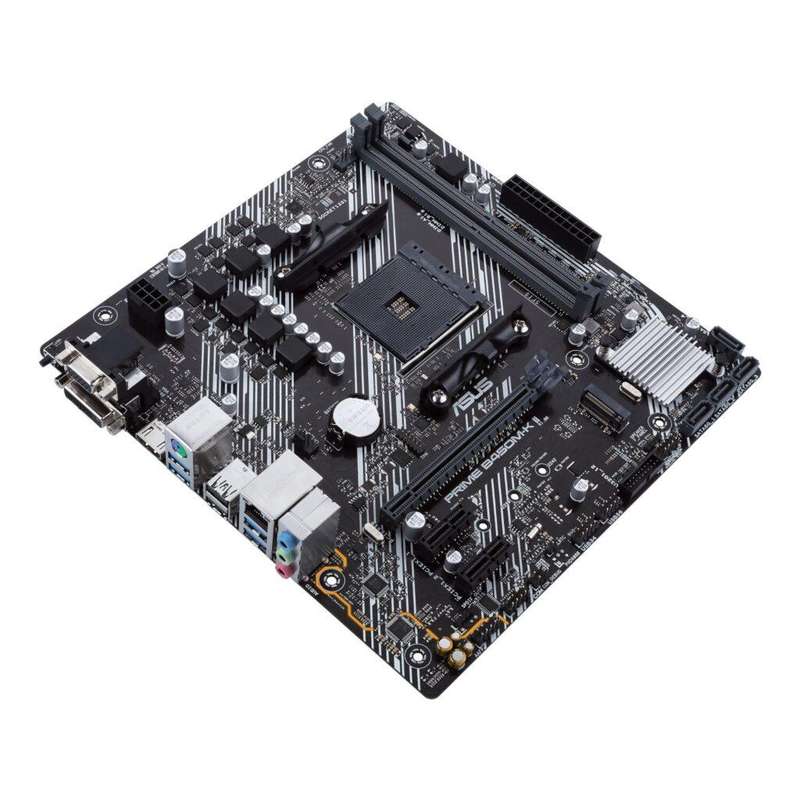

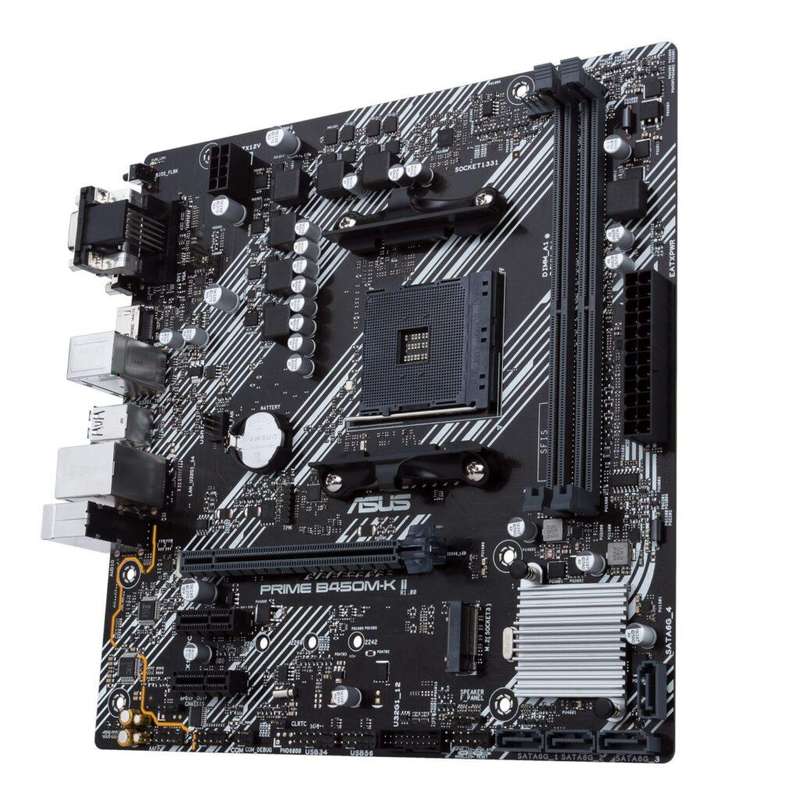

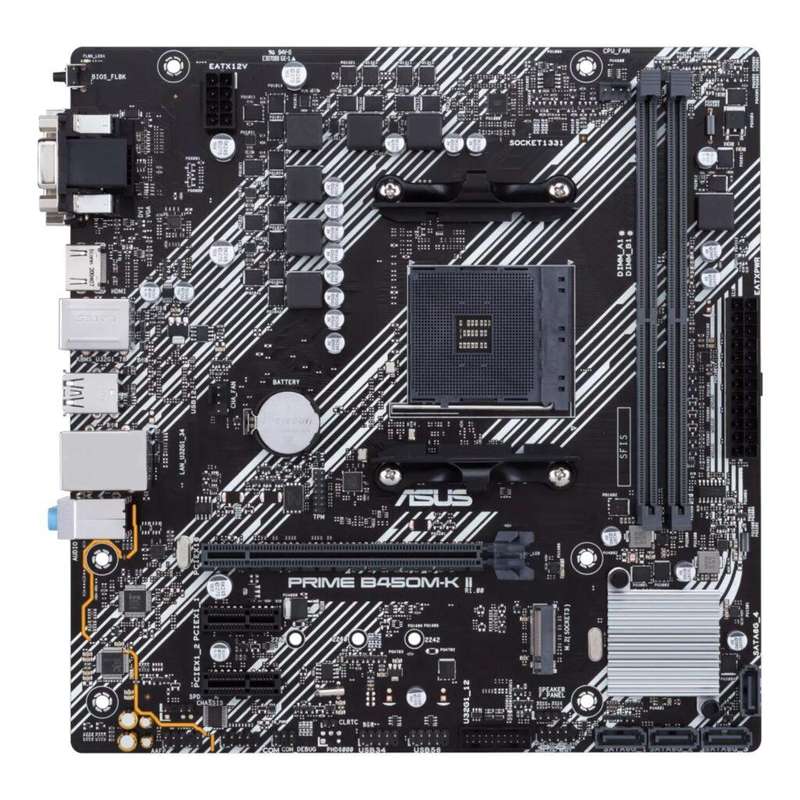

ASUS PRIME B450M-K II mATX Motherboard AM4, DDR4, HDMI, M.2, USB3.2
SPECIFICATIONS:
CPU:
AMD Socket AM4 for 3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
AMD B450 Chipset
Memory:
2 x DIMM, Max. 64GB, DDR4 4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, Un-buffered Memory
Dual Channel Memory Architecture
1 x D-Sub
1 x DVI-D
1 x HDMI2.0b
Expansion Slots:
3rd/2nd/1st Gen AMD Ryzen Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 slot (supports x8 mode)
Athlon with Radeon Vega Graphics Processors
1 x PCIe 3.0 x16 (supports x4 mode)
AMD B450 Chipset
2 x PCIe 2.0 x1 slots
Storage:
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
3rd/2nd/1st Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Athlon with Radeon Vega Graphics Processors
M.2 slot (Key M), type 2242/2260/2280 (supports SATA mode)
AMD B450 Chipset
4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Ethernet: 1 x Realtek RTL8111H 1Gb Ethernet
USB:
Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports an additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-bit/192 kHz playback
LED-illuminated audio trace path design
Premium Japanese audio capacitors
Dedicated audio PCB layers

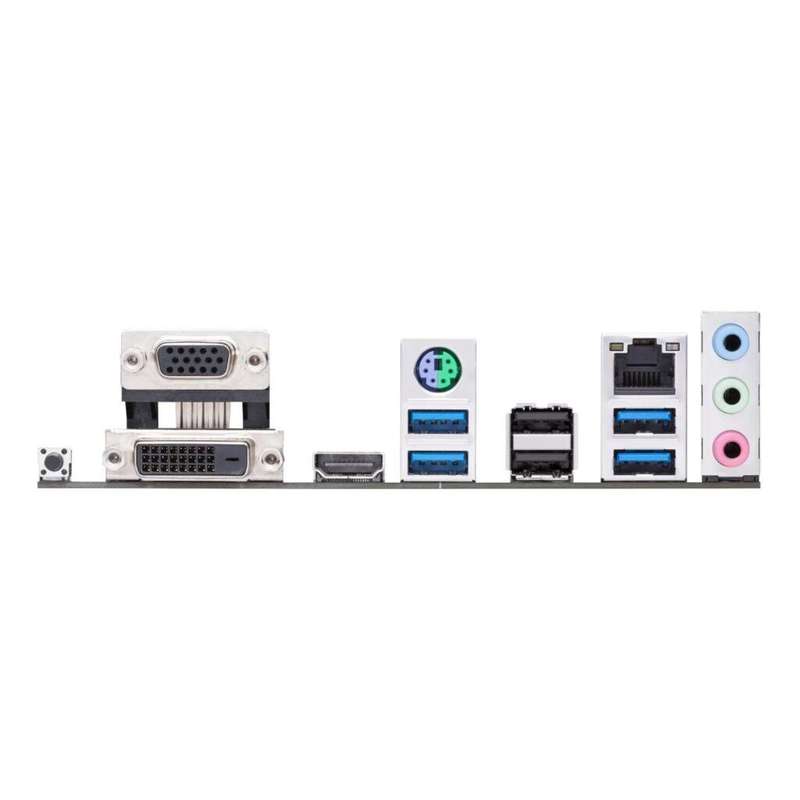

Back Panel I/O Ports:
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors:
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 header supports an additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features:
ASUS 5X PROTECTION III
ASUS DIGI+ VRM
ASUS LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot Core
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-Slot
ASUS Thermal Solution
Aluminium heatsink design
ASUS EZ DIY
BIOS FlashBack button
BIOS FlashBack LED
ASUS Lighting Control
Software Features:
ASUS Exclusive Software
Armoury Crate
AI Suite 3
Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
PC Cleaner
EZ update
System Information
ASUS CPU-Z
AI Charger
ASUS EZ Installer
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
BIOS:
256 Mb Flash ROM
UEFI AMI BIOS

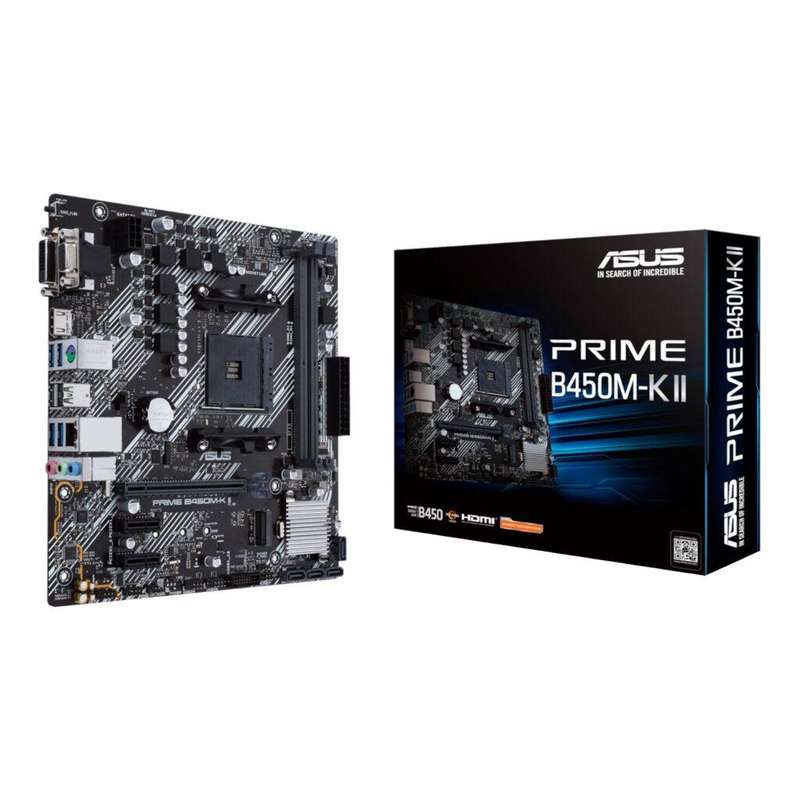

WHATS IN THE BOX:
ASUS PRIME B450M-K II mATX Motherboard x1
SATA 6Gb/s cables x2
I/O Shield x1
M.2 ANCHOR x1
Support DVD x1
User manual x1
