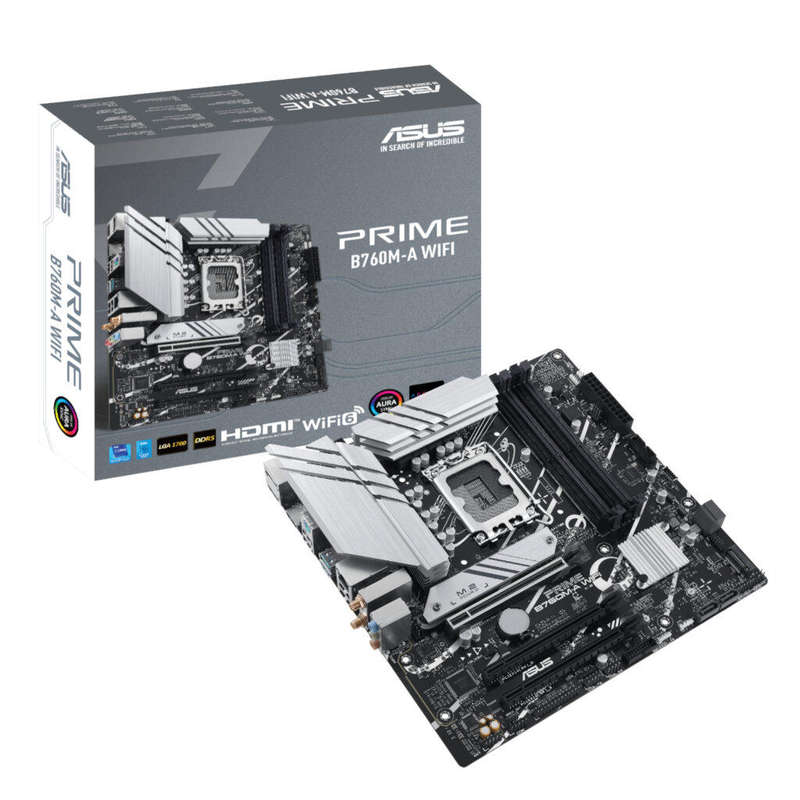

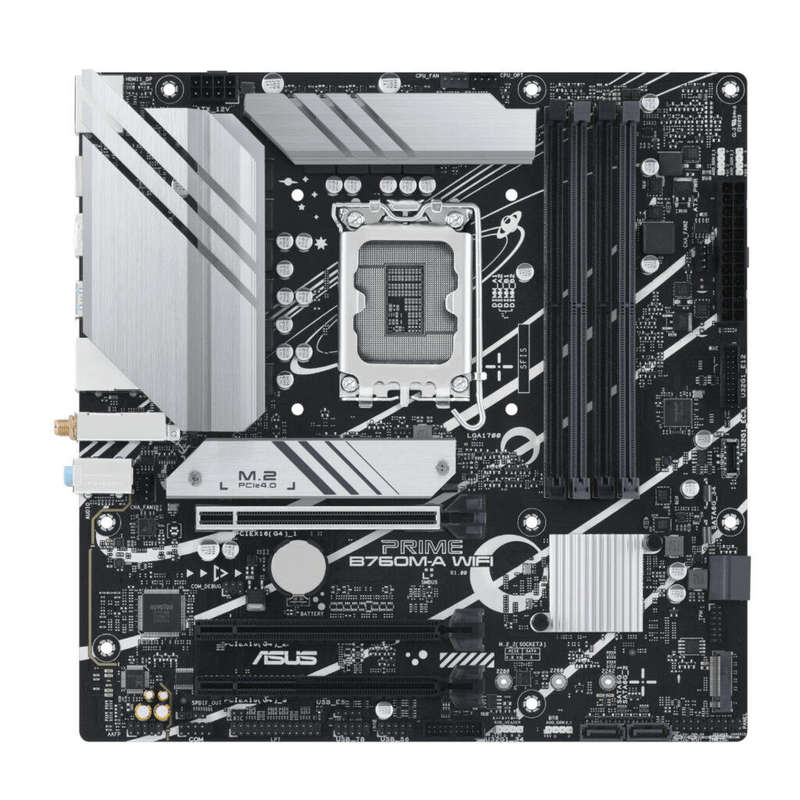

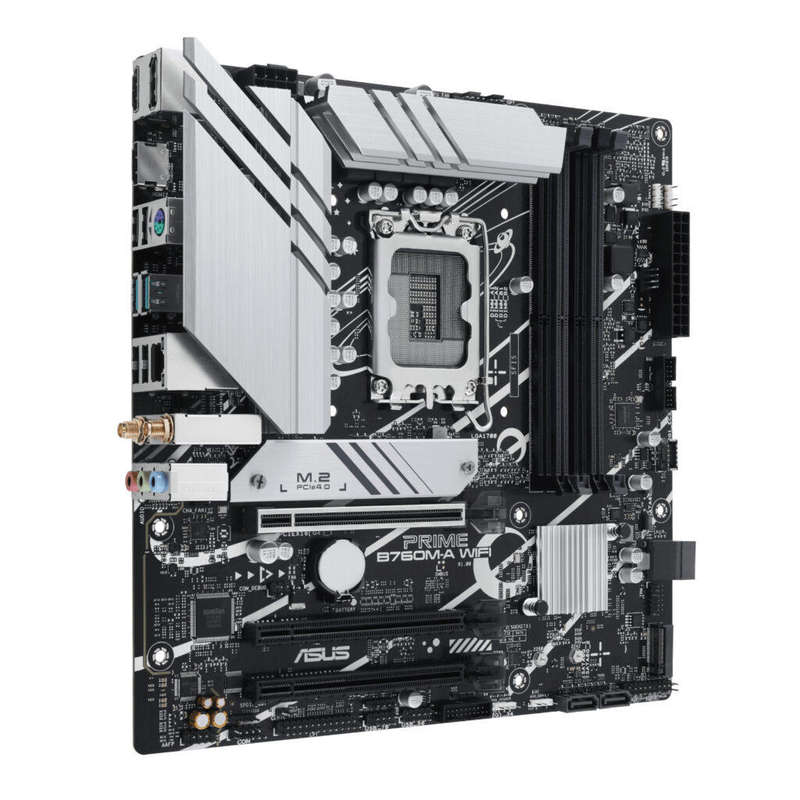

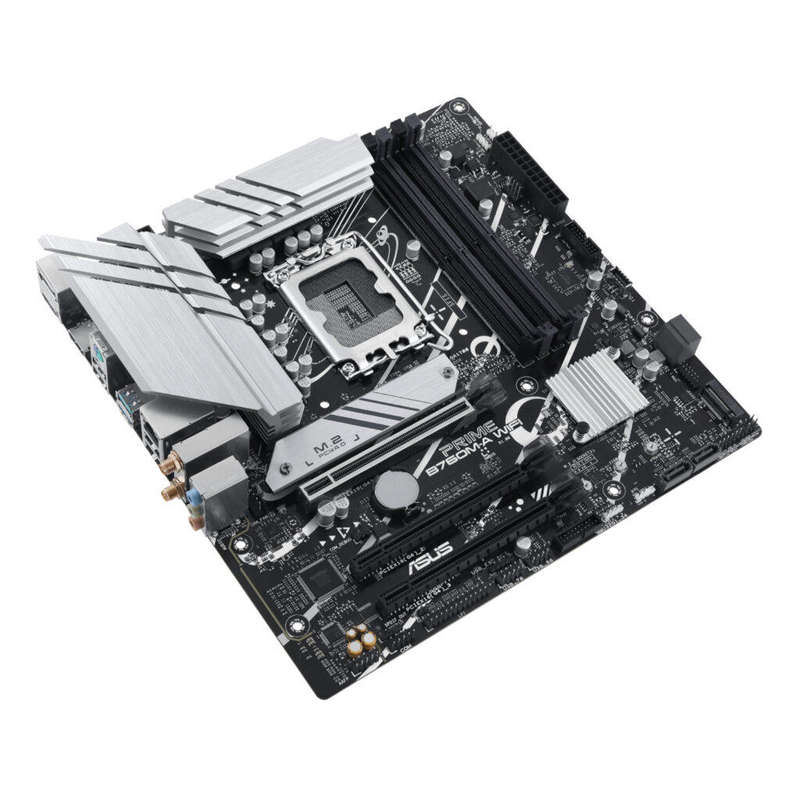

Asus PRIME B760M-A WIFI Intel LGA1700 M-ATX Motherboard

FEATURES:

Micro-ATX Form Factor

Intel® B760 Chipset

Supports Intel® 13th and 12th Gen Desktop Processors

Support for DDR5 up to 7200+MT/s, AEMPIII

PCIe 4.0 support for graphics cards

Wi-Fi 6 and 2.5Gb Ethernet support for faster data transfer

SPECIFICATIONS:

Socket: Intel Socket LGA1700

CPU: Supports Intel® 13th and 12th Gen Intel® Desktop Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors

Chipset: Intel® B760 Chipset

DDR5 Memory: Support DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, ASUS OptiMem II supported

Memory Channel: Dual

DIMM Slots: 4

Max Memory (GB): 192

PCI-E 4.0 x16: 1

PCI-E 4.0 x1: 1

SATA 6G: 4

M.2 Slot: 2

RAID: Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

LAN: Realtek 2.5Gb Ethernet

Wireless and Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2

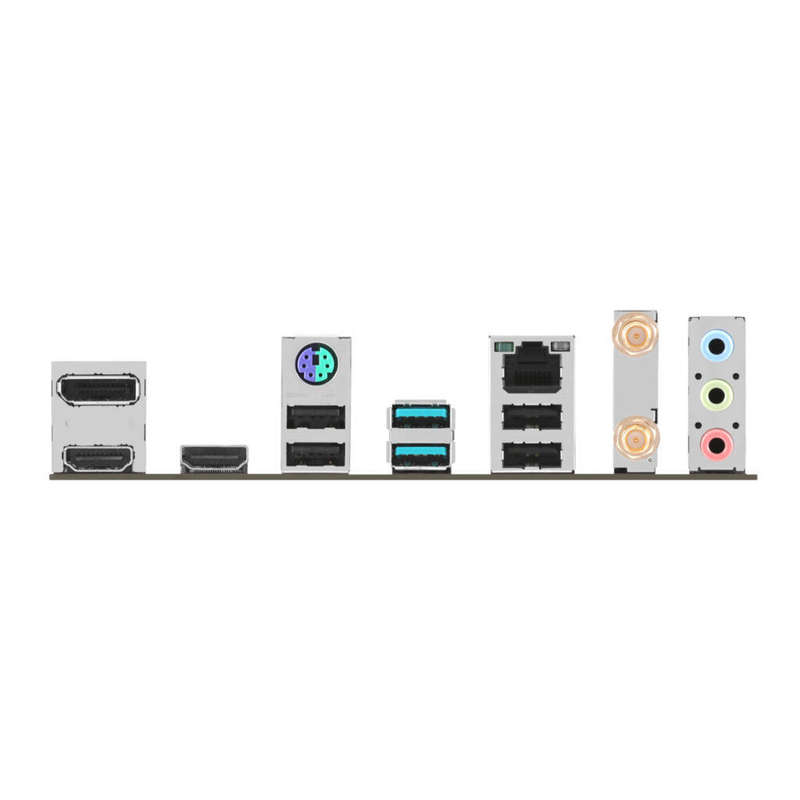

USB Ports Rear:

2 x USB 3.2 Gen 2 ports (2 x Type-A )

4 x USB 2.0 ports (4 x Type-A)

USB Ports Front:

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 2.0 headers support 4 additional USB 2.0 ports

1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC

HDMI: 2

DisplayPort: 1

DirectX: 12

Form Factor: Micro-ATX

Operating System: Support for Windows® 11, Windows® 10 64-bit

WHATS IN THE BOX:

Asus PRIME B760M-A WIFI Intel LGA1700 M-ATX Motherboard Black x1

SATA Cables x2

Asus Wi-Fi Adjustable Antenna x1

I/O Shield x1

M.2 Rubber Package x1

Screw Package for M.2 SSD x1

User Guide x1
