FEATURES:
ATX Form Factor
AMD B840 Chipset
Supports AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Support for DDR5 up to 7600+MT/s, AEMP supported
PCIe 4.0 support for graphics cards
Wi-Fi 6E and 2.5Gb Ethernet support for faster data transfer
Aura Sync RGB Lighting
SPECIFICATIONS:
Socket: AM5
CPU: Supports AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B840 Chipset
DDR5 Memory: Support DDR5 up to 7600+MT/s (OC) Non-ECC, Un-buffered Memory, ASUS Enhanced Memory Profile (AEMP)
Memory Channel: Dual
DIMM Slots: 4
Max Memory (GB): 256
PCI-E 4.0 x16: 1
PCI-E 3.0 x16: 2
PCI-E 3.0 x1: 1
SATA 6G: 4
M.2 Slot: 3
LAN: Realtek 2.5Gb Ethernet, ASUS LANGuard
Wireless and Bluetooth: Wi-Fi 6E, Bluetooth v5.3

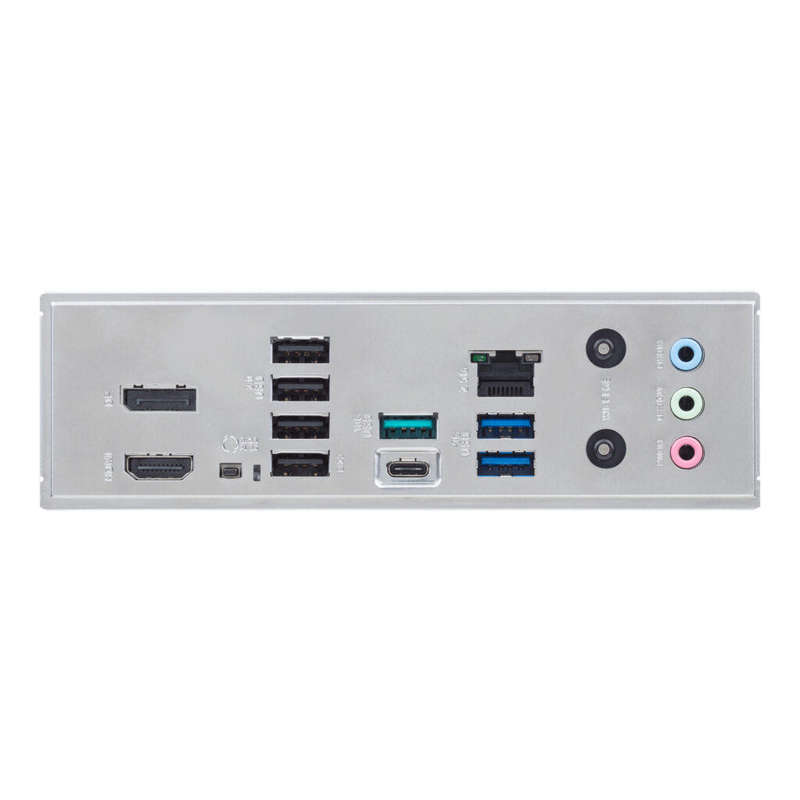

USB Ports Rear:
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
USB Ports Front:
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
(USB Type-C® power delivery output: max. 5V/3A)
Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
HDMI: 1
DisplayPort: 1
DirectX: 12
Form Factor: ATX
Operating System: Support for Windows® 11, Windows® 10 64-bit
WHATS IN THE BOX:

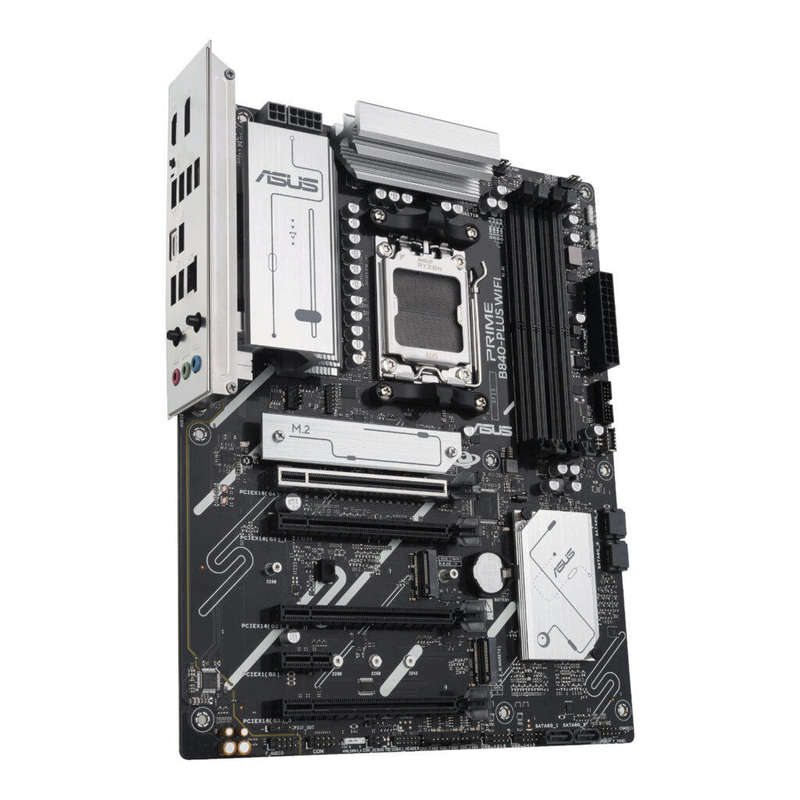

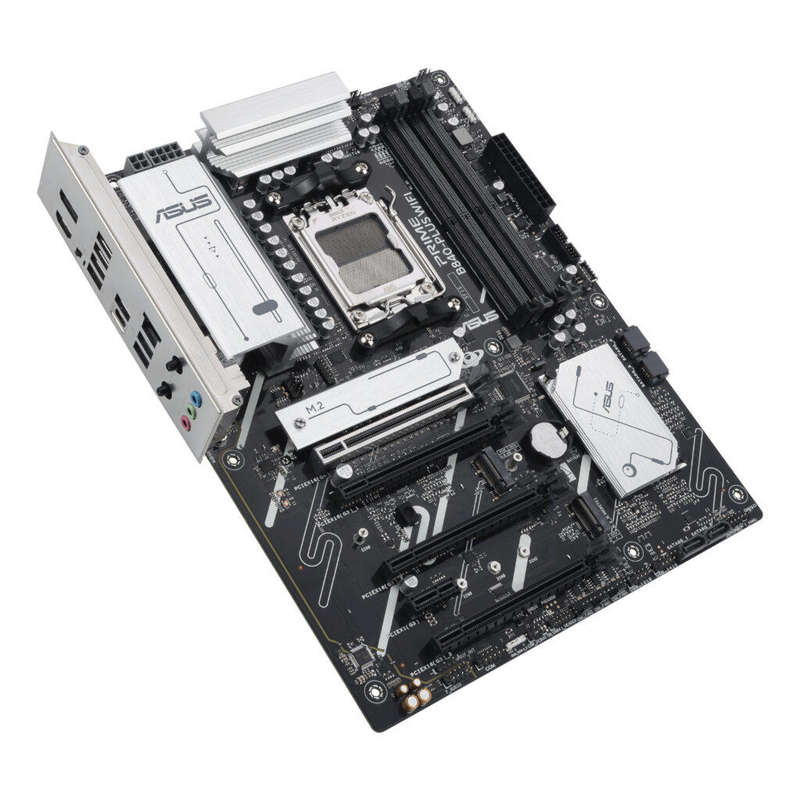

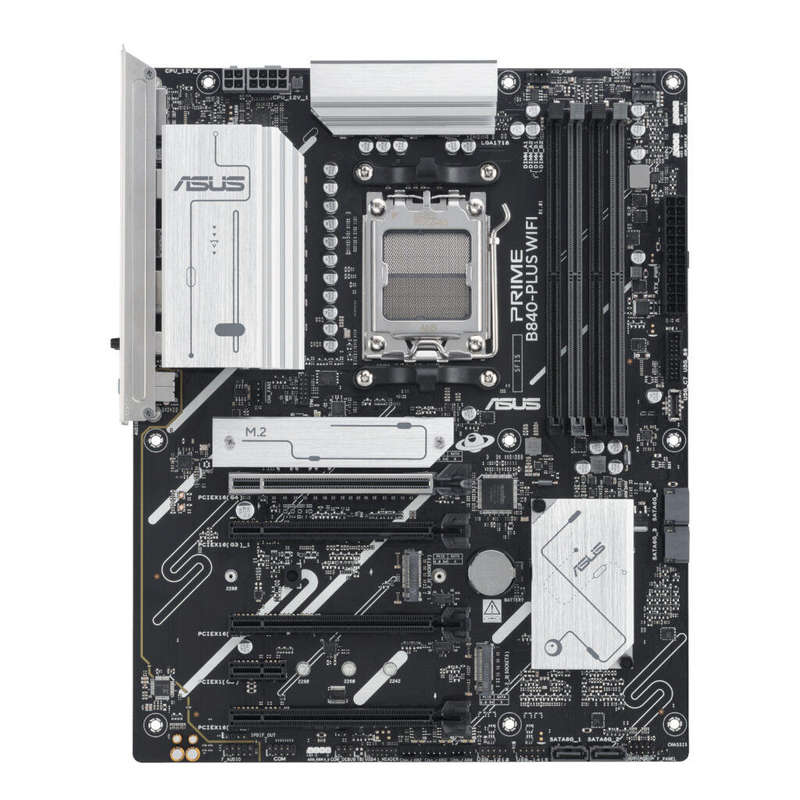

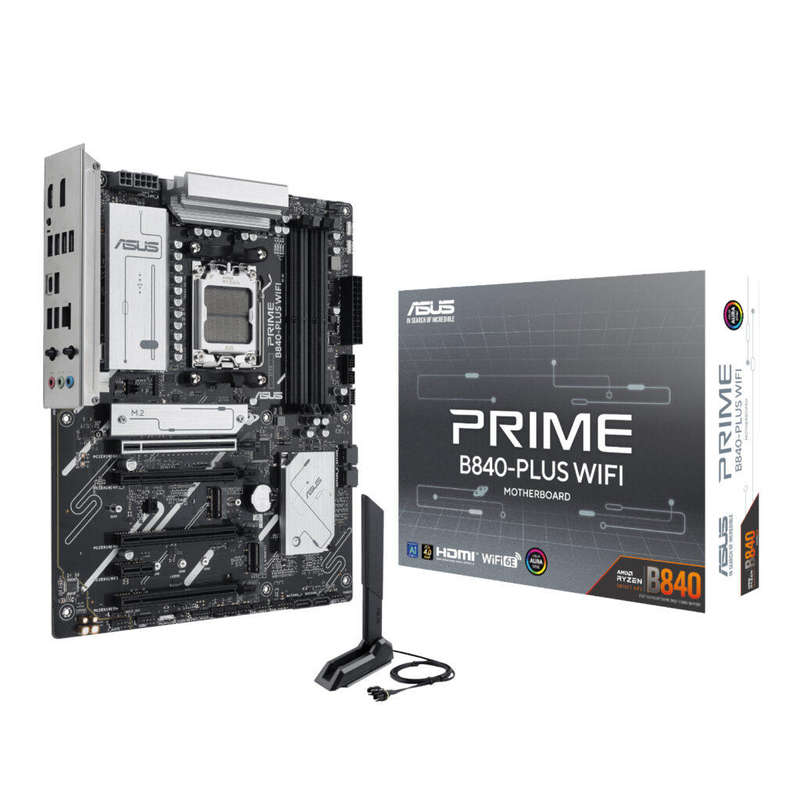

Asus PRIME B840-PLUS WIFI AMD AM5 ATX Gaming Motherboard Black x1
SATA Cables x2
Asus Wi-Fi Q-Antenna
M.2 Rubber Packages x1
Screw Packages for M.2 SSD x1
Quick Start Guide x1
