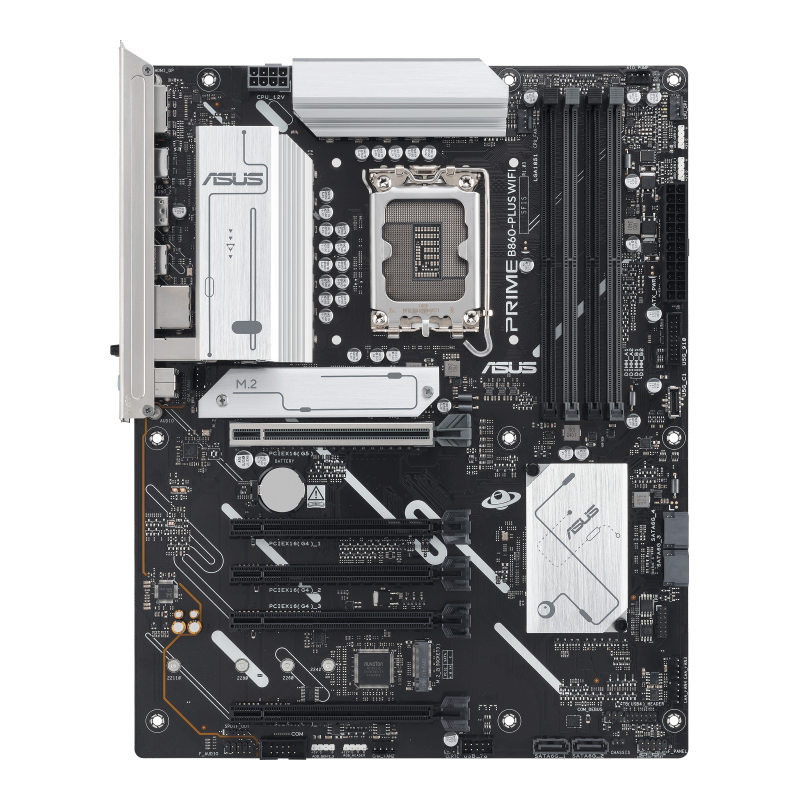

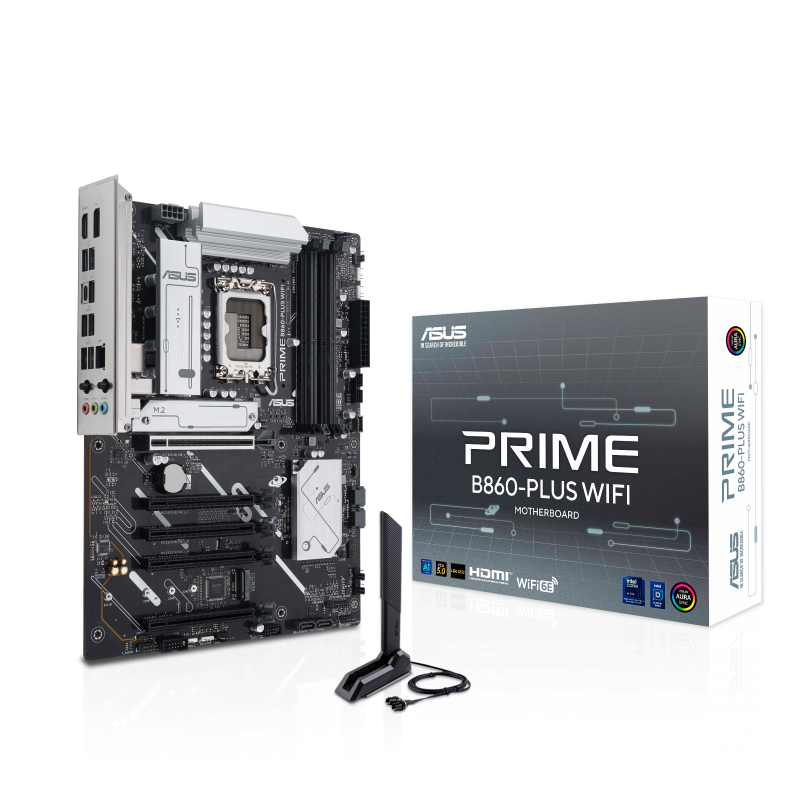

ASUS PRIME series motherboards are expertly engineered to unleash the fullpotential of the latest Intel® Core Ultra Processors (Series 2). Boasting arobust power design, comprehensive cooling solutions and intelligent tuningoptions, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builderswith a range of performance optimizations via intuitive software and firmwarefeatures. It's designed to be Advanced AI PC-ready, offering the power andconnectivity needed for demanding AI applications.Technical Specs:CPUSupport Intel® Core Ultra Processors (Series 2) , LGA1851Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel® B860 ChipsetMemory4 x DIMM slots, max. 256GB, DDR5Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM(CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III (AEMP III)* Supported memory types, data rate (speed), and number of DRAM modules varydepending on the CPU and memory configuration, for more information please referto CPU/Memory Support list under the Support tab of product information site orvisit https://www.asus.com/support/download-center/. Adjustments will be madebased on the specifications of mass-produced memory products available on themarket.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics1 x DisplayPort**1 x HDMI port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output***** Graphics specifications may vary between CPU types. Please referto www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.***** VGA resolution support depends on processors' or graphic cards'resolution.****** While installing the operating system, please ensure that your monitor isconnected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion SlotsIntel® Core Ultra Processors (Series 2)*1 x PCIe 5.0 x16 slot (PCIEX16(G5))Intel® B860 Chipset1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)- To ensure compatibility of the device installed, please referto https://www.asus.com/support/download-center/ for the list of supportedperipherals.StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core Ultra Processors (Series 2)*M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel® B860 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet1 x Realtek 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows11 or later** The Bluetooth® version may vary, please refer to the Wi-Fi modulemanufacturer's website for the latest specifications.USBRear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)2 x USB 10Gbps ports (2 x Type-A)1 x USB 5Gbps port (1 x Type-A)4 x USB 2.0 ports (4 x Type-A)Front USB (Total 5 ports)1 x USB 5Gbps connector (1 x USB Type-C®)1 x USB 5Gbps header supports additional 2 USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports*USB Type-C® power delivery output: max. 5V/3AAudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support7.1 Surround Sound audio output.Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)2 x USB 10Gbps ports (2 x Type-A)1 x USB 5Gbps port (1 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacksInternal I/O ConnectorsFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 10-1 pin Front System Panel header1 x Thunderbolt (USB4®) headerSpecial FeaturesASUS 5X PROTECTION III-DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage Protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shieldAura Sync- Aura RGB header- Addressable Gen 2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingASUS AI AdvisorASUS DriverHubASUS GlideXASUS CPU-ZAdobe Creative Cloud (Free Trial)Norton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyBIOS2 x 128 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSDDocumentation1 x Quick start guideOperating SystemWindows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)Form FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
