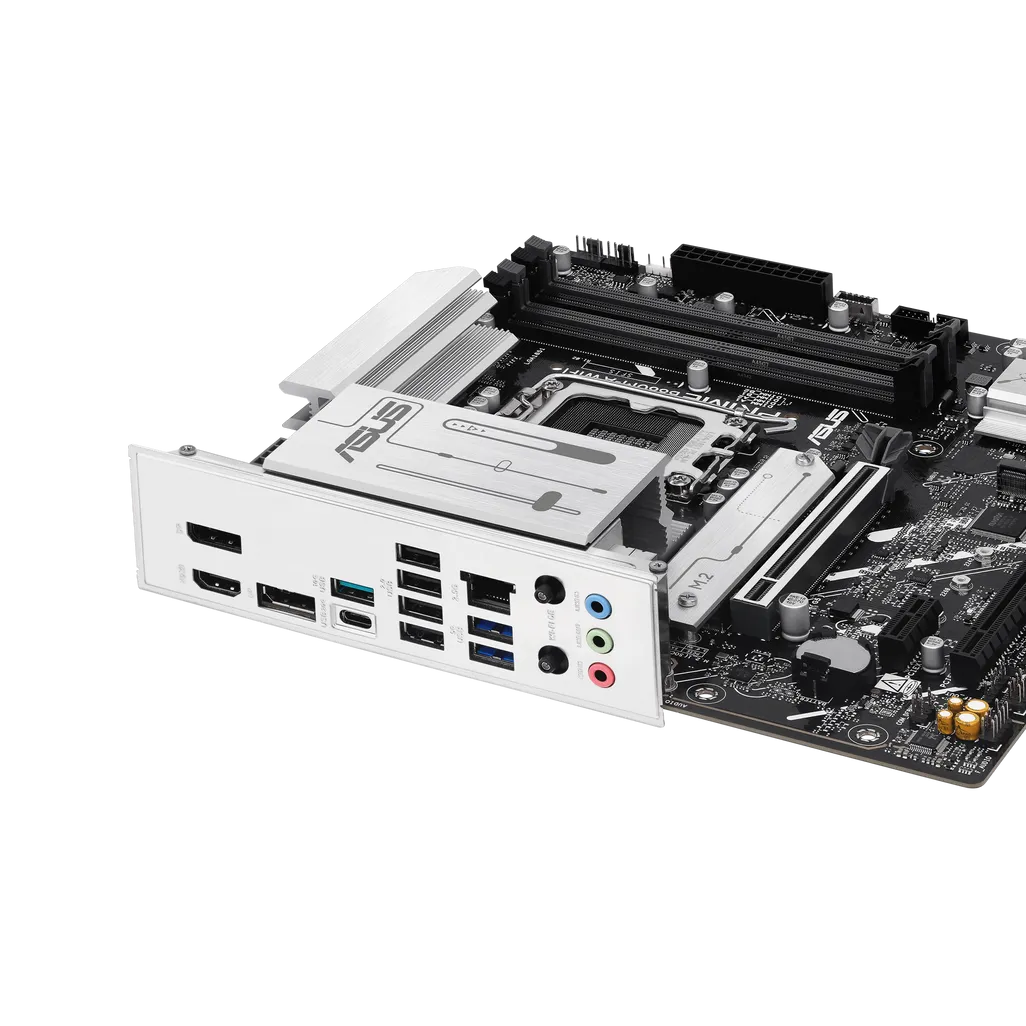

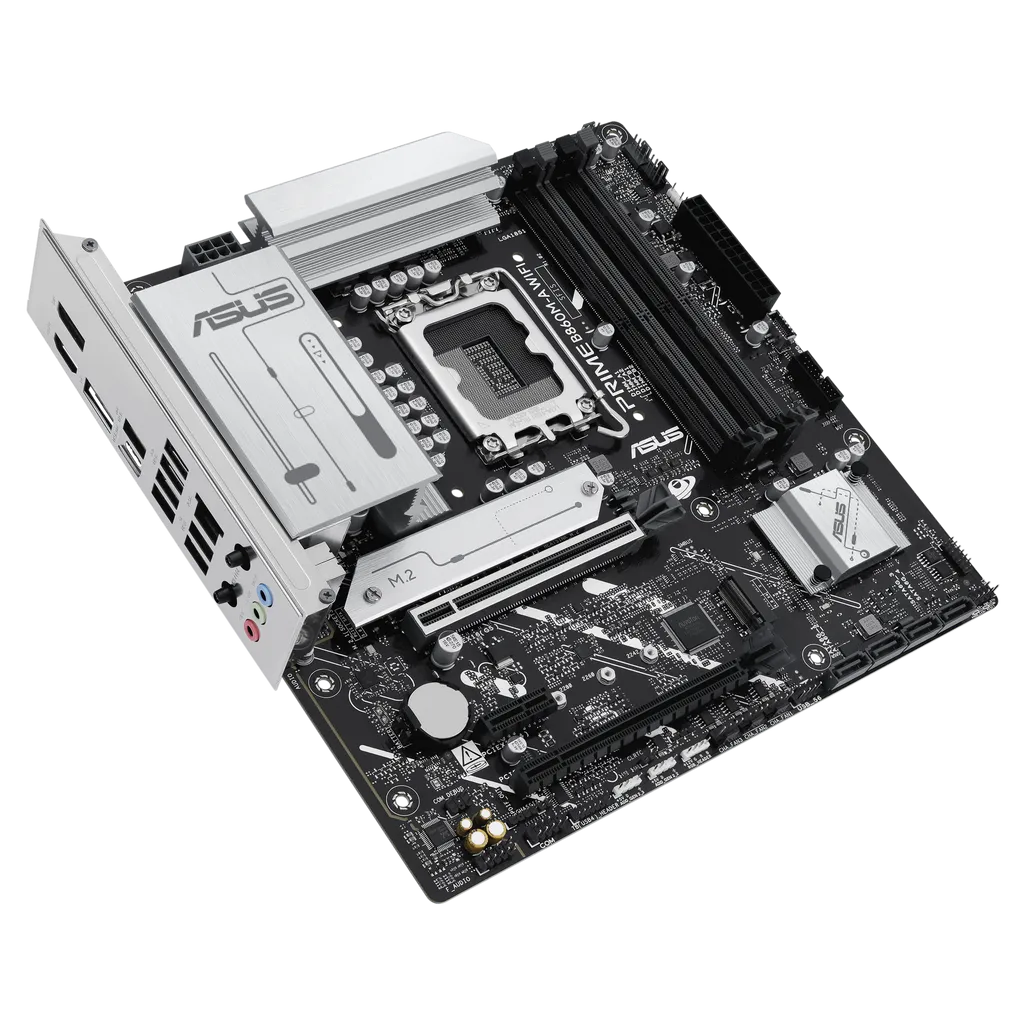

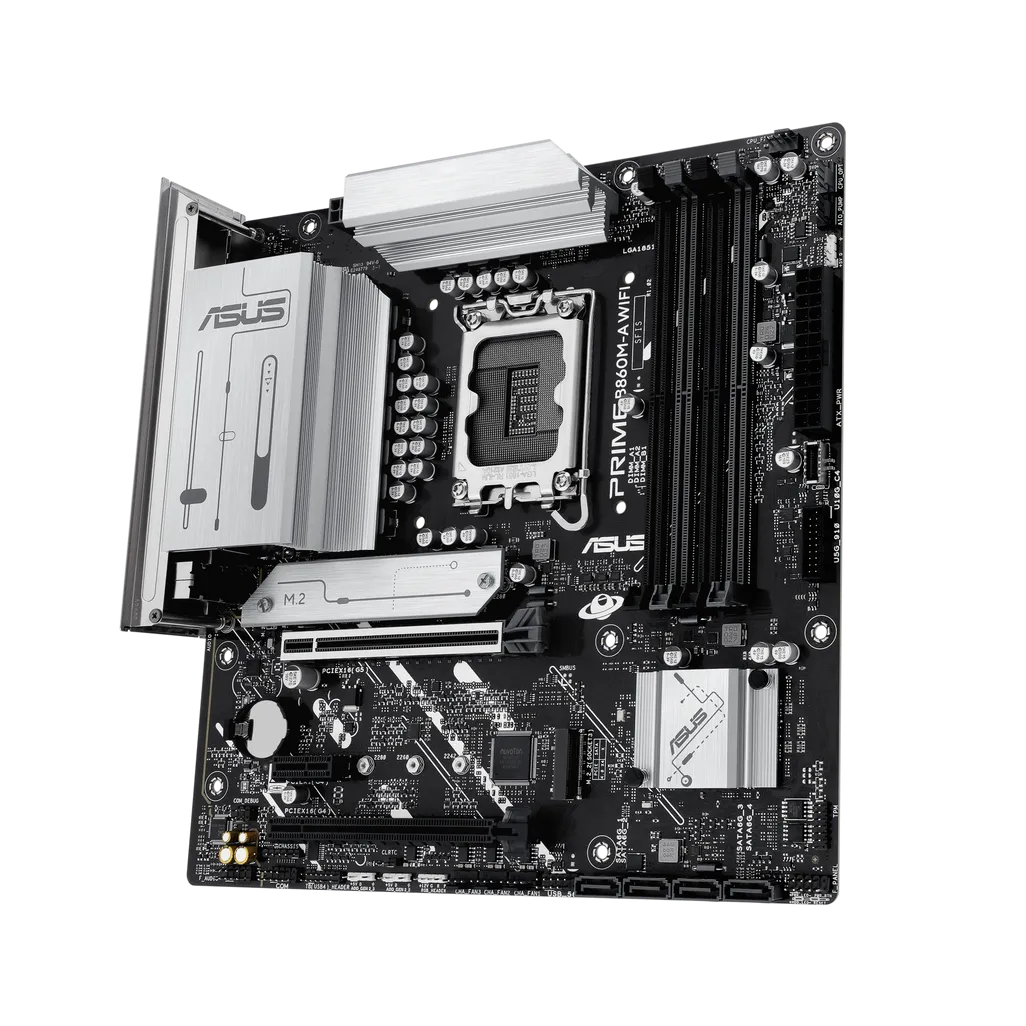

ASUS PRIME B860M-A WIFI INTEL LGA1700 MICRO-ATX MOTHERBOARD | DDR5 | WI-FI 6 |PCIE 5.0 | USB 3.2 GEN 2The ASUS PRIME B860M-A WIFI motherboard is expertly engineered to unleash thefull potential of Intel's latest processors. Designed for productivity,stability, and reliability, it delivers a perfect balance between performanceand value for modern PC builders.Featuring support for 13th and 14th Gen Intel Core processors, the PRIME B860M-AWIFI brings next-gen speed and connectivity with DDR5 memory, PCIe 5.0, andWi-Fi 6 for fast, stable wireless networking. With its Micro-ATX form factor, itfits easily into compact builds without compromising on expandability.Built with ASUS's renowned 5X Protection III hardware safeguards and AI Coolingtechnology, this board ensures efficient thermal performance and long-termreliability. It's perfect for professionals, gamers, and creators who need adependable foundation for their system.________________________________________________________________________________________________Tech Specs:CPUSupport Intel® Core Ultra Processors (Series 2) , LGA1851*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology3.0*Refer to https://www.asus.com/support/download-center/ for CPU support list.**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetIntel® B860 ChipsetMemory4 x DIMM slots, max. 256GB, DDR5Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM(CUDIMM)*Dual channel memory architectureDIMM FitSupports Intel® Extreme Memory Profile (XMP) memory moduleASUS Enhanced Memory Profile III(AEMPIII)*Supported memory types, data rate (speed), and number of DRAM modules varydepending on the CPU and memory configuration, for more information please referto CPU/Memory Support list under the Support tab of product information site orvisit https://www.asus.com/support/download-center/.* Adjustments will be made based on the specifications of mass-produced memoryproducts available on the market.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.Graphics2 x DisplayPort**1 x HDMI port***1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output** * Graphics specifications may vary between CPU types. Please referto www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.**** Supports max. 4K@120Hz as specified in DisplayPort 1.4.***** VGA resolution support depends on processors' or graphic cards'resolution.******While installing the operating system, please ensure that your monitor isconnected to the HDMI port on the back I/O panel or to a discrete graphics card.Expansion SlotsIntel® Core Ultra Processors(series 2)1 x PCIe 5.0 x16 slotIntel® B860 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot- To ensure compatibility of the device installed, please referto https://www.asus.com/support/download-center/ for the list of supportedperipherals.StorageTotal supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel® Core Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)Intel®B860 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.Ethernet1 x Realtek 2.5Gb EthernetASUS LANGuardWireless & BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11ax)Supports 2.4/5/6GHz frequency band*Bluetooth® v5.3*** WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows11 or later** The Bluetooth® version may vary, please refer to the Wi-Fi modulemanufacturer's website for the latest specifications.USBRear USB (Total 8 ports)1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)1 x USB 10Gbps port (1 x Type-A )2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)**Front USB (Total 5 ports)1 x USB 10Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports*USB Type-C® power delivery output: max. 5V/3A**USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.AudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support7.1 Surround Sound audio output.Back Panel I/O Ports1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A )2 x DisplayPort1 x HDMI port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacksInternal I/O ConnectorsFan and Cooling Related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower Related1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connectorStorage Related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 10Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additionalUSB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front System Panel header1 x Thunderbolt (USB4®) headerSpecial FeaturesASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- LANGuard- Overvoltage protection- SafeSlot- Stainless-steel back I/OASUS Q-Design- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- ProCool- Pre-mounted I/O shieldAura Sync- Aura RGB header- Addressable Gen2 headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingASUS DriverHubASUS GlideXASUS CPU-ZNorton 360 for Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyBIOS256 (128+128) Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEAccessoriesCables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS WiFi Q-Antenna1 x M.2 rubber package1 x Screw package for M.2 SSDDocumentation1 x Quick start guideOperating SystemWindows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)Form Factormicro-ATX Form Factor9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
