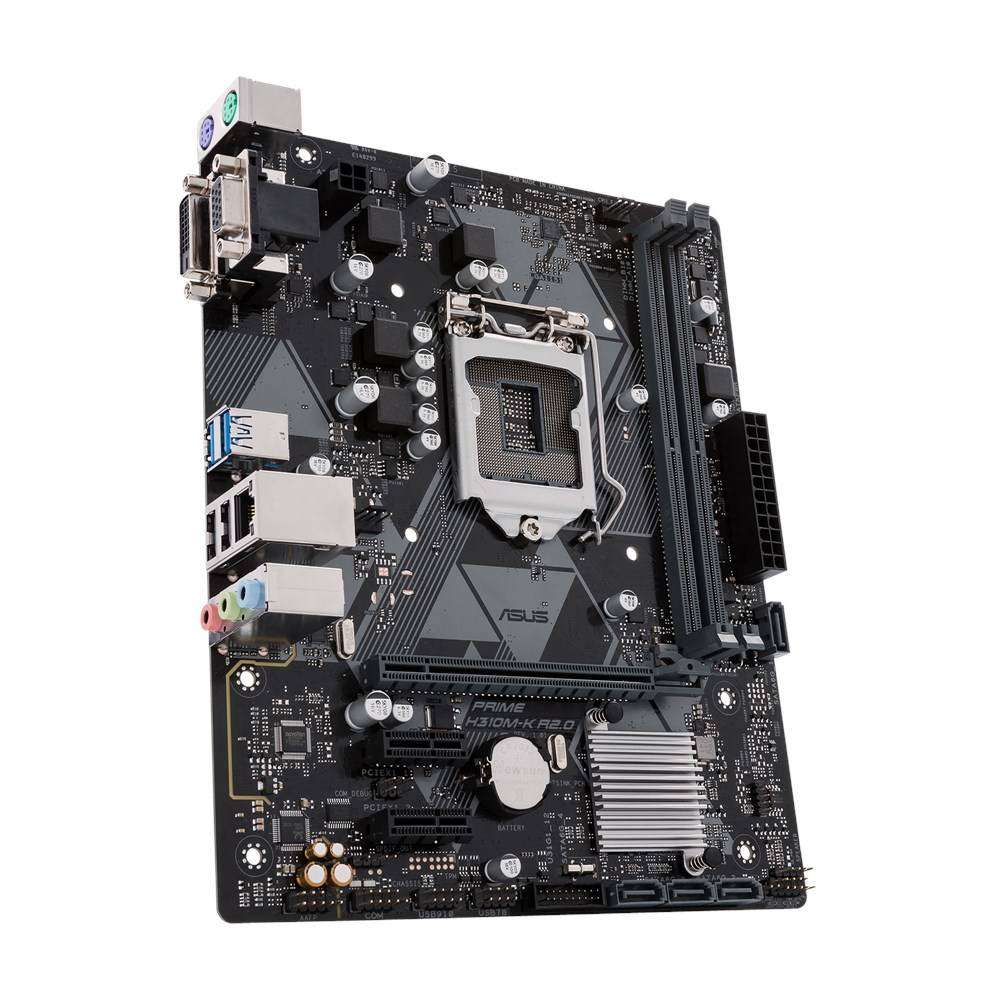

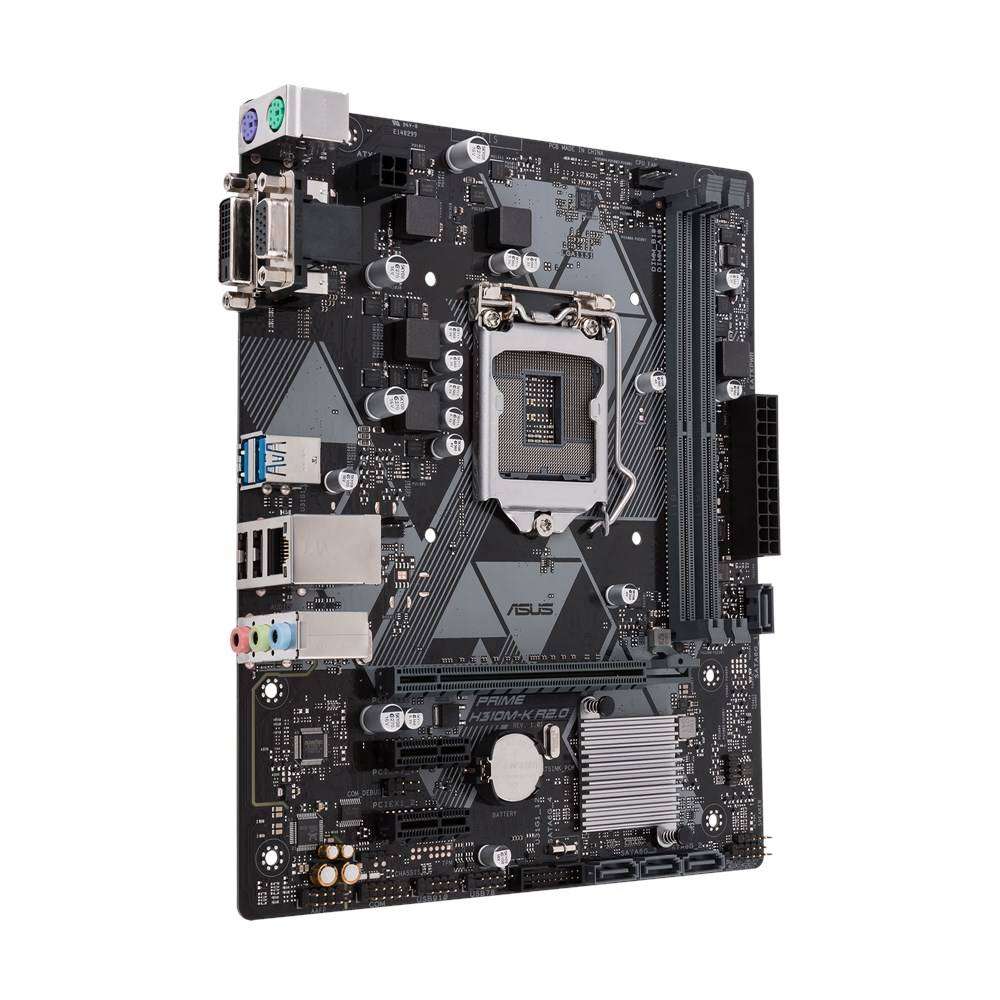

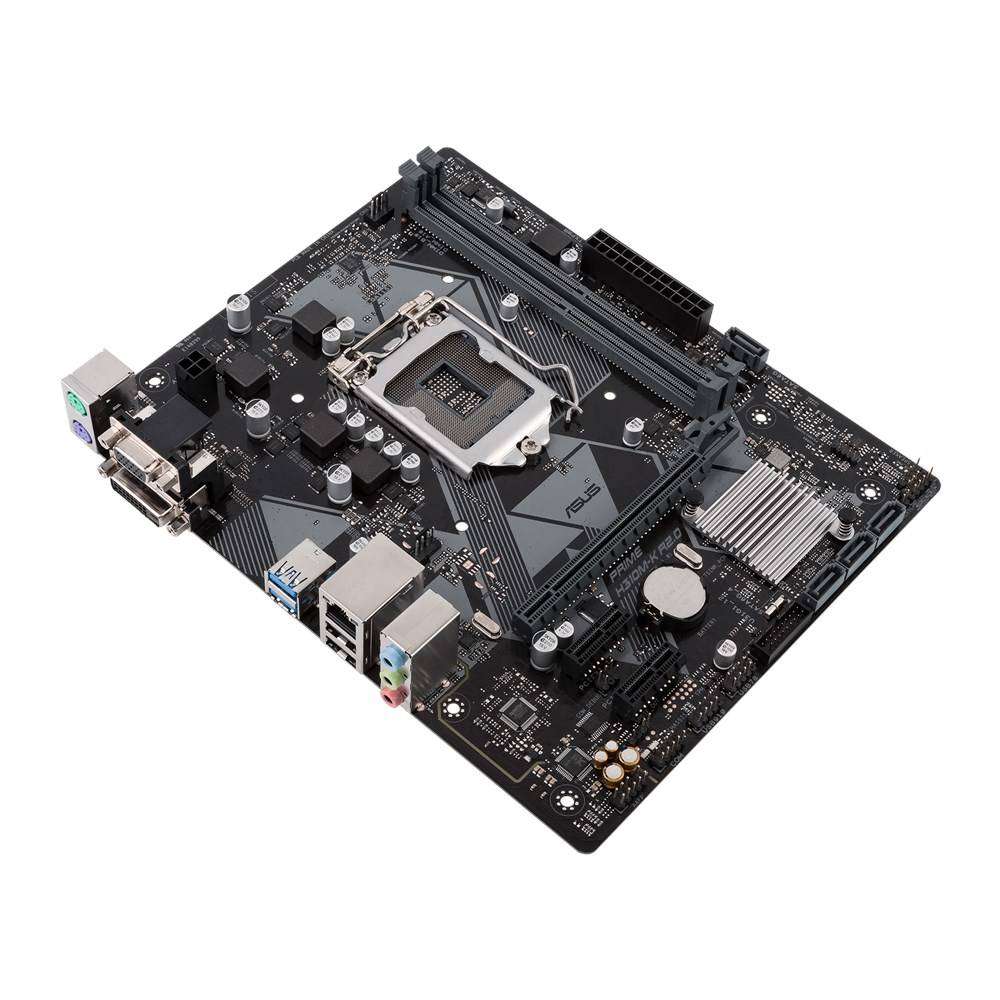

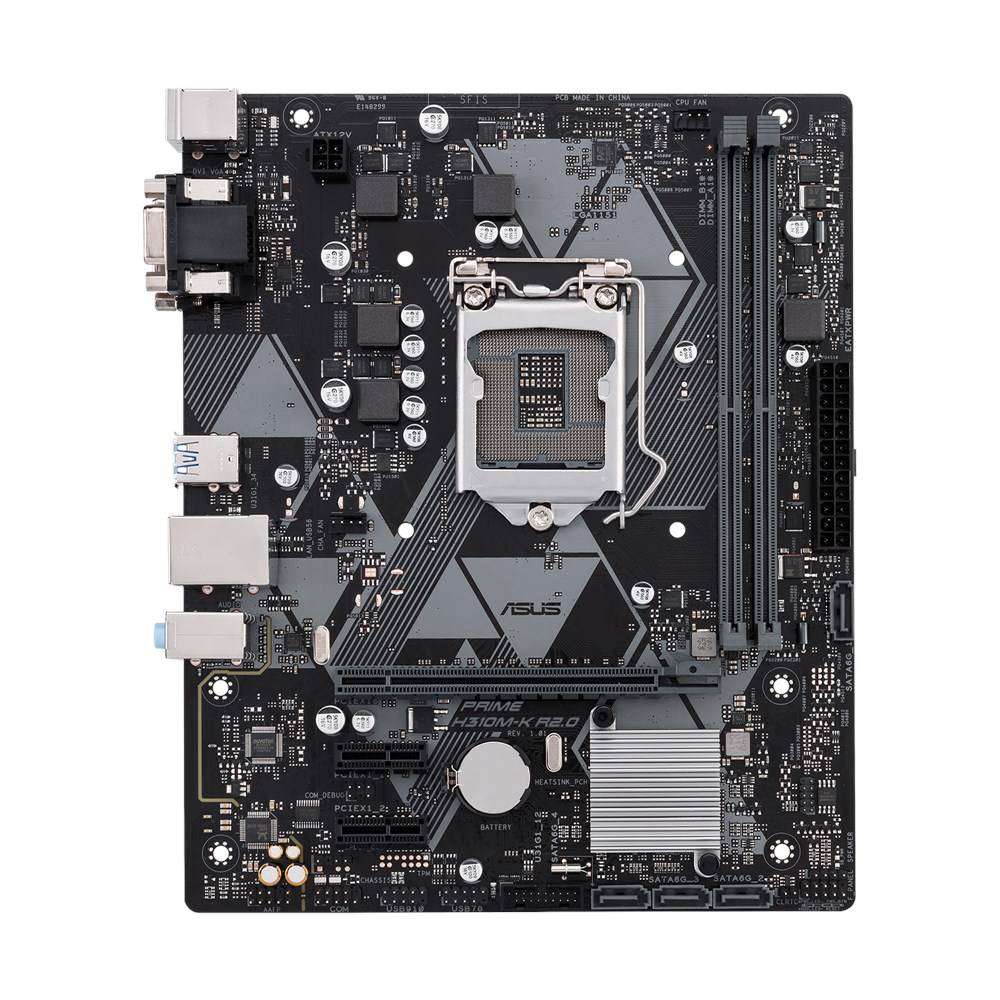

ASUS PRIME H310M-K Intel LGA-1151 mATX Motherboard
Features:
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
- Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
- 5X Protection III: Multiple hardware safeguards for all-round protection
PRIME:
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel Core processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordably.
Cooler by design:
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS. Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads. Each onboard CHA FAN header supports PWM and DC mode.
Media-acclaimed UEFI BIOS:
- The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business
USB 3.1 Gen 1 front-panel connector:
Future-proof connectivity: USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
Outstanding audio:
- Combined onboard features deliver elevated audio
- Intelligent design and premium hardware create audio quality unlike anything you've ever experienced!
Intel H310 chipset:
The Intel H310 is a single-chipset design that supports 8th Generation Intel Core LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6Gbps ports, and PCIe 2.0 lane-speed support, for faster data retrieval. Intel H310 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
Memory:
- 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
Graphic:
- Integrated Graphics Processor- Intel HD Graphics support
- Multi-VGA output support : DVI-D/D-Sub ports
Expansion Slots:
- 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
- 2 x PCIe 2.0 x1
Storage:
- Intel H310 Chipset: 4 x SATA 6Gb/s ports, gray,
Audio:
- Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports:
- Intel H310 Chipset: 4 x USB 3.1 Gen 1 up to 5Gbps ports (2 at back panel, blue, Type-A, 2 at mid-board)
- Intel H310 Chipset : 6 x USB 2.0/1.1 ports (2 at back panel, , 4 at mid-board)

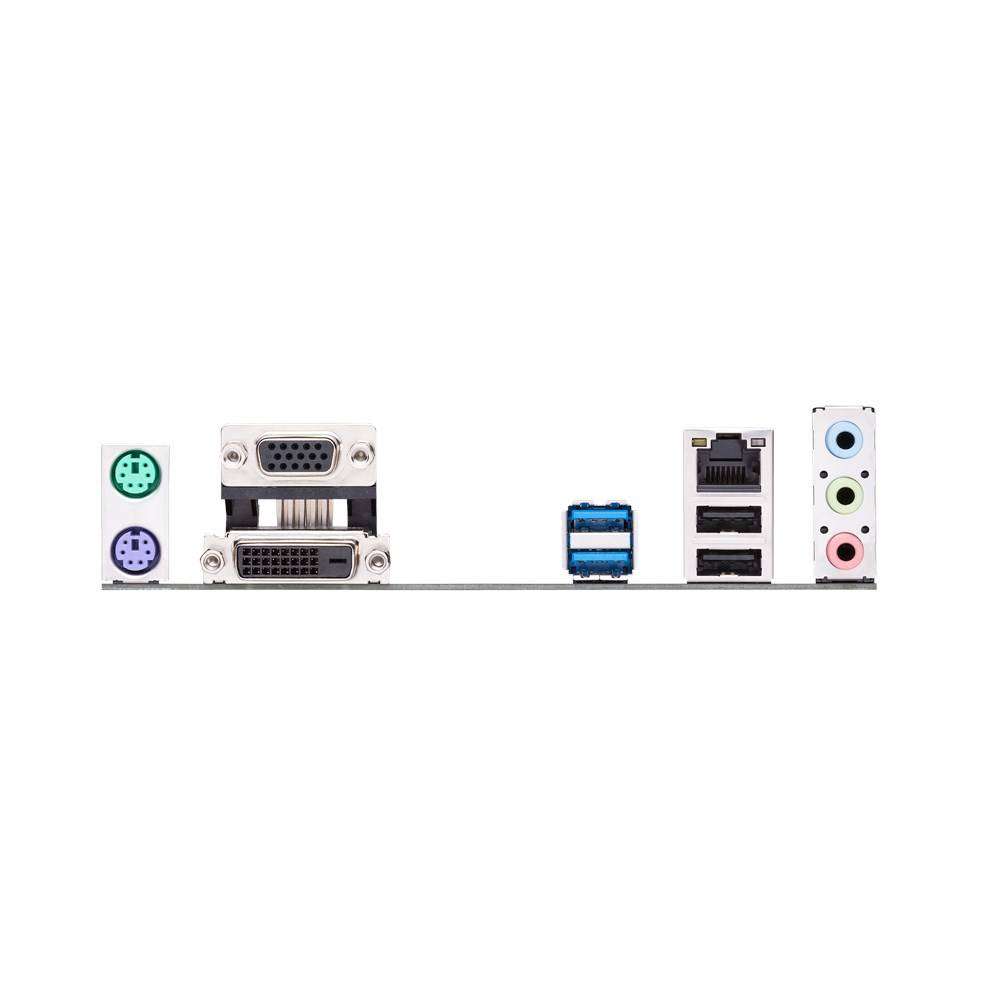

Back I/O Ports:
- 1 x PS/2 keyboard (purple)
- 1 x PS/2 mouse (green)
- 1 x DVI-D
- 1 x D-Sub
- 1 x LAN (RJ45) ports
- 2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
- 2 x USB 2.0
- 3 x Audio jacks
Internal I/O Ports:
- 1 x USB 3.1 Gen 1(up to 5Gbps) connectors supports additional 2 USB 3.1 Gen 1 ports (19-pin)
- 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
- 1 x COM ports connectors
- 4 x SATA 6Gb/s connectors
- 1 x CPU Fan connectors (1 x 4 -pin)
- 1 x Chassis Fan connectors (1 x 4 -pin)
- 1 x S/PDIF out headers
- 1 x 24-pin EATX Power connectors
- 1 x 4-pin ATX 12V Power connectors
- 1 x Front panel audio connectors (AAFP)
- 1 x Clear CMOS jumpers
- 1 x System panel connector
- 1 x Speaker connector
Form Factor:
- mATX Form Factor
- 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Specifications:
- Operating System: Windows 10 64-bit
- CPU: Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0
- Chipset: Intel H310
- LAN: Realtek RTL8111H, 1 x Gigabit LAN
What's in the box
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
