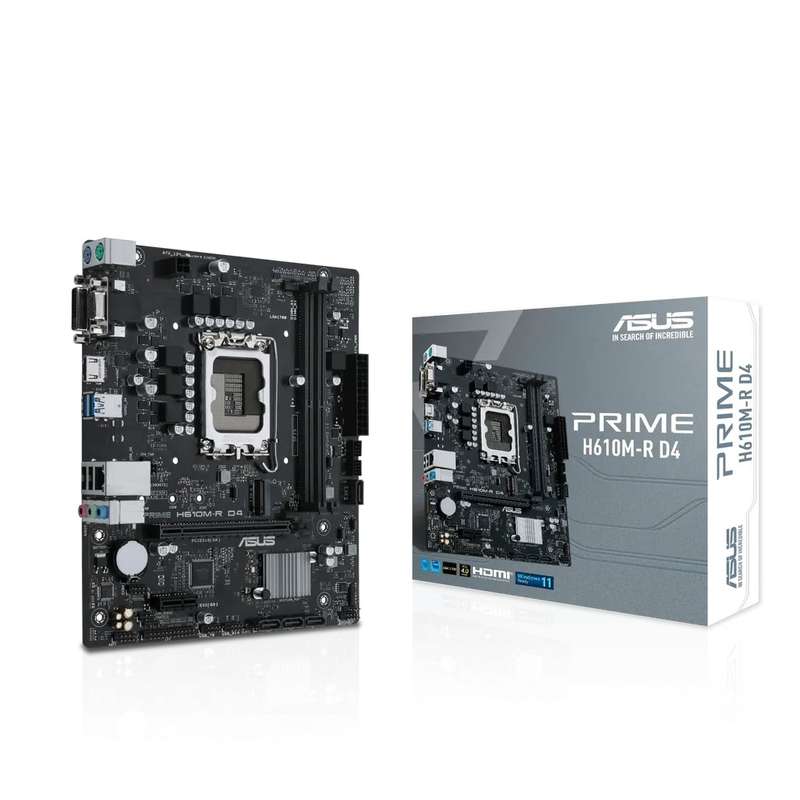

ASUS PRIME H610M-R D4, Intel, LGA 1700, Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel Pentium G, LGA 1700, DDR4-SDRAM, 64 GB
ASUS PRIME H610M-R D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A
Memory
| Maximum internal memory | 64 |
|---|
| Supported memory types | DDR4-SDRAM |
|---|
| Number of memory slots | 2 |
|---|
| Memory slots type | DIMM |
|---|
| Non-ECC | Y |
|---|
| Unbuffered memory | Y |
|---|
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 |
|---|
| Memory channels | Dual-channel |
|---|
Network
| Wi-Fi | N |
|---|
| Ethernet LAN | Y |
|---|
| Ethernet interface type | Gigabit Ethernet |
|---|
| Wake-on-LAN ready | Y |
|---|
Weight & dimensions
| Width | 226 |
|---|
| Width | 270 |
|---|
| Depth | 193 |
|---|
| Depth | 260 |
|---|
| Height | 51 |
|---|
Processor
| Processor manufacturer | Intel |
|---|
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium G |
|---|
| Processor socket | LGA 1700 |
|---|
| Supported processor sockets | LGA 1700 |
|---|
Graphics
| Parallel processing technology support | Not supported |
|---|
| Maximum resolution | 3840 x 2160 |
|---|
Features
| Component for | PC |
|---|
| Motherboard form factor | Micro ATX |
|---|
| Motherboard chipset family | Intel |
|---|
| Audio output channels | 7.1 |
|---|
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
|---|
| Motherboard chipset | Intel H610 |
|---|
| Harmonized System (HS) code | 84733020 |
|---|
Packaging content
| Cables included | SATA |
|---|
| Drivers included | Y |
|---|
Expansion slots
| Number of M.2 (M) slots | 1 |
|---|
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
|---|
| Number of chassis fan connectors | 1 |
|---|
| TPM connector | Y |
|---|
| Number of SATA III connectors | 4 |
|---|
| Front panel audio connector | Y |
|---|
| ATX Power connector (24-pin) | Y |
|---|
| CPU fan connector | Y |
|---|
| Chassis intrusion connector | Y |
|---|
| 12V power connector | Y |
|---|
| Audio connector | Y |
|---|
| Number of COM connectors | 1 |
|---|
Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|
| VGA (D-Sub) ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
|---|
| PS/2 ports quantity | 2 |
|---|
| HDMI ports quantity | 1 |
|---|
| DVI-D ports quantity | 1 |
|---|
| Microphone in | Y |
|---|
| USB connector type | USB Type-A |
|---|
| Headphone outputs | 3 |
|---|
| HDMI version | 2.1 |
|---|
BIOS
| BIOS type | UEFI AMI |
|---|
| BIOS memory size | 128 |
|---|
| Clear CMOS jumper | Y |
|---|
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|
| Supported storage drive interfaces | M.2,SATA III |
|---|
| Number of storage drives supported | 5 |
|---|
Logistics data
| Country of origin | China |
|---|
| Harmonized System (HS) code | 84733020 |
|---|
Packaging data
Other features
