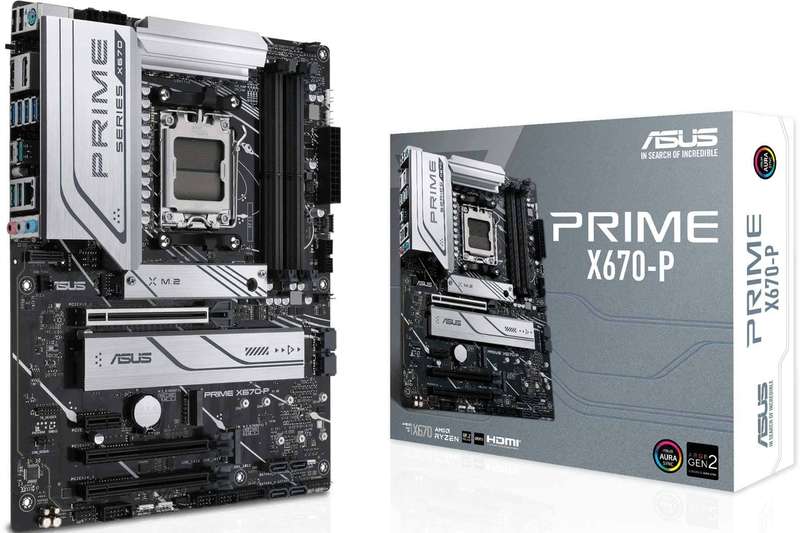

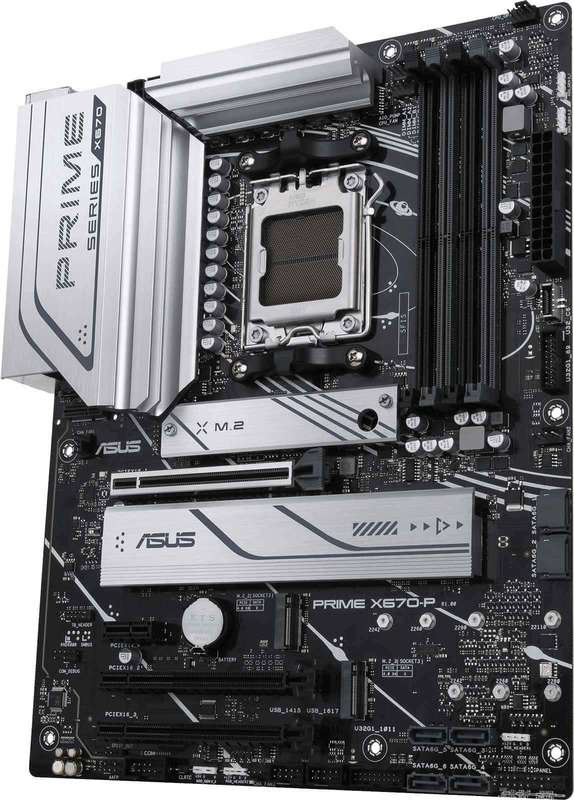

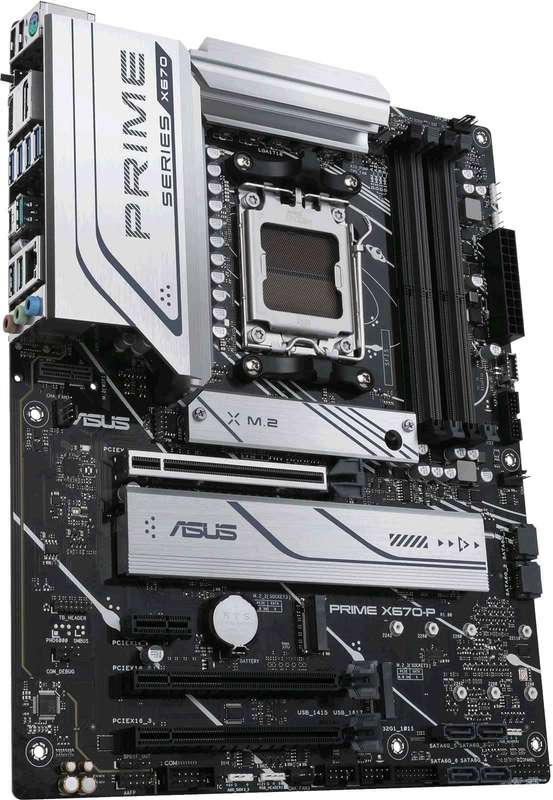

ASUS PRIME X670-P AMD X670 Ryzen Socket Socket AM5 ATX Desktop Motherboard

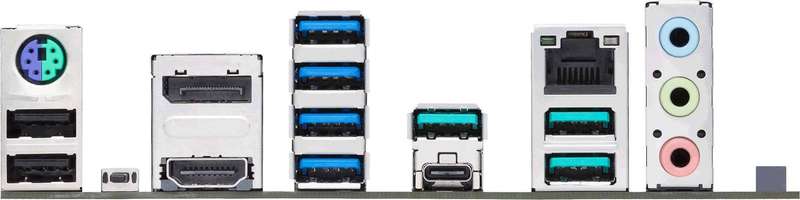

SPECIFICATIONS:Brand ASUSSeries PRIME X670-PModel 90MB1BU0-M0EAY0CPU AMD Socket AM5 For AMD Ryzen 7000 Series Desktop ProcessorsChipset AMD X670 ChipsetMemory 4x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC And Non-ECC, Un-Buffered Memory*Dual Channel Memory ArchitectureSupports AMD Extended Profiles For Overclocking (EXPO)OptiMem II* Supported Memory Types, Data Rate(Speed), And Number Of DRAM Modules Vary Depending On The CPU And Memory Configuration, For More Information Refer To Www.Asus.Com For Memory Support List.* Non-ECC, Un-Buffered DDR5 Memory Supports On-Die ECC Function.Graphics 1x DisplayPort**1x HDMI Port**** Graphics Specifications May Vary Between CPU Types.** Supports Max. 8K@60Hz As Specified In DisplayPort 1.4.*** Supports 4K@60Hz As Specified In HDMI 2.1.Expansion Slots AMD Ryzen 7000 Series Desktop Processors1 X PCIe 4.0 X16 Slot (Supports X16 Mode)AMD X670 Chipset2 X PCIe 4.0 X16 Slots (Support X4 Mode)1 X PCIe 3.0 X1 Slot*** Please Check The PCIe Bifurcation Table At https://www.asus.com/support/FAQ/1037507/.** The PCIe 3.0 X1 Slot Shares Bandwidth With The SATA6G_3/4 Ports. When A Device Is Installed On The PCIe 3.0 X1 Slot, The SATA6G_3/4 Ports Cannot Be Used.Storage Total Supports 3x M.2 Slots And 6x SATA 6Gb/S Ports*AMD Ryzen 7000 Series Desktop ProcessorsM.2_1 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 5.0 X4 Mode)M.2_2 Slot (Key M), Type 2242/2260/2280/22110 (Supports PCIe 4.0 X4 Mode)AMD X670 ChipsetM.2_3 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode)6x SATA 6Gb/S Ports*** AMD RAIDXpert2 Technology Supports Both NVMe RAID 0/1/10 And SATA RAID 0/1/10.** The PCIe 3.0 X1 Slot Shares Bandwidth With The SATA6G_3/4 Ports. When A Device Is Installed On The PCIe 3.0 X1 Slot, The SATA6G_3/4 Ports Cannot Be Used.Ethernet 1x Realtek 2.5Gb EthernetWireless & Bluetooth V-M.2 Slot Only (Key E, PCIe)** Wi-Fi Module is Sold Separately.USB Rear USB (Total 10 ports)1x USB 3.2 Gen 2x2 port (1 x USB Type-C)3x USB 3.2 Gen 2 ports (3 x Type-A)4x USB 3.2 Gen 1 ports (4 x Type-A)2x USB 2.0 ports (2 x Type-A)Front USB (Total 9 ports)1x USB 3.2 Gen 1 connector (supports USB Type-C)2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports2x USB 2.0 headers support additional 4 USB 2.0 portsAudio Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking- Supports Up To 24-Bit/192 KHz PlaybackAudio Features- Audio Shielding- Premium Audio Capacitors- Dedicated Audio PCB Layers* A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.Back Panel I/O Ports 1x USB 3.2 Gen 2x2 Port (1 X USB Type-C)3x USB 3.2 Gen 2 Ports (3 X Type-A)4x USB 3.2 Gen 1 Ports (4 X Type-A)2x USB 2.0 Ports (2 X Type-A)1x DisplayPort1x HDMI Port1x V-M.2 Slot (Key E)1x Realtek 2.5Gb Ethernet Port3x Audio Jacks1x BIOS FlashBack Button1x PS/2 Keyboard/Mouse Combo PortInternal I/O Connectors Fan And Cooling Related1x 4-Pin CPU Fan Header1x 4-Pin CPU OPT Fan Header1x 4-Pin AIO Pump Header3x 4-Pin Chassis Fan HeadersPower Related1x 24-Pin Main Power Connector1x 8-Pin 12V Power Connector1x 4-Pin 12V Power ConnectorStorage Related3x M.2 Slots (Key M)6x SATA 6Gb/S PortsUSB1x USB 3.2 Gen 1 Connector (Supports USB Type-C)2x USB 3.2 Gen 1 Headers Support Additional 4 USB 3.2 Gen 1 Ports2x USB 2.0 Headers Support Additional 4 USB 2.0 PortsMiscellaneous3x Addressable Gen 2 Headers2x Aura RGB Headers1x Clear CMOS Header1x COM Port Header1x Front Panel Audio Header (AAFP)1x S/PDIF Out Header1x SPI TPM Header (14-1pin)1x 20-5 Pin System Panel Header1x Thunderbolt (USB4) HeaderSpecial Features ASUS 5X PROTECTION III- DIGI VRM (- Digital Power Design With DrMOS)- ESD Guards- LANGuard- Overvoltage Protection- Safeslot Core- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- M.2 Heatsink- VRM Heatsink DesignASUS EZ DIY- BIOS FlashBack Button- BIOS FlashBack LED- ProCoolAura Sync- Aura RGB Headers- Addressable Gen 2 HeadersSoftware Features ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 with AI Cooling II- Power SavingAI Suite 3- TurboV EVO- DIGI VRM- PC CleanerASUS CPU-ZNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeBIOS 256 Mb Flash ROMUEFI AMI BIOSManageability WOL by PME, PXEAccessories Cables2x SATA 6Gb/S CablesMiscellaneous1x I/O Shield1x Rubber Package For M.22x Screw Packages For M.2 SSDDocumentation1x User GuideOperating System Windows 11Windows 10 64-bitForm Factor ATX Form Factor30.5cm x 24.4cm
