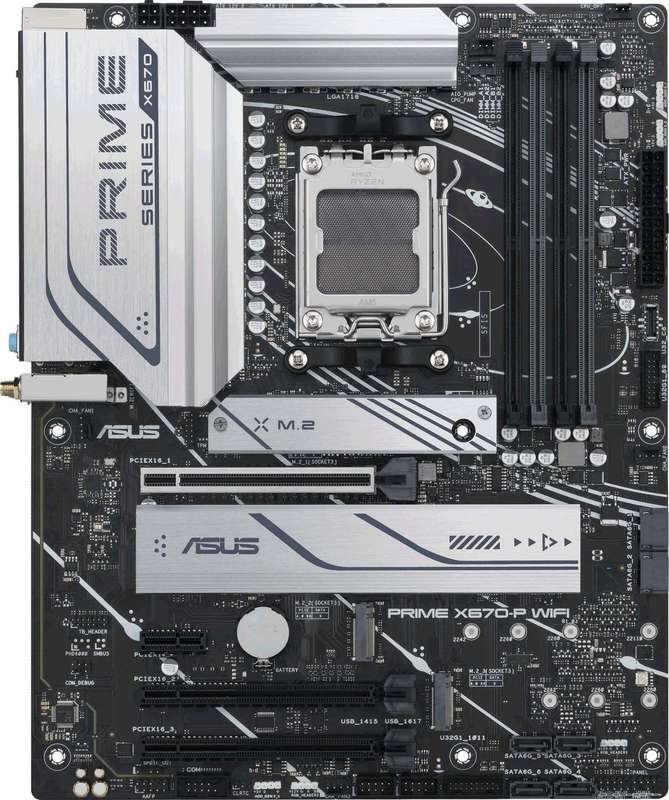

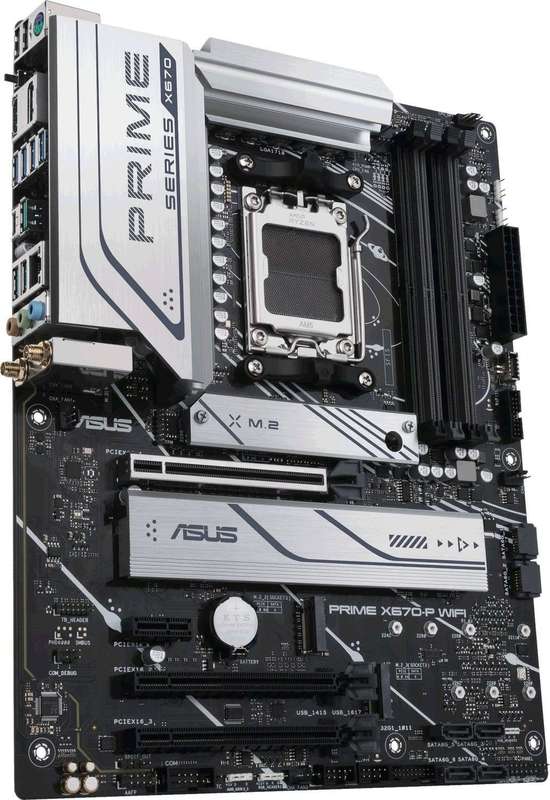

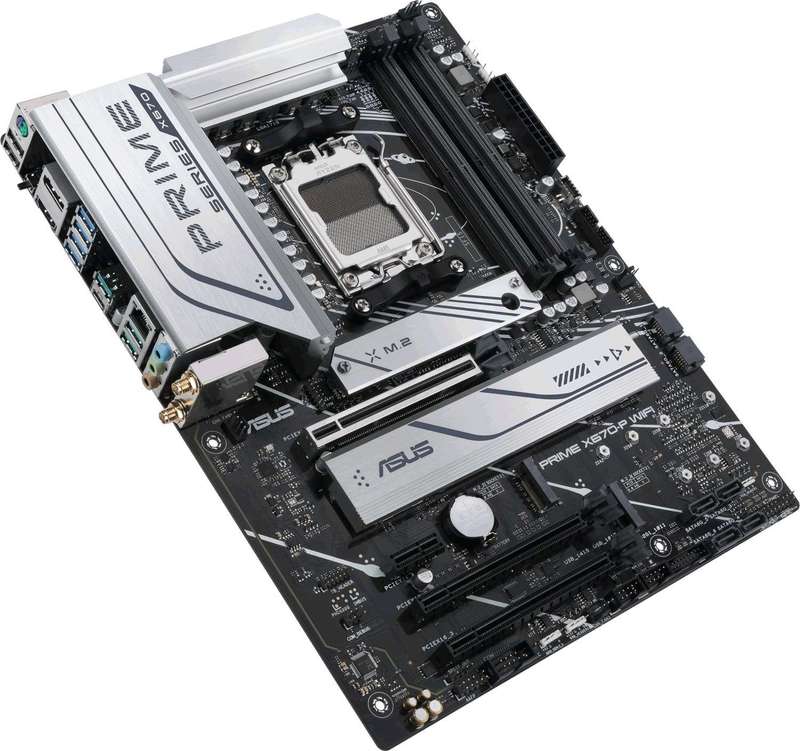

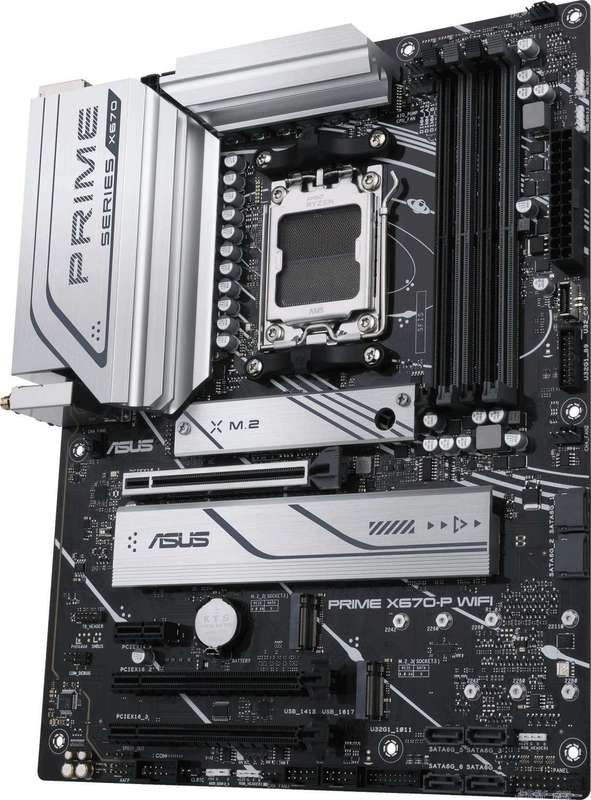

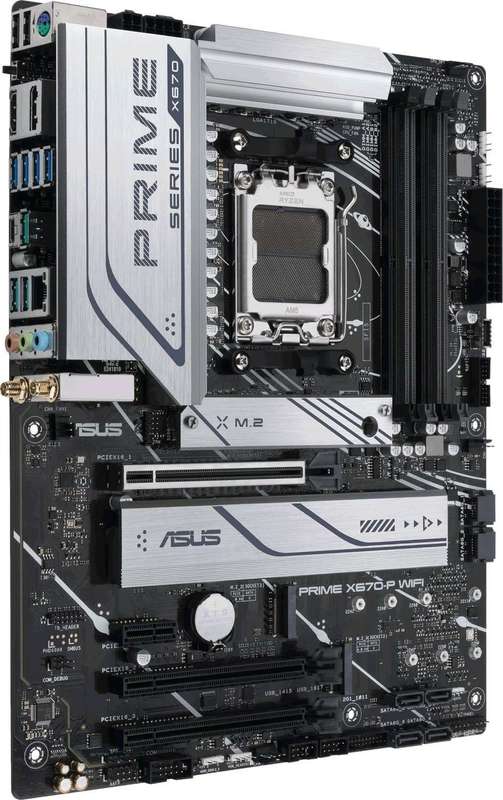

ASUS PRIME X670-P WIFI AMD X670 Ryzen Socket AM5 ATX Desktop Motherboard

SPECIFICATIONS:

Brand ASUS
Series PRIME
Model PRIME X670-P WIFI (90MB1BV0-M0EAY0)
CPU Support AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD X670
Memory Support
AMD Ryzen 7000 Series 4 x DIMM, Max. 128GB, 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Video
HDMI 1x HDMI 2.1, maximum resolution of 4K 60Hz *
DisplayPort 1x DisplayPort 1.4, maximum resolution of 8K 60Hz *
**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Expansion Slots
CPU Direct 1x PCIe 4.0 x16 Physical, x16 Electrical Slot
AMD X670 Chipset 2x PCIe 4.0 x16 Physical, x4 Electrical Slot
1x PCIe 3.0 x1 Physical Slot
Storage
CPU Direct M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD X670 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
6 x SATA 6Gb/s ports **
AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

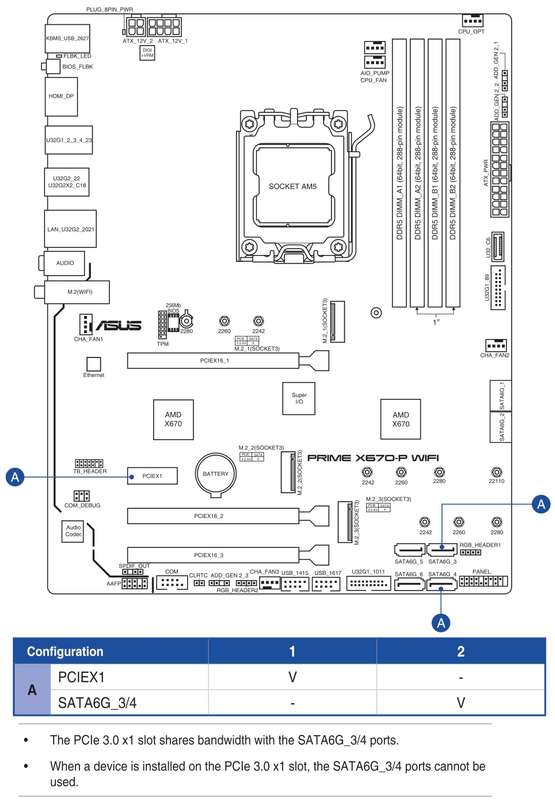

** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used.
Networking
LAN 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN
WiFi AMD WiFi 6E 2x2 MIMO Tri-Band Adapter
Bluetooth Bluetooth 5.2
Audio
Audio Codec Realtek 7.1 Surround Sound High Definition Audio CODEC
Codec Features Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
Connectivity

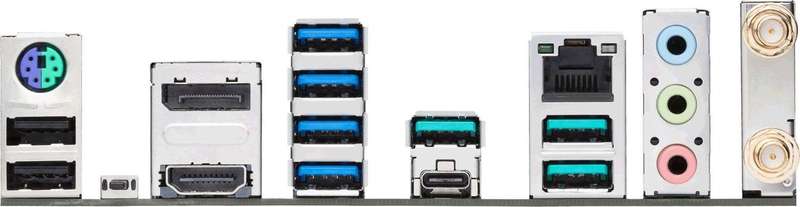

Ports 1x USB 3.2 Gen 2x2 port (1 x USB Type-C)
3x USB 3.2 Gen 2 ports (3 x Type-A)
4x USB 3.2 Gen 1 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
1x DisplayPort
1x HDMI port
1x Wi-Fi Module
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x BIOS FlashBack button
1x PS/2 Keyboard/Mouse combo port
Buttons 1x BIOS FlashBack button
General
Internal Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin 12V Power connector
1x 4-pin 12V Power connector
Storage related
3x M.2 slots (Key M)
6x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 1 connector (supports USB Type-C)
2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
2x Aura RGB headers
1x Clear CMOS header
1x COM Port header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 20-5 pin System Panel header
1x Thunderbolt header
LED Displays N/A
BIOS 256MB UEFI AMI BIOS
Manageability WOL by PME, PXE
Form Factor ATX Form Factor, 304.8 x 243.84 mm (H x W)
Operating System Support Windows 11 64-bit

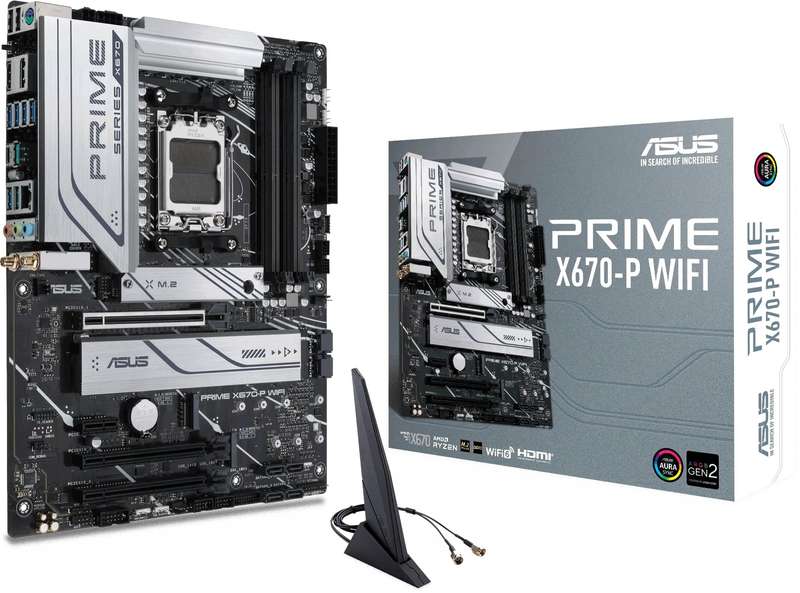

Box Contents ASUS PRIME X670-P WIFI Motherboard
2x SATA 6Gb/s cables

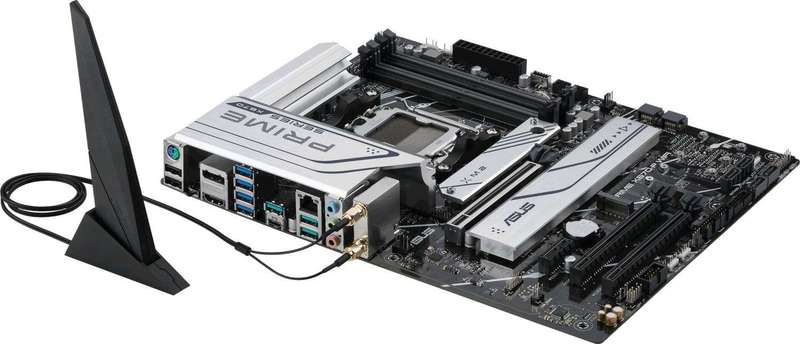

1x ASUS Wi-Fi moving antennas
1x I/O Shield
1x Rubber Package for M.2
2x Screw Packages for M.2 SSD
1x User guide
