ASUS PRIME Z270-P MOTHERBOARD - Socket LGA1151 Intel Z270 Chipset

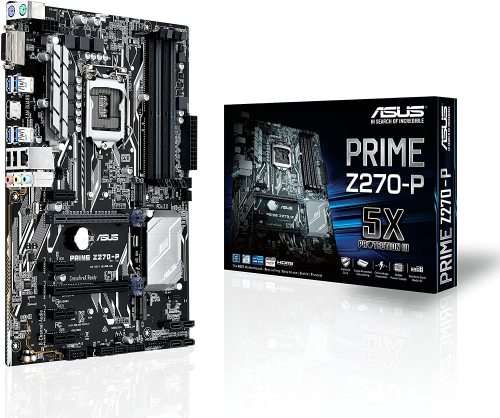

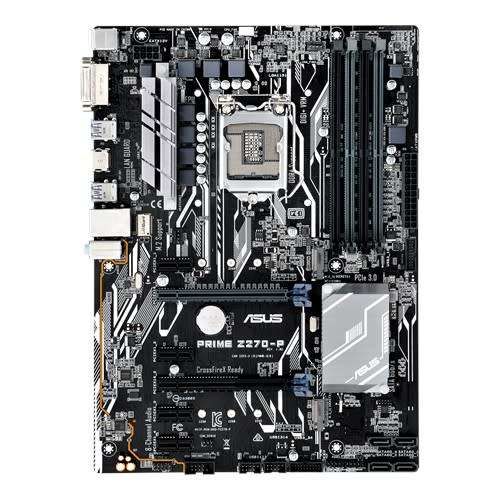

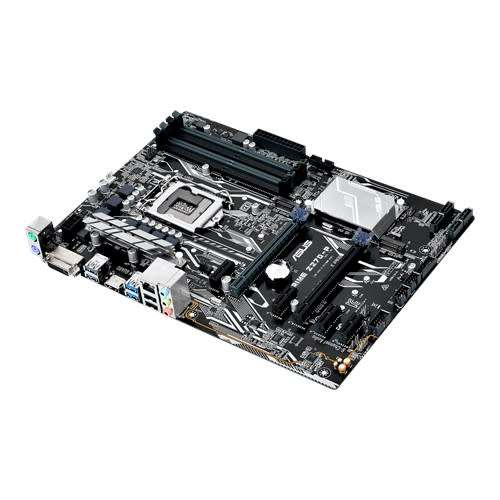

ASUS PRIME Z270-P MOTHERBOARD

Intel LGA-1151 ATX motherboard with LED lighting, DDR4 3866MHz, dual M.2, Intel Optane memory ready, HDMI, SATA 6Gb/s, USB 3.0

***NEW***

Motherboard has been pre-inspected by original retailer and is free of bent pins

Features

5X Protection III: Multiple hardware safeguards for all-round protection

LED illumination: Lighting control for both PCIe slot and audio trace paths

Dual native M.2 and NVMe PCIe RAID support: Lightning-fast storage speeds

DDR4 memory support: Overclock to 3866MHz

Intel® Optane memory ready: Exploit the latest high-speed storage technology

Supports Raid 0, 1, 5, 10

Supports AMD CrossFireX Technology

--

Specifications:

CPU

Intel® Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® Z270

Memory

4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D ports

- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz

- Supports DVI-D with max. resolution 1920  x 1200  @ 60 Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports Intel® InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Multi-GPU Support

Supports AMD CrossFireX Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode)

1 x PCIe 3.0/2.0 x16 (max at x4 mode)

4 x PCIe 3.0/2.0 x1

Storage

2 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1

4 x SATA 6Gb/s port(s), gray

Support Raid 0, 1, 5, 10

Supports Intel® Smart Response Technology*2

Intel® Optane Memory Ready *3

LAN

Realtek® RTL8111H

Audio

Realtek ALC887/897 8-Channel High Definition Audio CODEC

- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- LED-illuminated design

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese audio capacitors

USB Ports

8 x USB 3.0 port(s) (4 at back panel, blue, Type-A, 4 at mid-board)

6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)

Special Features

ASUS 5X Protection III :

- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage

- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!

- ASUS Overvoltage Protection: World-class circuit-protecting power design

- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!

- ASUS DIGI+ VRM: Premium components provide better power efficiency

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution & MOS Heatsink

- ASUS Fan Xpert 2+

ASUS EZ DIY :

- ASUS O.C. Tuner

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

Overclocking Protection :

- ASUS C.P.R.(CPU Parameter Recall)

M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

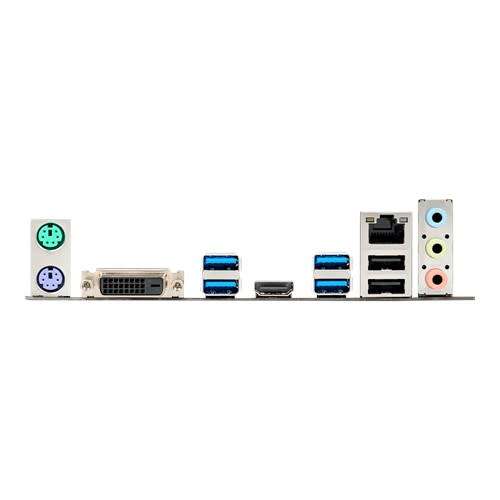

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x HDMI

1 x LAN (RJ45) port(s)

4 x USB 3.2 Gen 1 (blue) Type-A

2 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s) (1 x 4 -pin)

2 x Chassis Fan connector(s) (2 x 4 -pin)

2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

4 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 8-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Clear CMOS jumper(s)

1 x System panel connector

1 x COM port header

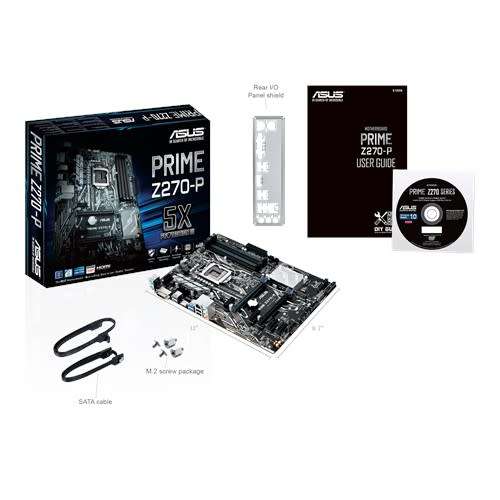

Accessories

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

2 x M.2 screws

1 x SCD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE
