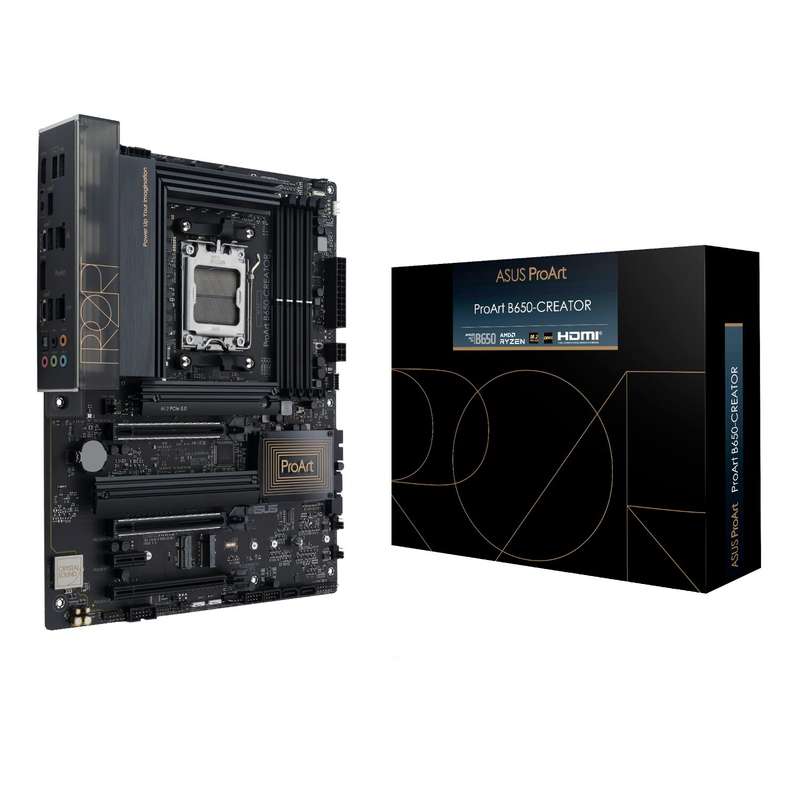

Power Your Vision with the ASUS ProArt B650-Creator Motherboard for Content Creation. Unleash the full potential of your creative workflow with the ASUS ProArt B650-Creator motherboard for content creation, a high-performance platform built for professionals in 3D animation, film post-production, and complex media rendering. Engineered for AMD Ryzen 9000, 8000, and 7000 Series CPUs, this AM5-socket board delivers workstation-class stability, thermal control, and connectivity that empower content creators to move faster, think bigger, and produce more.
Harness the speed of DDR5 memory up to 7600+ MHz (OC) and AMD EXPO profiles for real-time multitasking, seamless timeline scrubbing, and accelerated rendering. With a dual-channel architecture and support for up to 192GB of RAM, the board ensures your system remains future-proofed for evolving creative demands.
The ASUS ProArt B650-Creator motherboard is designed with intensive content creation in mind. Featuring three ultra-fast M.2 slots, including one PCIe 5.0 x4 slot, for rapid file transfers and high-capacity NVMe storage, reducing load times on RAW 4K/8K files and complex project assets. Four additional SATA 6Gb/s ports allow for expanded archival storage, while USB 3.2 Gen 2x2 front-panel connectivity offers 20Gbps data throughput and Quick Charge 4+ up to 60Wperfect for high-speed file syncing and device charging between shoots.
Creators working in high-res workflows will appreciate DisplayPort Alt Mode support on Type-C, enabling up to 8K@60Hz output, alongside native HDMI 2.1 support. Dual LAN (2.5GbE + 1GbE) with ASUS LANGuard ensures low-latency transfers to NAS systems and remote collaboration environments.
Built on ASUS's ProArt design philosophy, this board features Creator Hub software for real-time monitoring and fine-tuning, Q-Latch for tool-free M.2 installation, and robust thermal design with oversized VRM heatsinks. Audio quality is equally professional, with 7.1-channel HD audio, premium capacitors, and optical S/PDIF out for precise sound editing.
Whether you're colour grading, rendering effects, or streaming your workflow, the ASUS ProArt B650-Creator motherboard for content creation is your creative powerhouseintelligently engineered for stability, performance, and artistic ambition.
FEATURES:
- Optimised for AMD Ryzen 9000, 8000, & 7000 Series CPUs with AM5 socket
- Supports up to 192GB DDR5 RAM at speeds up to 7600MHz (OC) for seamless multitasking
- PCIe 5.0 and PCIe 4.0 slots for lightning-fast storage and GPU performance
- Dual M.2 slots with PCIe 5.0 x4 and PCIe 4.0 x4 for high-speed data transfer
- USB 3.2 Gen 2x2 front panel with Quick Charge 4+ support for up to 60W power delivery
- Dual 2.5Gb Ethernet and 1Gb Ethernet ports with ASUS LANGuard for enhanced network reliability
- DisplayPort 1.4 and HDMI 2.1 ports for 8K/4K visual output and smooth multi-display setups
- Thermal management with oversized VRM heatsinks and M.2 heatsinks for improved cooling
- ProArt Creator Hub software for real-time monitoring, system tuning, and custom profiles
- ASUS 5X Protection III, including enhanced DRAM overcurrent protection and ESD guards
- Q-DIMM and Q-Latch for tool-free, hassle-free component installation
- Aura Sync RGB support for customisable lighting that matches your creative space
SPECIFICATIONS:
- CPU
- Socket: AMD Socket AM5
- Supported CPUs: AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors*
- *Refer to www.asus.com for the full CPU support list.
- Chipset
- Chipset: AMD B650
- Memory
- DIMM Slots: 4 x DIMM
- Max Memory Capacity: 128GB (DDR5) or 192GB (DDR5), depending on CPU
- Memory Speed (OC): 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
- Memory Types: ECC & Non-ECC, Un-buffered Memory*
- Dual Channel Architecture
- AMD EXPO Support for Overclocking
- OptiMem II Support
- *Non-ECC, Un-buffered DDR5 supports On-Die ECC function
- Graphics
- 1 x HDMI® port (supports 4K@60Hz, HDMI 2.1)
- 1 x USB Type-C® port (supports DisplayPort 1.4, 8K@60Hz)
- Graphics specifications vary by CPU type
- Expansion Slots
- 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)*
- 1 x PCIe 4.0 x1 slot
- *PCIEX16_3 shares bandwidth with M.2_3 slot
- Storage
- M.2 Slots: 3 x M.2 slots (Key M)
- M.2_1: PCIe 5.0 x4 mode
- M.2_2: PCIe 4.0 x4/x2 mode (depending on CPU)
- M.2_3: PCIe 4.0 x4 mode (shares bandwidth with PCIEX16_3)
- SATA Ports: 4 x SATA 6Gb/s
- RAID Support: AMD RAIDXpert2 for NVMe RAID 0/1/10 and SATA RAID 0/1/10
- Ethernet
- 1 x Realtek 2.5Gb Ethernet
- 1 x Realtek 1Gb Ethernet
- ASUS LANGuard for enhanced network protection
- Wireless & Bluetooth
- M.2 Slot for Wi-Fi Module (sold separately)
- o PCIe Key E for Wi-Fi module support
- USB Ports:
- Rear USB Ports (Total 7):
- o 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort graphic output)
- o 4 x USB 3.2 Gen 2 Type-A
- o 2 x USB 2.0 Type-A
- Front USB Ports (Total 7):
- o 1 x USB 3.2 Gen 2x2 (supports USB Type-C® with up to 60W PD/QC4+)
- o 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
- o 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
- Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Up to 24-bit/192 kHz playback
- Audio Features:
- Power pre-regulator reduces input noise for consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors and dedicated PCB layers
- Audio cover and unique de-pop circuit
- Back Panel I/O Ports
- 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort graphic output)
- 4 x USB 3.2 Gen 2 Type-A
- 2 x USB 2.0 Type-A
- 1 x DisplayPort (Input only)
- 1 x HDMI® port
- 1 x Realtek 2.5Gb Ethernet
- 1 x Realtek 1Gb Ethernet
- 5 x Audio jacks
- 1 x Optical S/PDIF out port
- 1 x BIOS FlashBack button
- Internal I/O Connectors
- Fan and Cooling:
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
- Power:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
- 1 x 6-pin PCIe Power connector
- Storage:
- 3 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
- USB:
- 1 x USB 3.2 Gen 2x2 connector
- 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports)
- 2 x USB 2.0 ...
