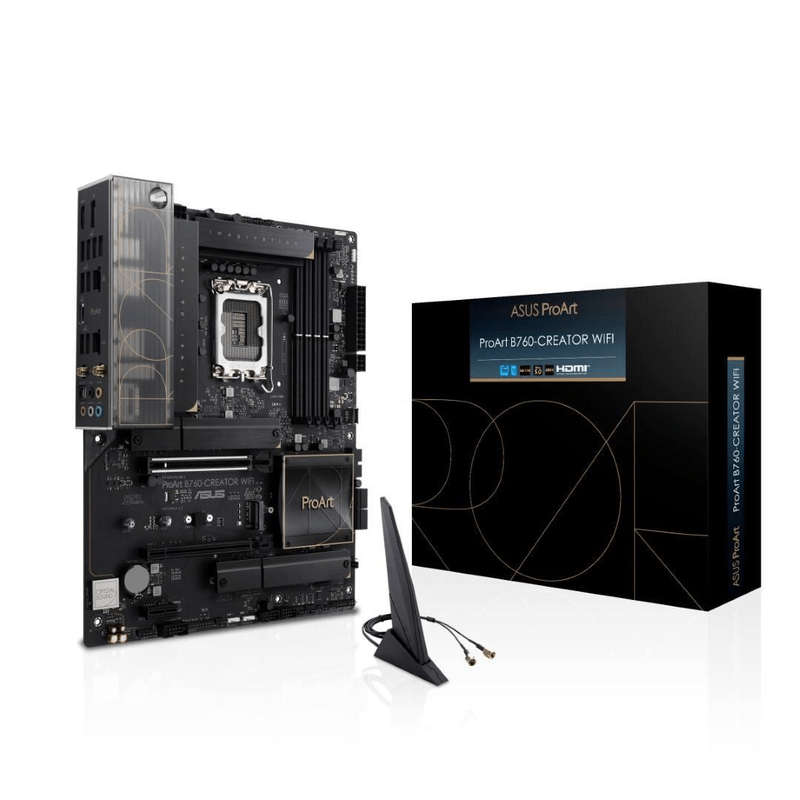

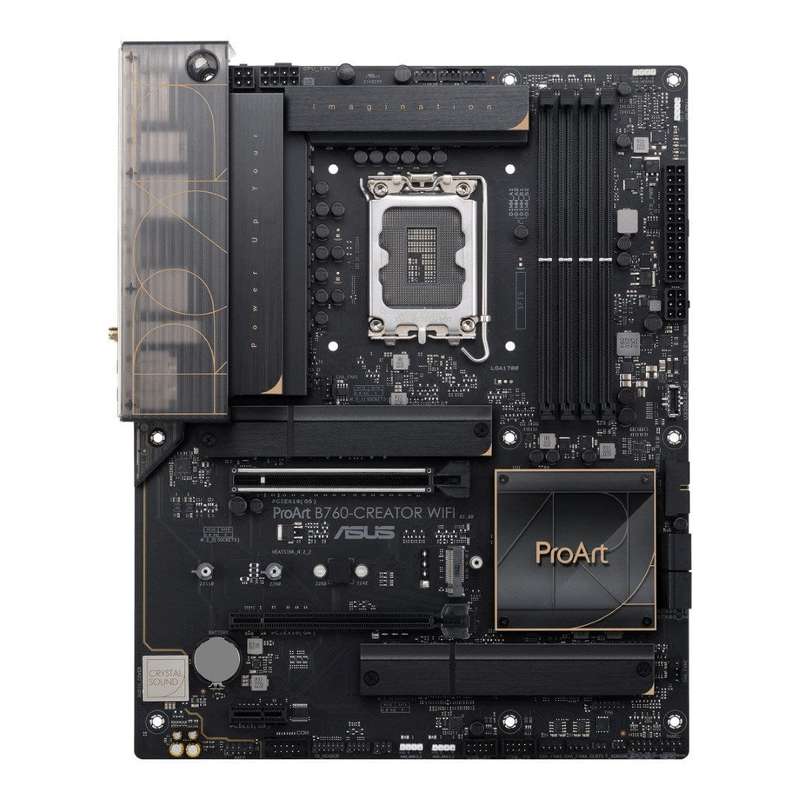

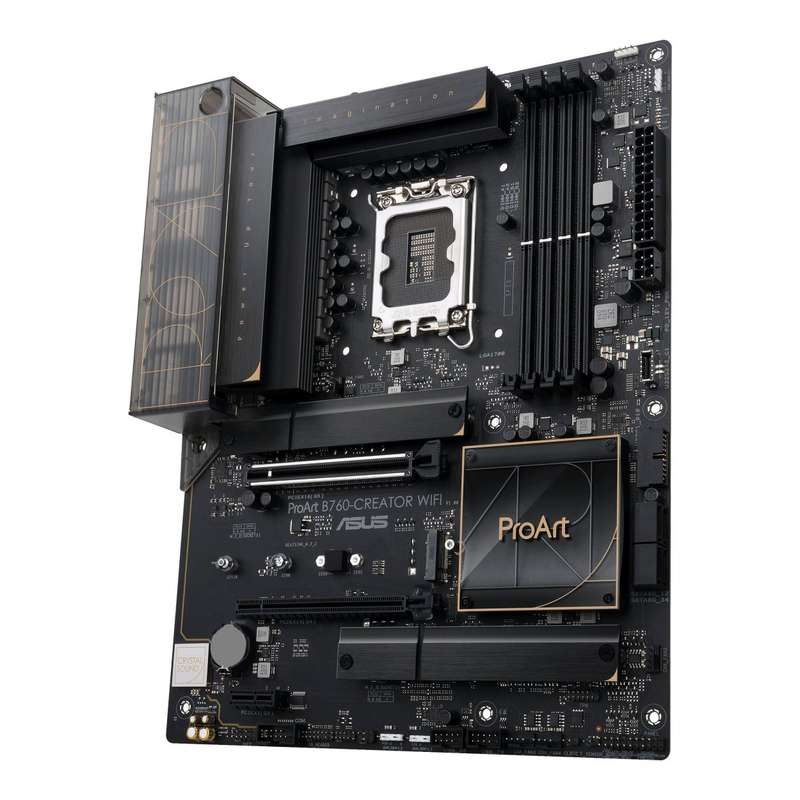

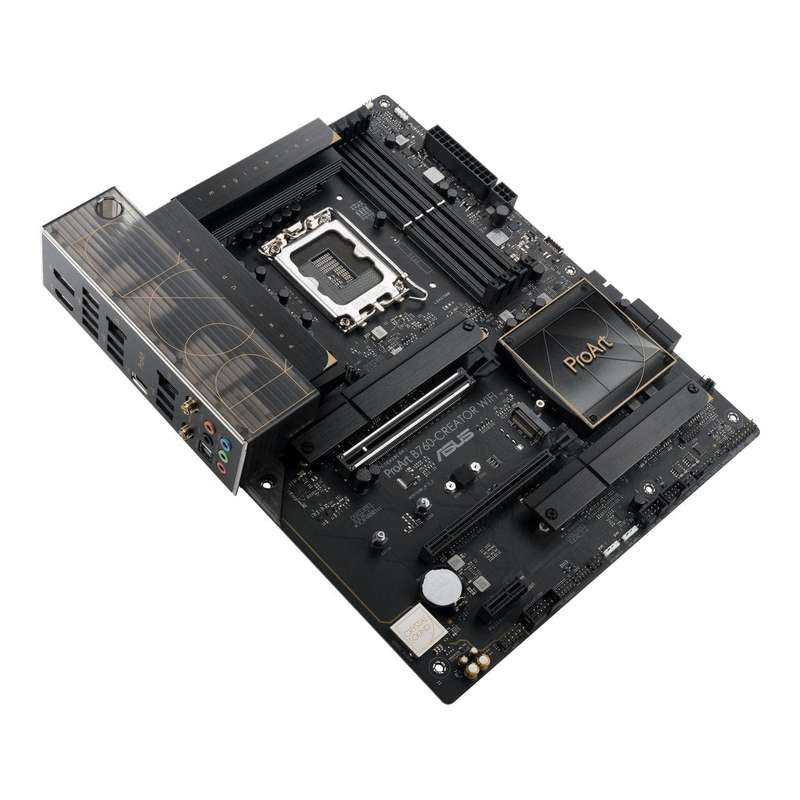

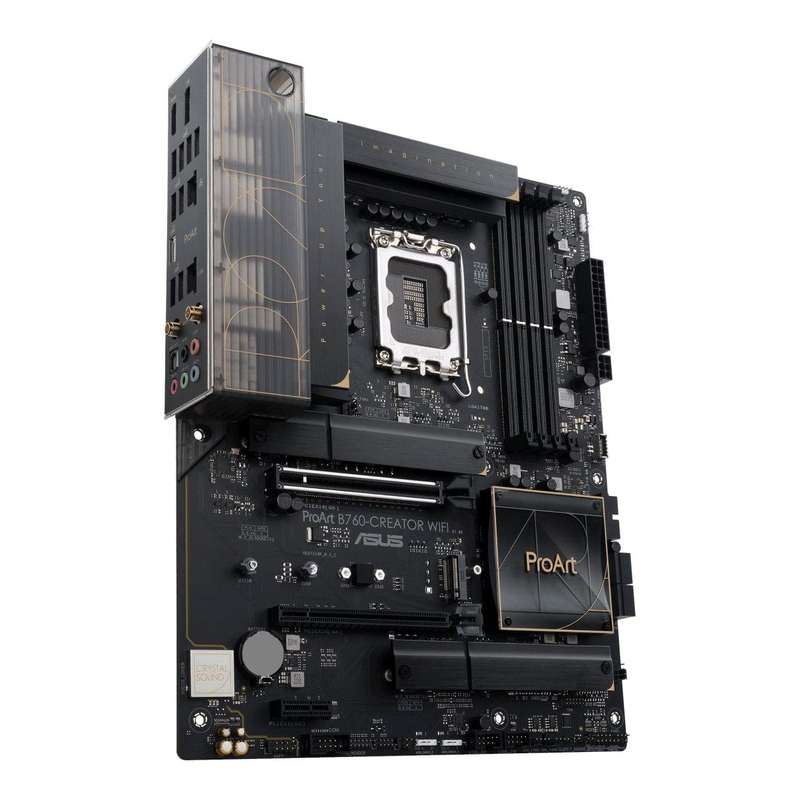

ASUS ProArt B760-CREATOR Wi-Fi Intel LGA 1700 ATX Motherboard 90MB1FY0-M1EAY0
ProArt B760-Creator WiFi is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, WiFi 6, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.
Features:
- Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- PC ATX Intel B760 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- M.2, SATA III RAID support Number of storage drives supported: 7
- 128 Mbit
- 2.5 Gigabit Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.2
Comprehensive Connectivity
PCIe 5.0 for graphics cards
The 13th Gen Intel processors offer PCIe 5.0 support, which offers twice the data transfer speed of PCIe 4.0 , making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits such as improved signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous PCIe versions.
USB 3.2 Gen 2x2 Type-C® front-panel connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
Thunderbolt™ / USB4 support
The ProArt B760-Creator WiFi features Thunderbolt 4 support via an on-board header. With an Intel-certified ASUS ThunderboltEX 4 add-on card*, this ProArt motherboard can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multiscreen connections, and it supports a display resolution of up to 8K. It can also provide up to 100 watts of power to fast-charge devices.
*ASUS add-on card is sold separately.â
Networking
Dual Ethernet
2.5 Gb and 1 Gb Ethernet ports provide fast data transfers simultaneously for internet access and local network-attached storage (NAS), allowing for improved data organization and security.â
Intel® WiFi 6 AX201
The Intel® WiFi 6 AX201 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps.
PCIe 4.0 M.2 Storage
The ProArt B760-Creator WiFi features three onboard M.2 slots, two of which are PCIe 4.0-ready for blistering speeds of up to 64 Gbps, while the third offers massive transfers of up to 32 Gbps through its PCIe 3.0 interface, enabling quicker boot-up and app load times with operating system or application drives.
The core of your powerful workstation
Robust power design
12(50A)+1(50A)+1 Power Stages
Rated for up to 50 amps and combining high-side and low-side MOSFETs and drivers into a single package, these stages deliver power and efficiency tailored for the demands ofâ the latest 13th & 12th Gen Intel Core processors.â
Chokes & capacitors
Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.
Digi+ power control
The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.
ProCool power connectors
These components are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.
Memory
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module's ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.â
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Everything you need to optimize workflows
Two-Way AI Noise Cancelation
As working from home has become the new normal for many users, clear online communication is more critical than ever. Two-Way AI Noise Cancelation is an audio utility that leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio. Distracting keyboard clatter, mouse clicks and other ambient noises are smartly pared back, so your calls and video conferences with partners and clients can be crystal clear.â
*An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.
Customize your personal settings
ProArt Creator Hub is your personal portal for monitoring your PC status, customizing settings, and optimizing your workflow. It boasts an intuitive overview dashboard and a network optimization application that offers five network modes. These modes optimize bandwidth efficiency for different tasks and simplify switching between performance modes.
Technical Specifications:
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported memory types: DDR5-SDRAM
M...
