ASUS PROART B760-CREATOR WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Network
Wi-Fi Y
Ethernet LAN Y
Bluetooth Y
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Ethernet interface type 2.5 Gigabit Ethernet,Gigabit Ethernet
Bluetooth version 5.2
Weight & dimensions
Width 305
Depth 244
Processor
Processor manufacturer Intel
Processor socket LGA 1700
Compatible processor series Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Memory
Number of memory slots 4
Memory slots type DIMM
Non-ECC Y
Unbuffered memory Y
Memory channels Dual-channel
Supported memory types DDR5-SDRAM
Maximum internal memory 192
Graphics
Parallel processing technology support Not supported
Features
Component for PC
Motherboard form factor ATX
Motherboard chipset family Intel
Audio output channels 7.1
Windows operating systems supported Windows 10 x64,Windows 11 x64
Motherboard chipset Intel B760
Expansion slots
Number of M.2 (M) slots 3
PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
Internal I/O
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
TPM connector Y
Number of SATA III connectors 4
Front panel audio connector Y
ATX Power connector (24-pin) Y
CPU fan connector Y
EPS power connector (8-pin) Y
12V power connector Y
Number of COM connectors 1
Thunderbolt headers 1
Number of chassis fan connectors 4
USB 3.2 Gen 2x2 connectors 1

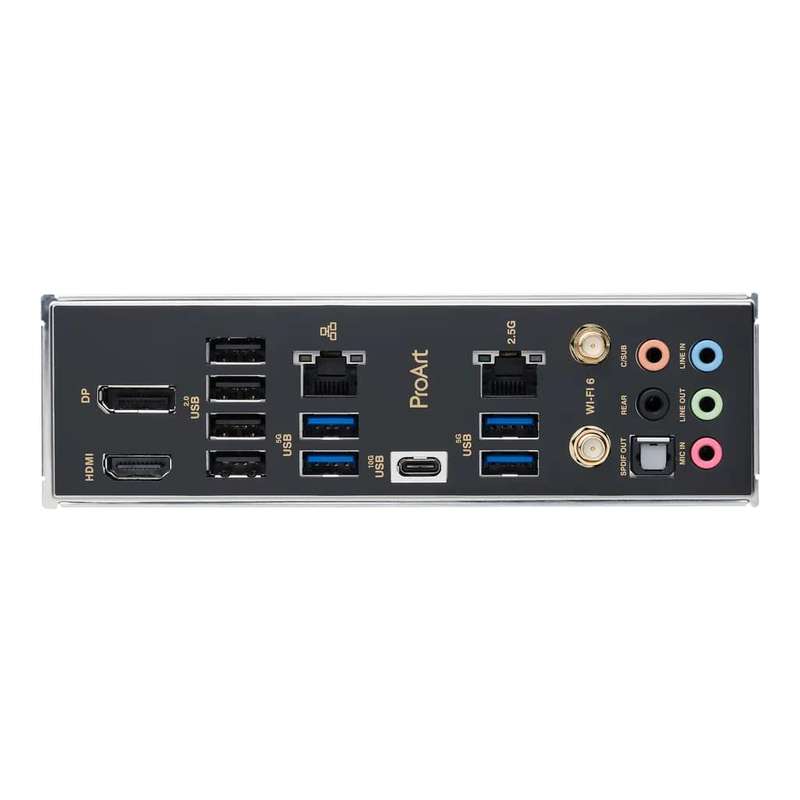

Rear panel I/O ports
USB 2.0 ports quantity 4
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
HDMI ports quantity 1
Microphone in Y
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
S/PDIF out port Y
DisplayPorts quantity 1
Line-in Y
Storage controllers
RAID levels 0,1,5,10
RAID support Y
Number of HDDs supported 4
Supported storage drive interfaces M.2,SATA III
Number of storage drives supported 7
BIOS
BIOS memory size 128
