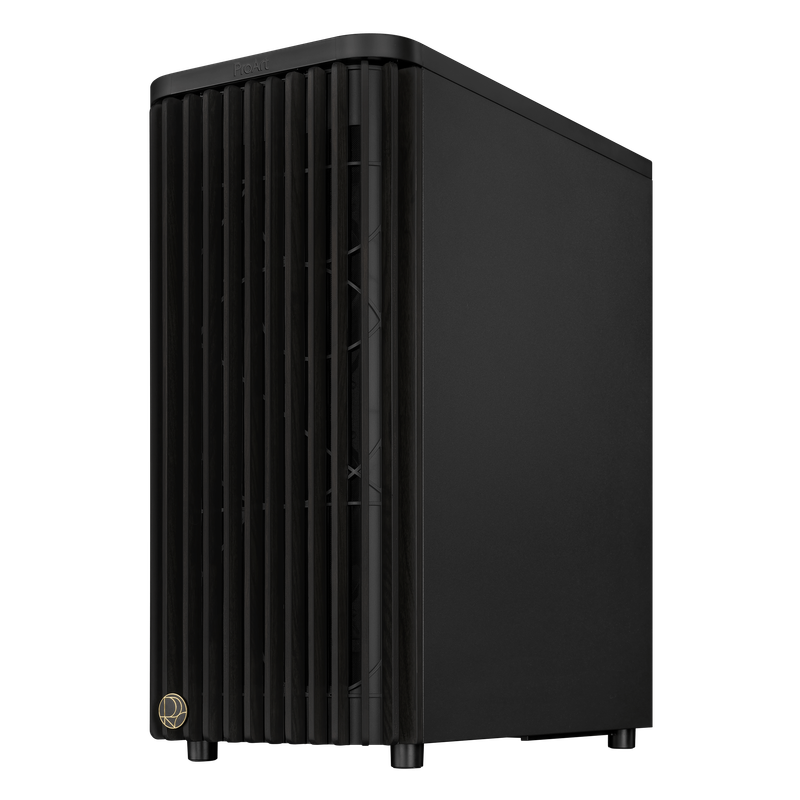

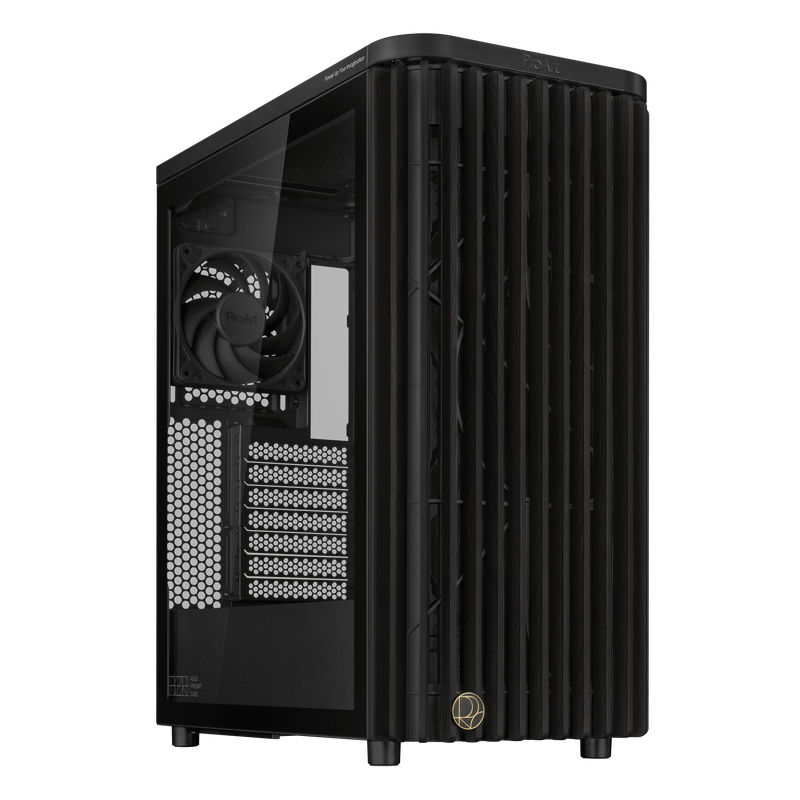

ASUS ProArt PA401 Wood Edition Chassis with Tempered Glass Panel

ASUS ProArt PA401 Wood Edition Tempered Glass Panel Natural Elegance, Optimal Airflow

The ProArt PA401 Wood Edition is a true blend of natural elegance and advanced technology. Its wooden front panel not only adds a unique, sophisticated touch but also promotes sustainability, using FSC®-certified wood finished through a meticulous six-stage process. Equipped with two 160mm front fans and a 120mm rear fan, the case ensures optimal airflow for efficient cooling.

• Open grille: Maximizes air intake
• 160 x 32mm front ring fan blades: Enhance thermal performance
• Durable FSC® certified ash wood

COOLING Exceptional Cooling Performance

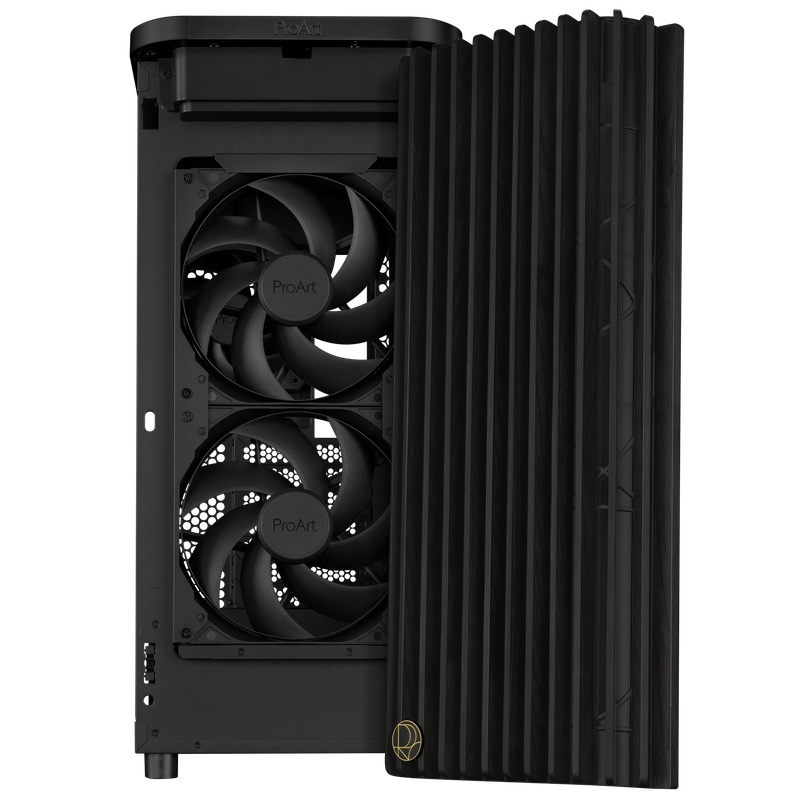

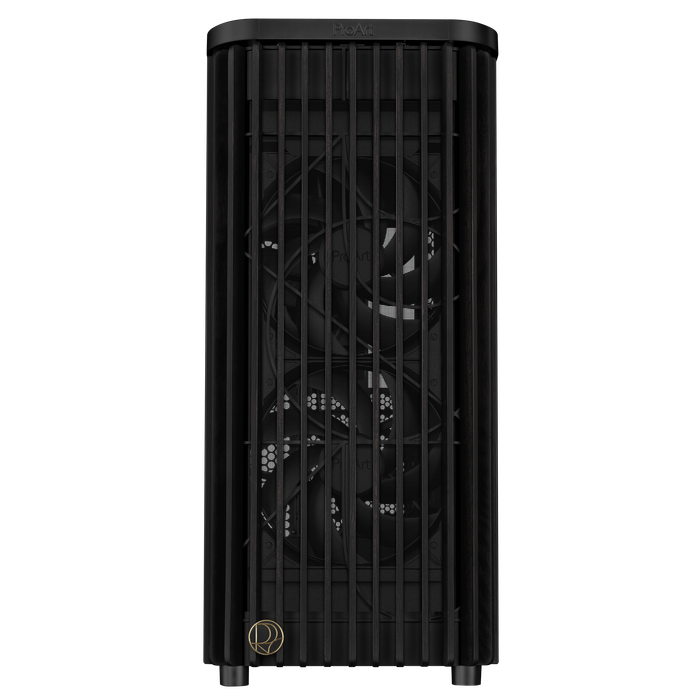

The PA401 Wood Edition features a front grille with 33% porosity to maximize airflow and ventilation. Dual 160mm front fans deliver up to 138cfm of airflow to graphics cards and CPU coolers, with outer rings connecting fan blades to reduce vibration. The 120mm rear fan with PWM control ensures optimal airflow, low noise, and high reliability.

• Efficient cooling: Fans with ring blade design
• 18mm open-grille design: 33% porosity
• Fan specifications: Rear fan 120 x 28mm | Front fan 160 x 32mm

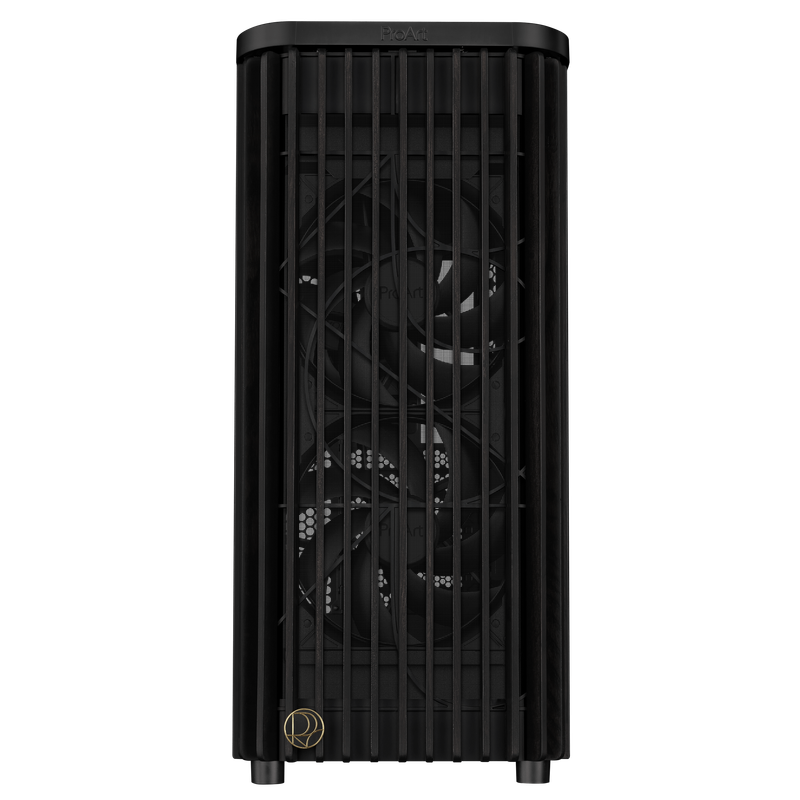

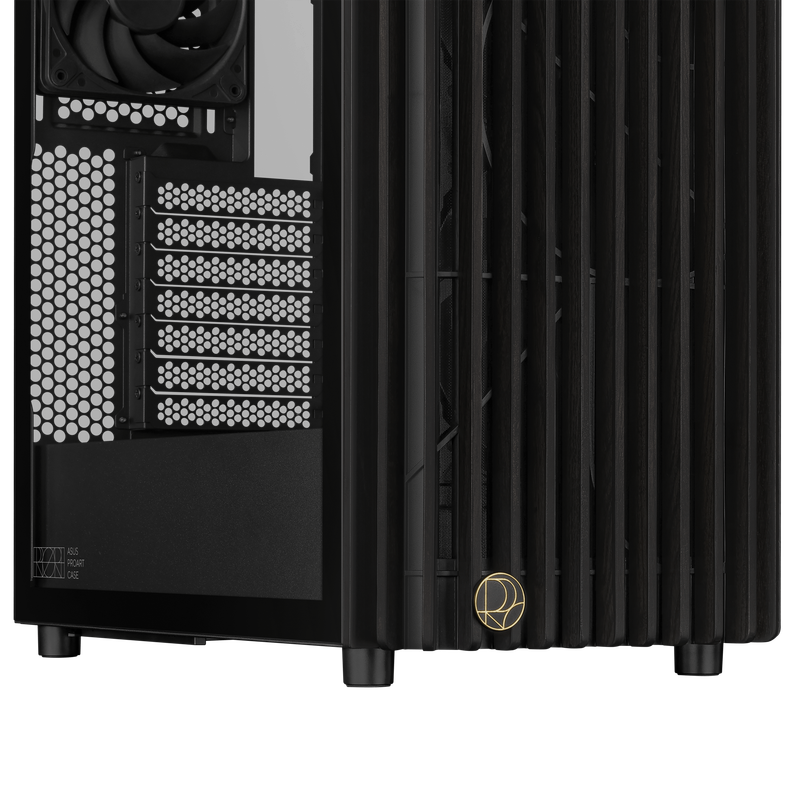

Natural Elegance Crafted Wood

Crafted from durable ash wood, the front panel undergoes a special six-stage production process beginning with thermowood treatment, protecting the wood from insects, humidity, and heat. This process shapes the material to exact specifications and elevates the unique Ash grain with a glossy finish. FSC® certification ensures that the wood used is sustainably sourced.

Note: Each ProArt PA401 Wood Edition case will have a distinct finish, adding to its unique charm and character.

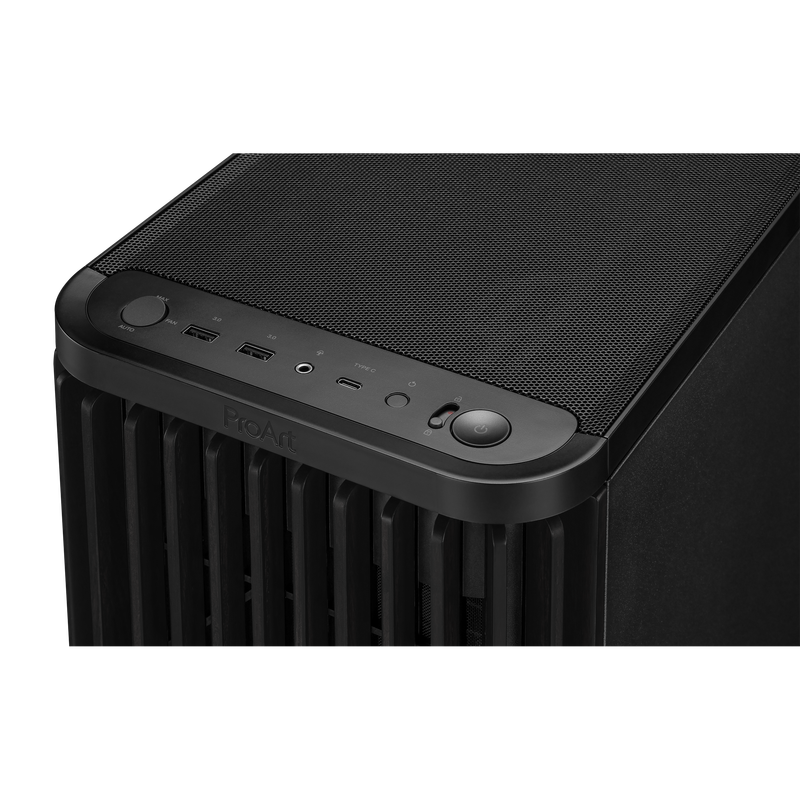

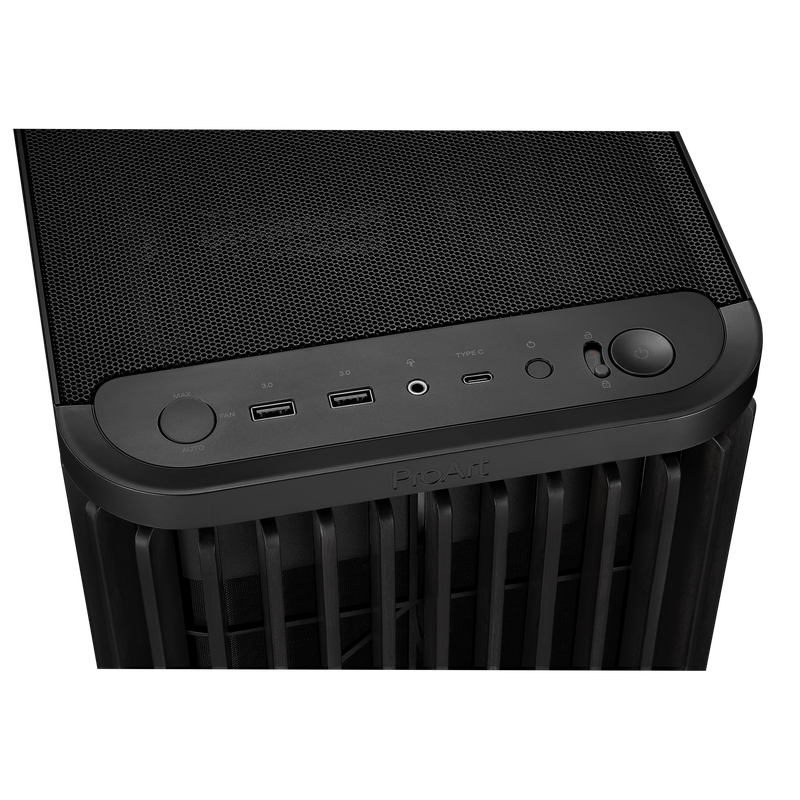

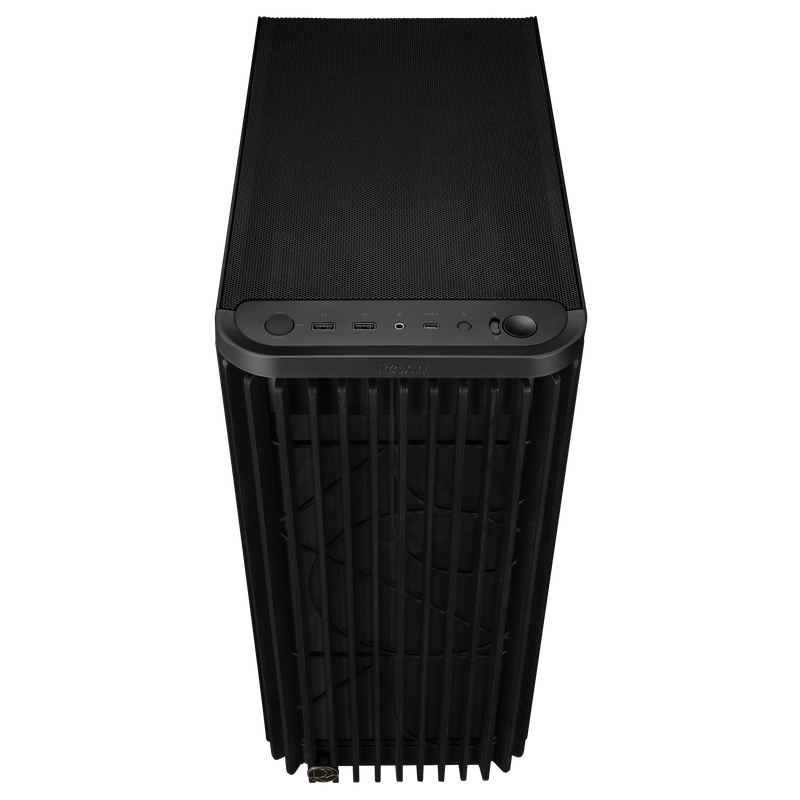

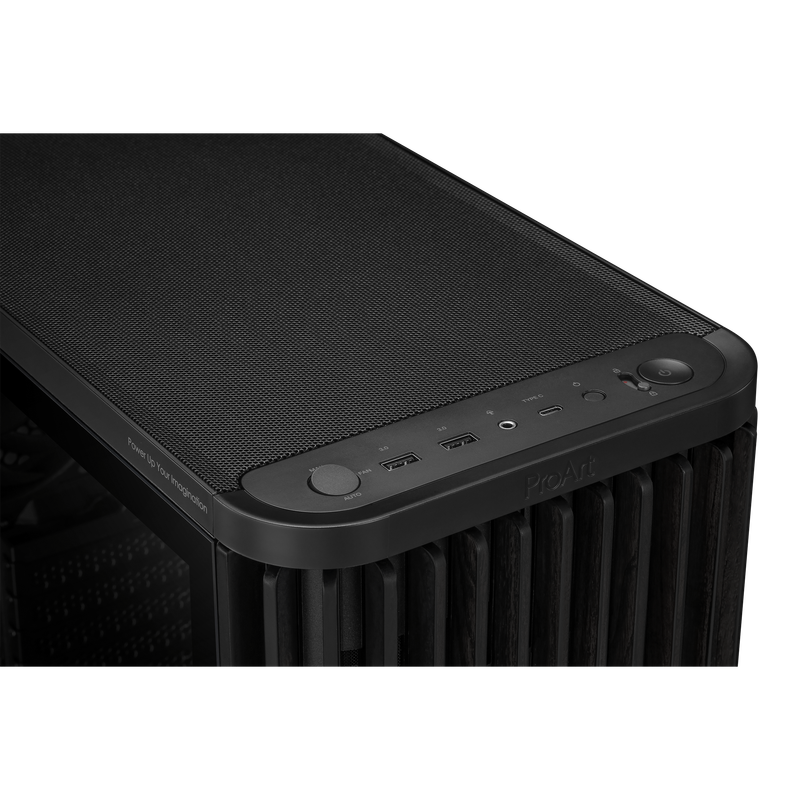

Connectivity Flexible, Fast I/O

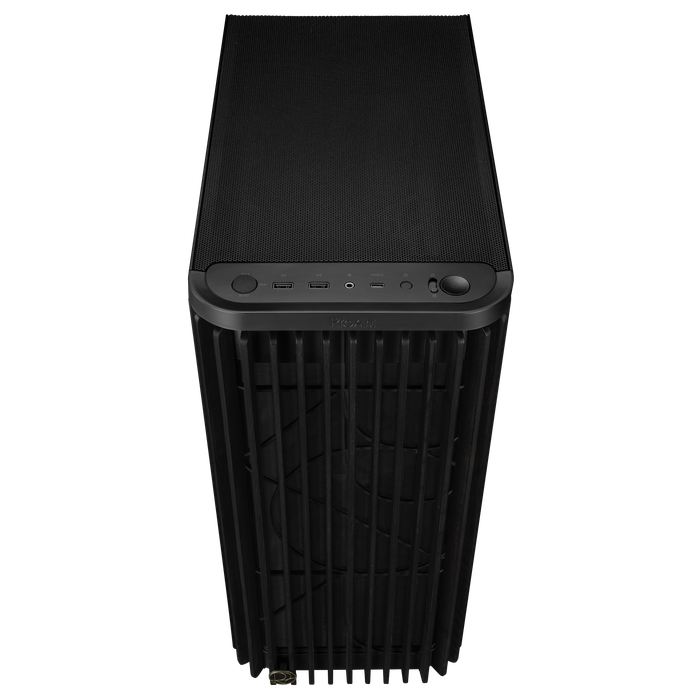

Connectivity options are easily accessible via the front I/O panel, featuring:

• Premium Fan Speed Control: Integrated PWM control adjusts fan speed automatically
• 20Gbps USB Type-C®: Ensures connectivity for current and future devices
• Power and Reset Button Lock: Prevents accidental presses

Design Builder-Friendly Installation

The ProArt PA401 Wood Edition is designed for optimal PC building experience, offering user-focused features:

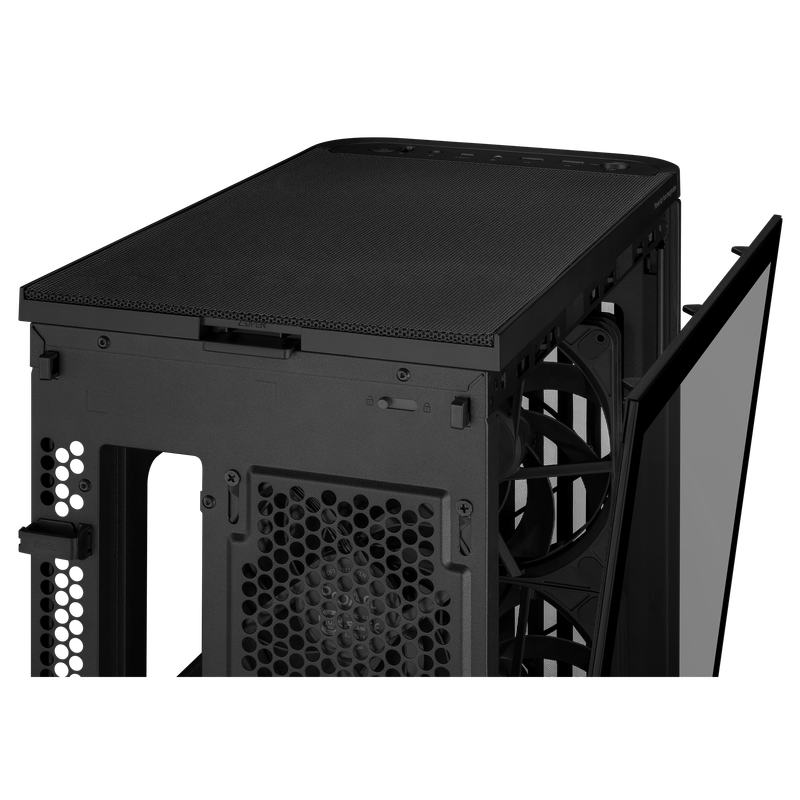

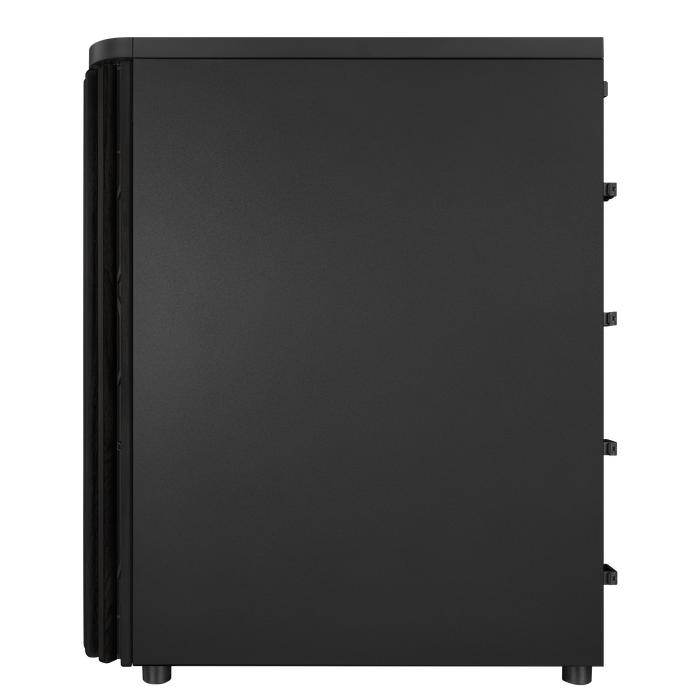

• Secure side panel: Physical latch to prevent intrusion
• One-stop PWM fan hub: Convenient system fan control
• Tool-free installation: 3.5" hard drive slots

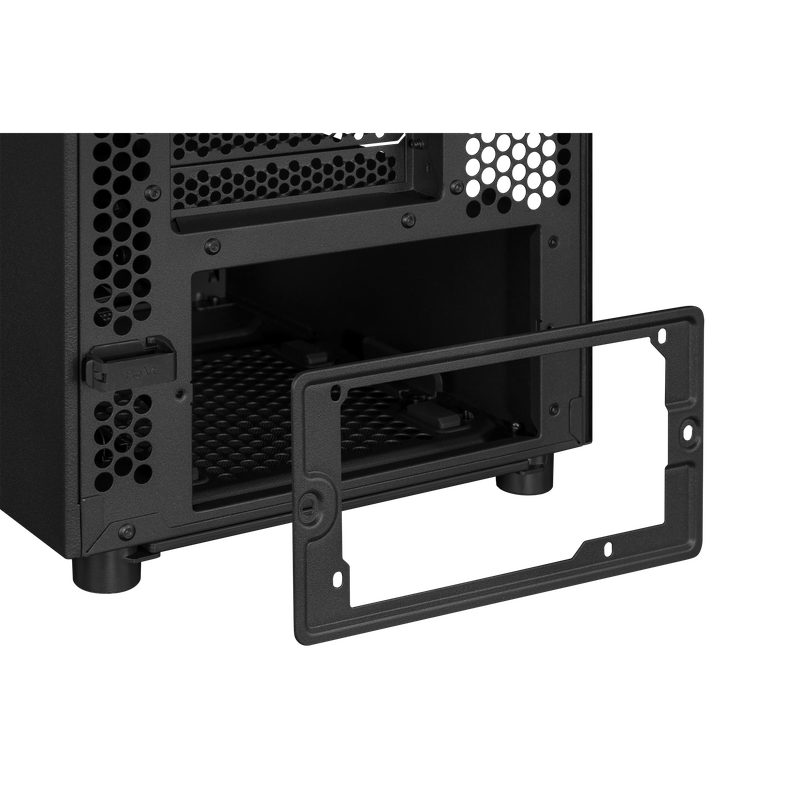

• Detachable rear bracket: Simplifies power supply installation

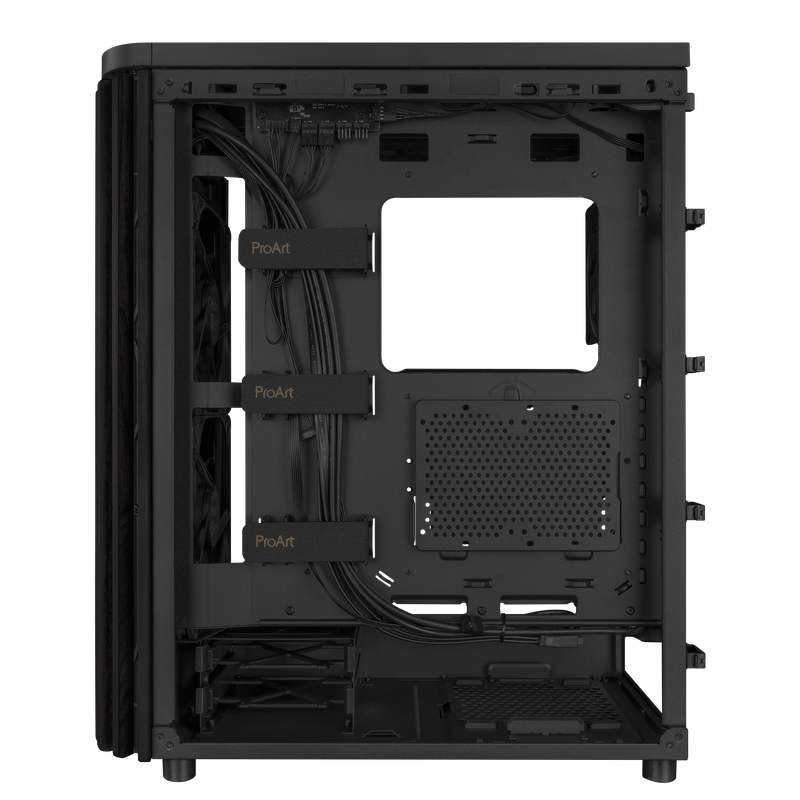

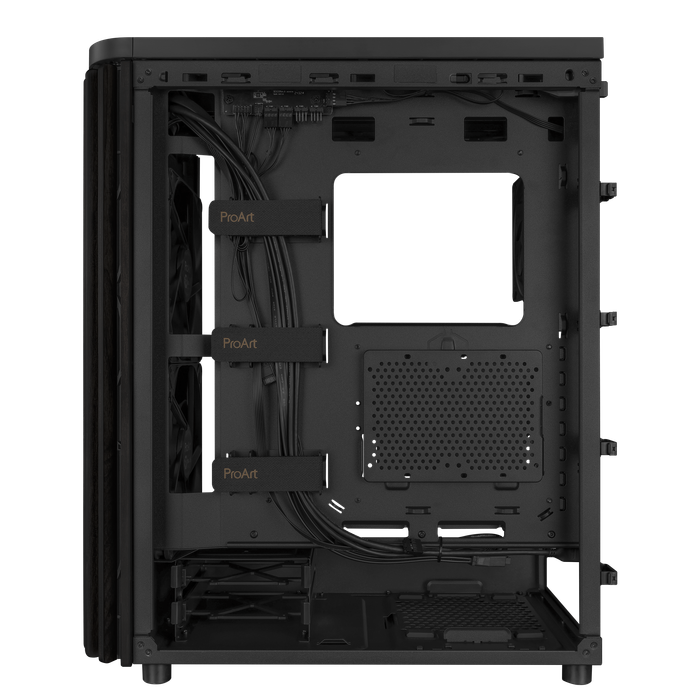

• Rear cable clips: Ensure clean cable management

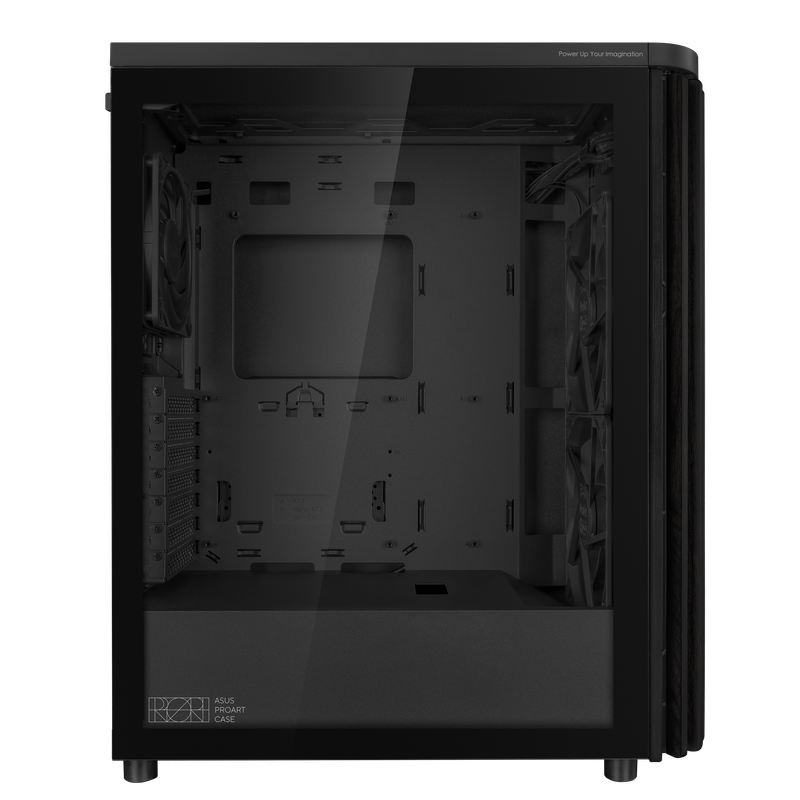

Compatibility Compact Form, Ample Interior

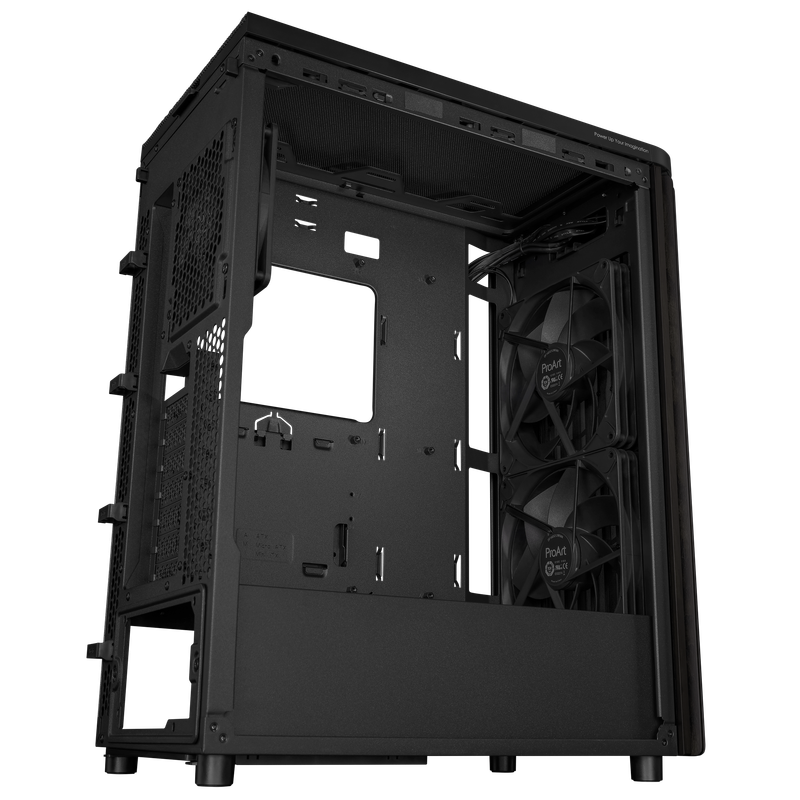

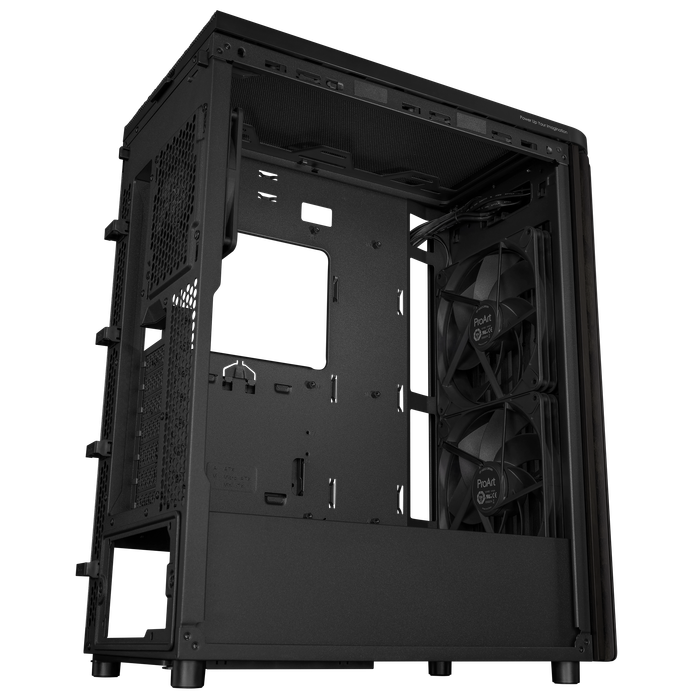

Featuring two pre-installed 160mm front fans, the PA401 Wood Edition accommodates both horizontal and vertical graphics card mounting.

Technical Specifications

Model

• ProArt PA401 Wood Edition - Tempered Glass Panel

Motherboard Support

• ATX

Drive Bays

• 2 x 2.5" Bay
• 2 x 2.5"/3.5" Combo Bay

Expansion Slots

• 7

Front I/O Port

• 1 x Headphone/Microphone
• 2 x USB 3.2 Gen1
• 1 x USB 3.2 Gen 2x2 Type-C

Radiator Support (Top)

• 120 mm
• 140 mm
• 240 mm

Cooling Support (Front)

• 2 x 140 mm
• 2 x 160 mm

Cooling Support (Top)

• 2 x 120 mm
• 2 x 140 mm

Cooling Support (Rear)

• 1 x 120 mm

Pre-installed Fans (Front)

• 2 x 160 mm

Maximum CPU Cooler Height

• 160 mm

Maximum GPU Length

• 315 mm

Maximum PSU Length

• 170 mm

Removable Dust Filters

• Front
• Bottom

Dimensions

• 412 x 225 x 503 mm (DWH)

Weight

• 8.61 Kg

Accessory

• Pre-installed Fan Hub supports PWM Fan Output x 5

Warranty

• 3 Year Manufacturer's Carry-In Warranty
