This item has closed 1 buyer bought 1 item
View other items offered by Martin Stuff39
Similar products
ASUS ROG Crosshair VI Hero AM4 AMD X370 SATA 6Gb/s USB 3.1 USB 3.0 ATX AMD Motherboard / Support DDR
Secondhand
Indicative market price: R4,695
R1,995.00
58% OFF
Closed
8 Sep 18 14:42
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Returns
Product information
Condition:
Secondhand
Location:
South Africa
Socket:
Socket AM4
Form Factor:
ATX
Brand:
Asus
Customer ratings:
Bob Shop ID:
365316205
- CPU support: Ryzen processors
- Chipset: X370 Chipset
- 1x Gigabit: Intel I211-AT
- Storage:
- AMD Ryzen Processors :
- 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
- AMD X370 chipset :
- 8 x SATA 6Gb/s port(s),
- Support Raid 0, 1, 10
- AMD Ryzen Processors :
- Connectivity:
- Through processor: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
- Through chipset: 1 x PCIe 2.0 x16 (max at x4 mode) *1 3 x PCIe 2.0 x1
- USB 3.0 / 3.1
- AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
4 x USB 3.0 port(s) (4 at back panel, blue) - AMD X370 chipset :
1 x USB 3.1 front panel connector port(s) - AMD X370 chipset :
6 x USB 3.0 port(s) (4 at back panel, blue, 2 at mid-board) - AMD X370 chipset :
6 x USB 2.0 port(s) (4 at back panel, black, 2 at mid-board) - ASMedia USB 3.1 controller :
2 x USB 3.1 port(s) (2 at back panel, black+red, Type-A + Type-C)
- AMD Ryzen™/7th Generation A-series/Athlon™ Processors :
- 8-channel ALC 1220 Realtek chip
The I/O back panel reveals 3.1/3.0/2.0 ports. The audio unit has special noise reducing capacitors and shielding on top of that Realtek chip (rebadged as ROG SupremeFX 8-Channel High Definition Audio CODEC S1220). You will spot one 10/100/1000 Gigabit Ethernet jack. Lacking is a PS/2 keyboard/mouse combo port. Included are optical S/PDIF out port and five gold plated audio jacks
The board has 3 x PCIe 3.0 x16 slots which can be arranged in these slot configurations with graphics cards:
- 1-way mode - x16 / x0 / x0
- 2-way mode - x8 / x8 / x0
- 3-way mode - x8 / x8 / x4
As you can see, these are PCI Express Gen 3.0 configurations, that's plenty for regular graphics card setups up-to 2-way SLI/Crossfire. The motherboard comes with an 8-pin and extra 6-pin power connector. You'll get four DIMM slots that can be used for up-to 64GB of dual-channel memory. Up-to 3200 MHz supported in OC mode. Please do check compatible memory and thus the QVL (Qualified Vendors Lists).

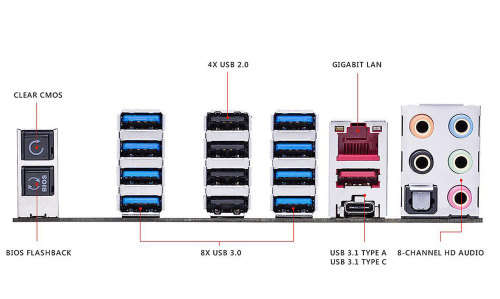

Back Panel I/O Ports
1 x LAN (RJ45) port(s)
- 1 x USB 3.1 (black)Type-C
- 1 x USB 3.1 (red)Type-A
- 8 x USB 3.0 (blue)
- 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)
- 1 x Optical S/PDIF out
- 1 x Clear CMOS button(s)
- 1 x USB BIOS Flashback Button(s)
- 5 x Gold-plated audio jacks
