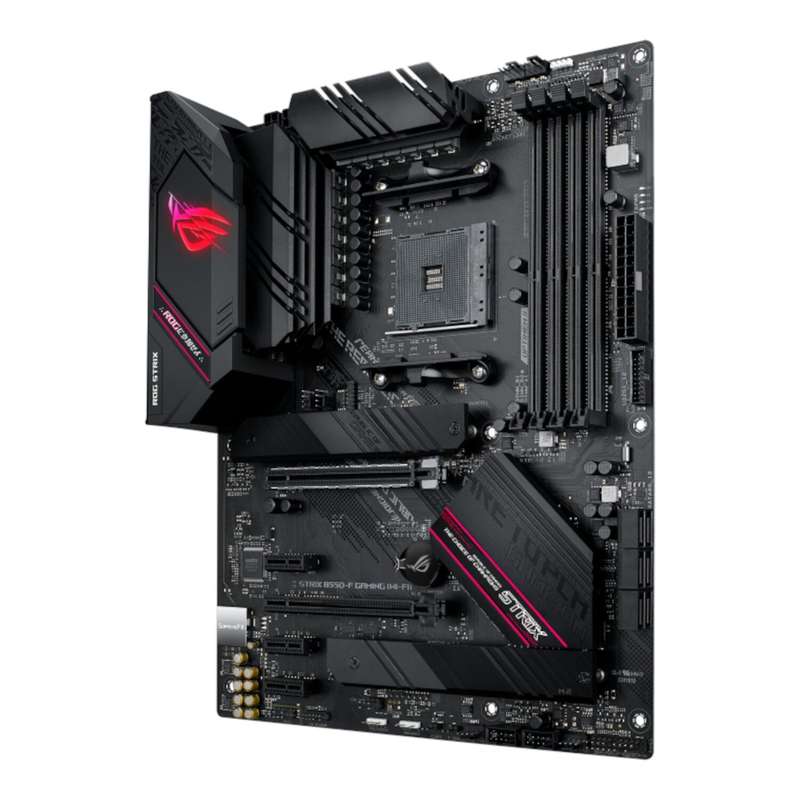

The ROG Strix B550-F Gaming Wi-Fi motherboard offers a refined balance of power, performance, and premium-grade features for serious gamers and PC builders. Built to support 3rd Gen AMD Ryzen processors, this ATX board is powered by a 12+2 DrMOS power stage design, alloy chokes, and durable capacitors, ensuring precise voltage regulation and system stability under load or during overclocking sessions.
Equipped with dual PCIe 4.0 M.2 slots, the ROG Strix B550-F Gaming enables ultra-fast data transfer rates with support for RAID configurations and the latest NVMe SSDs. Four DIMM slots offer support for up to 128GB of DDR4 memory, optimised for high-frequency performance. Intel® I225-V 2.5Gb Ethernet delivers low-latency wired networking, while integrated Intel® Wi-Fi 6 (802.11ax) ensures superior wireless speeds and responsiveness for online gameplay, streaming, and remote workloads.
SupremeFX S1220A audio with DTS® Sound Unbound and Sonic Studio III delivers high-definition audio, creating immersive in-game soundscapes. Intelligent software features such as AI Networking and Fan Xpert 4 simplify system management, while multiple hybrid fan headers, VRM heatsinks, and a PCH heatsink provide robust thermal control.

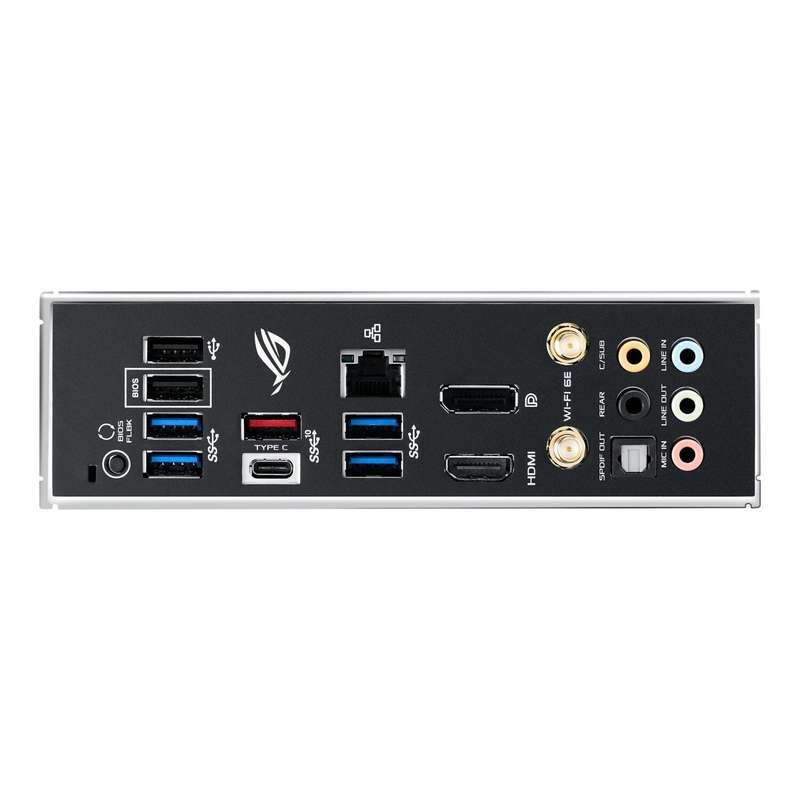

Connectivity is streamlined with USB 3.2 Gen 2 Type-A and Type-C ports, HDMI 2.1 and DisplayPort 1.2 outputs, and onboard Aura Sync RGB lighting with addressable headers for complete customisation. BIOS FlashBack allows safe firmware updates without a CPU, and the pre-mounted I/O shield ensures a clean, straightforward installation.
The ROG Strix B550-F Gaming Wi-Fi motherboard is an ideal foundation for high-performance AMD builds, offering future-ready architecture, aesthetic customisation, and comprehensive connectivity in one advanced solution.
FEATURES:
- Dual M.2 slots support up to PCIe 4.0 speeds
- 12+2 DrMOS power stages and high-quality alloy chokes ensure stable power delivery
- Integrated Wi-Fi 6 delivers next-gen wireless speeds with increased capacity and efficiency
- AI networking and BIOS FlashBack, streamlined connectivity and one-click BIOS recovery
- Pre-mounted I/O shield and reinforced PCIe slot for simplified installation and enhanced durability
- VRM and chipset heatsinks, hybrid fan headers, and Fan Xpert 4 ensure optimal thermal performance
- Aura Sync offers customisable RGB lighting, and addressable Gen 2 headers allow synchronised lighting
- SupremeFX audio technology provides immersive sound powered by high-fidelity components and DTS® Sound Unbound support
SPECIFICATIONS:
- CPU:
- Chipset: AMD B550
- CPU Compatibility_ AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- CPU Socket_ LGA1700
- Memory Support_
-
AMD RyzenTM 4000 G-Series Processors
-
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
-
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
-
OptiMem II
-
Dual Channel Memory Architecture
-
ECC Memory (ECC mode) support varies by CPU
- Graphics:
-
1 x HDMI 2.1(4K@60HZ)
1 x DisplayPort 1.2
- Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
- Expansion Slots_
-
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
-
AMD B550 Chipset
-
1 x PCIe 3.0 x16 (x4 mode)
-
3 x PCIe 3.0 x1
-
1 x PCIe 3.0 x16 (x16 mode)
-
1 x PCIe 4.0 x16 (x16 mode)
- Storage:
-
AMD RyzenTM 4000 G-Series Processors :
-
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
-
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
-
AMD B550 Chipset :
