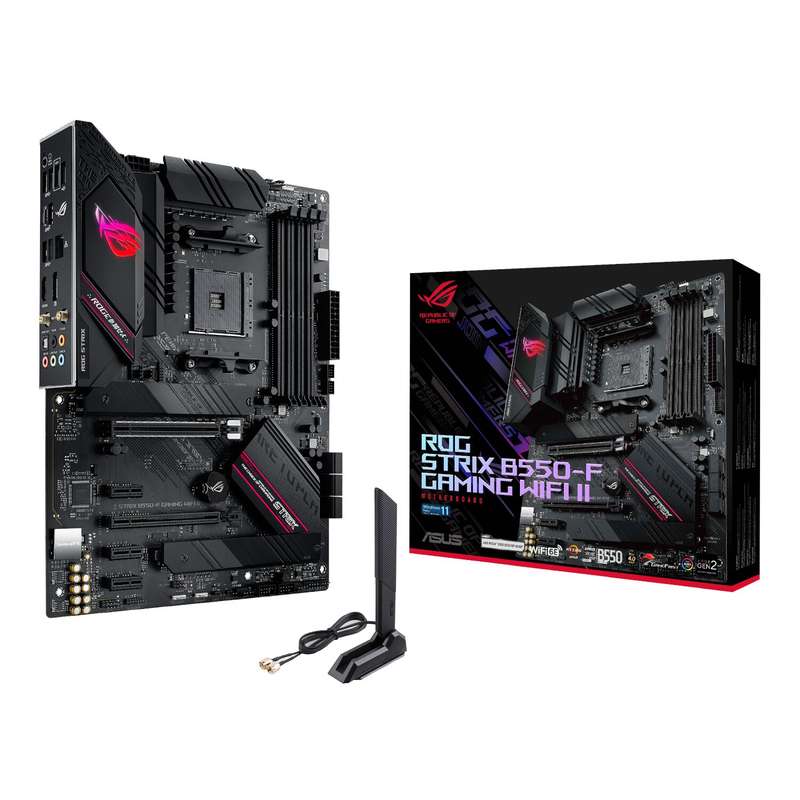

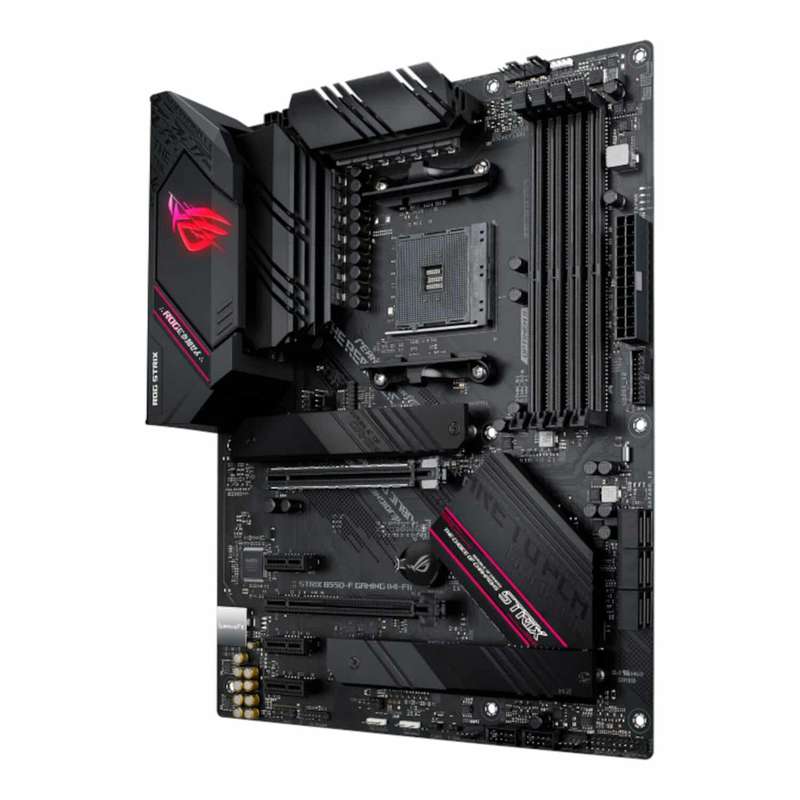

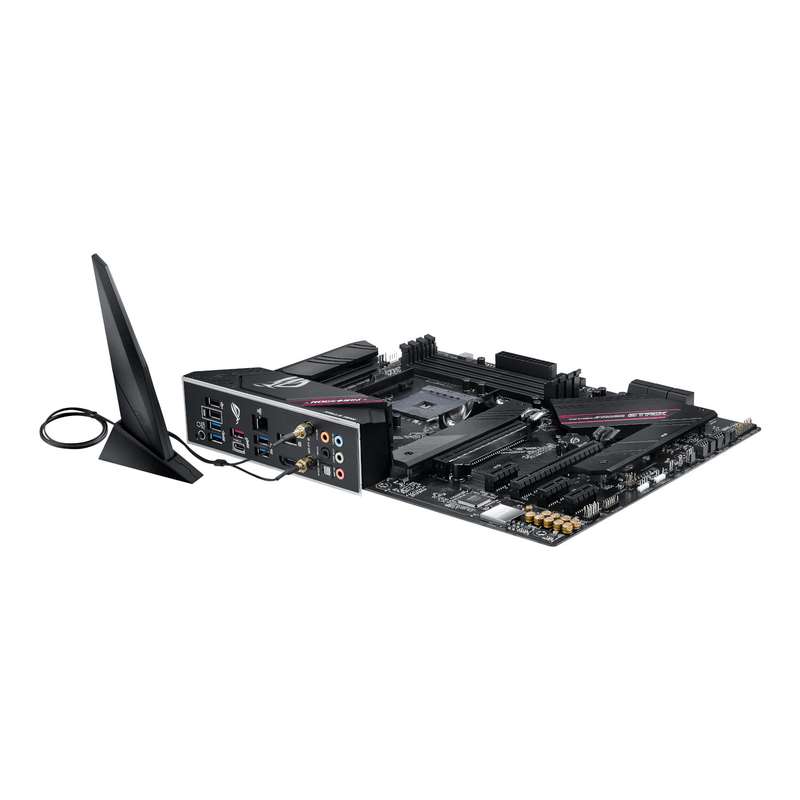

The ROG Strix B550-F Gaming Wi-Fi motherboard offers a refined balance of power, performance, and premium-grade features for serious gamers and PC builders. Built to support 3rd Gen AMD Ryzen processors, this ATX board is powered by a 12+2 DrMOS power stage design, alloy chokes, and durable capacitors, ensuring precise voltage regulation and system stability under load or during overclocking sessions.
Equipped with dual PCIe 4.0 M.2 slots, the ROG Strix B550-F Gaming enables ultra-fast data transfer rates with support for RAID configurations and the latest NVMe SSDs. Four DIMM slots offer support for up to 128GB of DDR4 memory, optimised for high-frequency performance. Intel® I225-V 2.5Gb Ethernet delivers low-latency wired networking, while integrated Intel® Wi-Fi 6 (802.11ax) ensures superior wireless speeds and responsiveness for online gameplay, streaming, and remote workloads.
SupremeFX S1220A audio with DTS® Sound Unbound and Sonic Studio III delivers high-definition audio, creating immersive in-game soundscapes. Intelligent software features such as AI Networking and Fan Xpert 4 simplify system management, while multiple hybrid fan headers, VRM heatsinks, and a PCH heatsink provide robust thermal control.
Connectivity is streamlined with USB 3.2 Gen 2 Type-A and Type-C ports, HDMI 2.1 and DisplayPort 1.2 outputs, and onboard Aura Sync RGB lighting with addressable headers for complete customisation. BIOS FlashBack allows safe firmware updates without a CPU, and the pre-mounted I/O shield ensures a clean, straightforward installation.
The ROG Strix B550-F Gaming Wi-Fi motherboard is an ideal foundation for high-performance AMD builds, offering future-ready architecture, aesthetic customisation, and comprehensive connectivity in one advanced solution.
FEATURES:
Dual M.2 slots support up to PCIe 4.0 speeds
12+2 DrMOS power stages and high-quality alloy chokes ensure stable power delivery
Integrated Wi-Fi 6 delivers next-gen wireless speeds with increased capacity and efficiency
AI networking and BIOS FlashBack, streamlined connectivity and one-click BIOS recovery
Pre-mounted I/O shield and reinforced PCIe slot for simplified installation and enhanced durability
VRM and chipset heatsinks, hybrid fan headers, and Fan Xpert 4 ensure optimal thermal performance
Aura Sync offers customisable RGB lighting, and addressable Gen 2 headers allow synchronised lighting
SupremeFX audio technology provides immersive sound powered by high-fidelity components and DTS® Sound Unbound support
SPECIFICATIONS:
CPU:
Chipset: AMD B550
CPU Compatibility: AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
CPU Socket: LGA1700
Memory Support:
AMD RyzenTM 4000 G-Series Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Memory
4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU
Graphics:
1 x HDMI 2.1(4K@60HZ)
1 x DisplayPort 1.2
Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology
Expansion Slots:
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 4.0 x16 (x16 mode)
Storage:
AMD RyzenTM 4000 G-Series Processors :
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN:
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth:
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Intel® Wi-Fi 6 AX200
Bluetooth v5.1
USB:
Front USB (Total 6 ports)
Rear USB (Total 8 ports)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
2 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
4 x USB 2.0 port(s)
Audio:
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
Optical S/PDIF in port(s) at the back panel
Dual OP Amplifiers
Impedance sense for front and rear headphone outputs
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120dB SNR stereo playback output and 113 dB SNR recording input
Supports up to 32-bit/192 kHz playback
Audio Features
SupremeFX Shielding Technology
Audio Shielding
Premium Japanese audio capacitors
Audio Cover

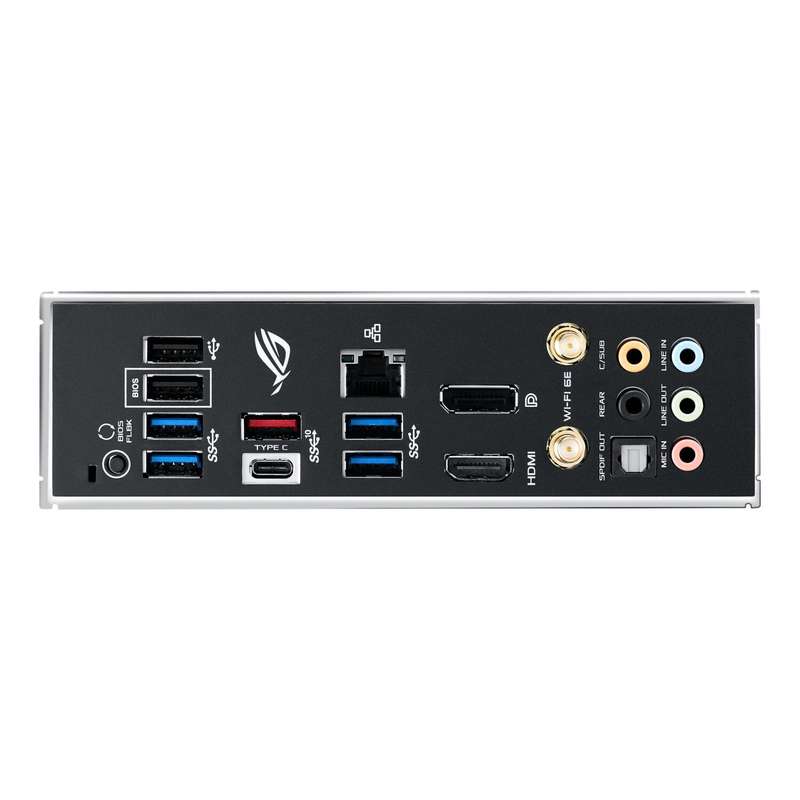

Back Panel I/O Ports:
1 x BIOS FlashBack Button(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
1 x Intel® I225-V 2.5Gb Ethernet
4 x USB 3.2 Gen 1
1 x DisplayPort
1 x HDMI
2 x USB 2.0
1 x Optical S/PDIF out
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
5 x Audio jack(s)
Internal I/O Connectors:
x AAFP connector
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
Special Features:
Aura Sync
Standard RGB header(s)
Addressable Gen 2 RGB header(s)
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green)
ASUS Q-Slot
ASUS Thermal Solution
Aluminium M.2 heatsink
ASUS EZ DIY
BIOS FlashBack button
BIOS FlashBack LED
Clear CMOS header
ProCool
Pre-mounted I/O shield
SafeSlot
Software Features:
ROG Exclusive Software
RAMCache III
ROG CPU-Z
GameFirst VI
Sonic Studio III + Sonic Studio Virtual Mixer
Sonic Radar...
