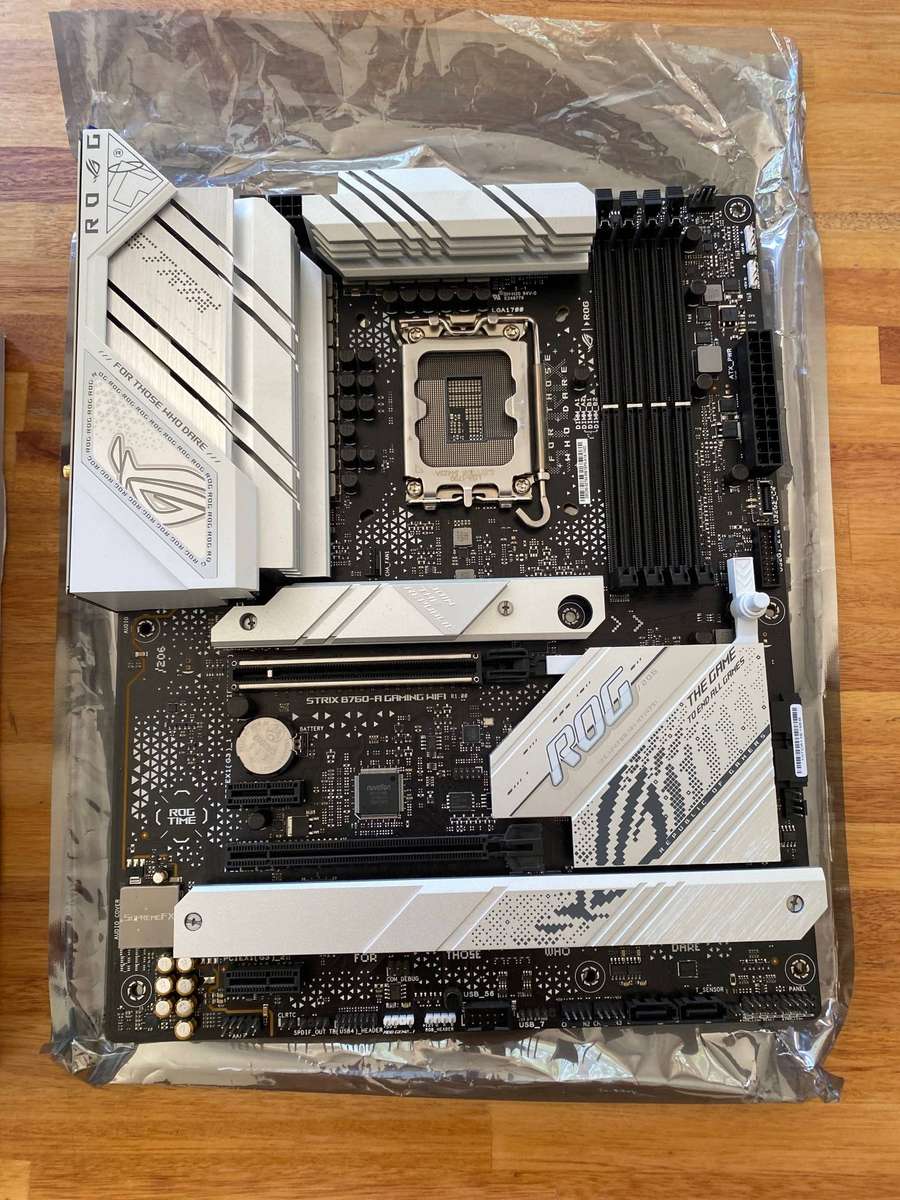

Asus ROG STRIX B760-A Gaming Motherboard

Please note: 1 x ASUS Wi-Fi moving antennas not included.

Motheboard tested and worklng.  18 Month Manufacturer warranty available. Invoice will be provided for warranty purposes.

Specifications

CPU

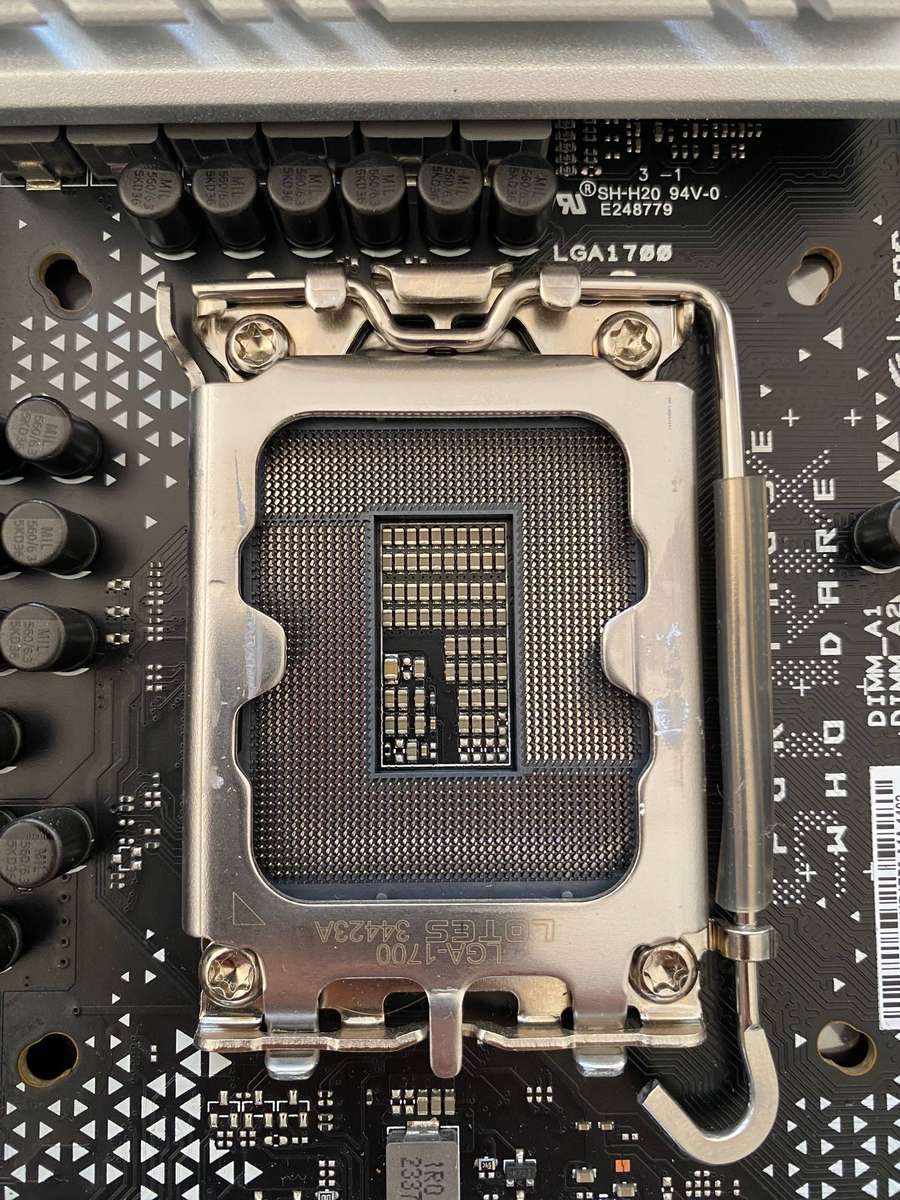

• Intel® Socket LGA1700 for Intel® Core 14th / 13th / 12th Gen, Pentium® Gold & Celeron® Processors

Memory

• 4 × DIMM slots, up to 192GB DDR5

• Supported speeds: DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800

• Supports Intel® XMP & OptiMem II

Expansion Slots

• CPU: 1 × PCIe 5.0 x16

• Chipset:

  • 1 × PCIe 3.0 x16 (x4 mode)

  • 2 × PCIe 3.0 x1
    PCIe x1 slots share bandwidth with PCIe x16(G3); using x1 reduces x16(G3) to x2 mode.

Storage

• Total: 3 × M.2 + 4 × SATA 6Gb/s ports

Ethernet

• 1 × Intel® 2.5Gb Ethernet with ASUS LANGuard

USB

Rear I/O (9 ports):

• 1 × USB 3.2 Gen 2x2 (Type-C®, 20Gbps)

• 1 × USB 3.2 Gen 2 (Type-A, 10Gbps)

• 3 × USB 3.2 Gen 1 (2 × Type-A, 1 × Type-C®)

• 4 × USB 2.0 (Type-A)

Front I/O (6 ports):

• 1 × USB 3.2 Gen 2 (Type-C®, 10Gbps)

• 2 × USB 3.2 Gen 1

• 3 × USB 2.0

Back Panel I/O

• 1 × USB 3.2 Gen 2x2 Type-C®

• 1 × USB 3.2 Gen 2 Type-A

• 3 × USB 3.2 Gen 1 (2 × Type-A, 1 × Type-C®)

• 4 × USB 2.0 Type-A

• 1 × DisplayPort

• 1 × HDMI

• 1 × Intel® 2.5Gb LAN

• 1 × Wi-Fi module

• 5 × Audio jacks

• 1 × BIOS FlashBack button

Internal I/O

Cooling:

• 1 × CPU Fan

• 1 × CPU OPT Fan

• 1 × AIO Pump

• 4 × Chassis Fans

Power:

• 1 × 24-pin ATX

• 1 × 8-pin +12V

• 1 × 4-pin +12V

Miscellaneous:

• 3 × Addressable Gen 2 headers

• 1 × Aura RGB header

• 1 × Clear CMOS

• 1 × Thunderbolt (USB4®) header

• 1 × Front Panel Audio

• 1 × SPDIF Out

• 1 × Thermal Sensor

Form Factor

• ATX (12" x 9.6" / 30.5 cm x 24.4 cm)
