FEATURES:
Centralised control for up to 6 x PWM fans and 6 x ARGB devices
Dual SATA power inputs for stable power under full system load
Supports 108W total PWM and 45W total ARGB power output
Built-in fuses provide short-circuit and overcurrent protection
Magnetic backplate enables fast, tool-free installation
Individual LED indicators display port activity for quick status checks
Ideal for TUF Gaming systems and cross-compatible with other setups
Compact footprint reduces cable clutter and improves airflow
Designed for high-performance builds with synchronised lighting control
SPECIFICATIONS:
Fan Support
6 x 4-pin PWM fan ports
12V rated voltage
2A per port / 9A total
Total PWM Output: 108W
ARGB Support
6 x 3-pin ARGB LED ports
5V rated voltage
2A per port / 9A total
Total ARGB Output: 45W
Power Input
2 x SATA power connectors
Max Ratings: 12V @ 9A, 5V @ 9A
Safety & Indicators
Dual safety fuses
Overcurrent and short-circuit protection
TUF logo LED for power status
Port-specific operational indicators
Physical Dimensions
11.5 x 6.9 x 1.77 cm
Weight: 81.5 g
WHATS IN THE BOX:

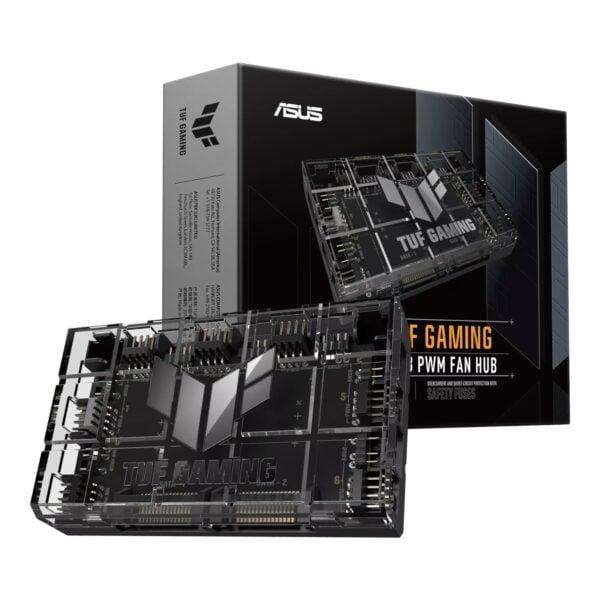

Asus TUF Gaming ARGB PWM Fan Hub x1
SATA Power Cables x2
User Manual x1
