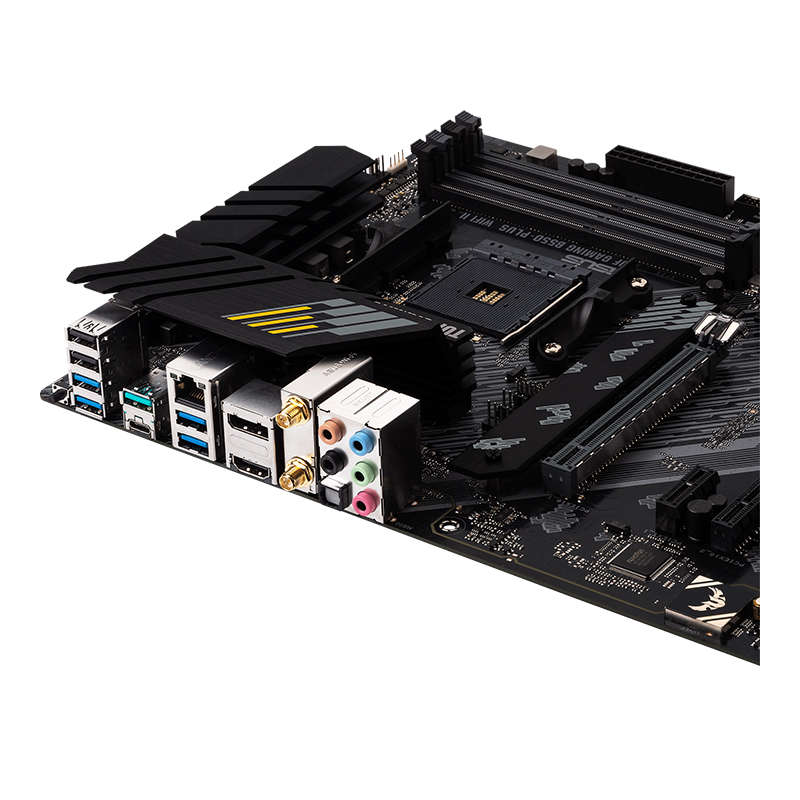

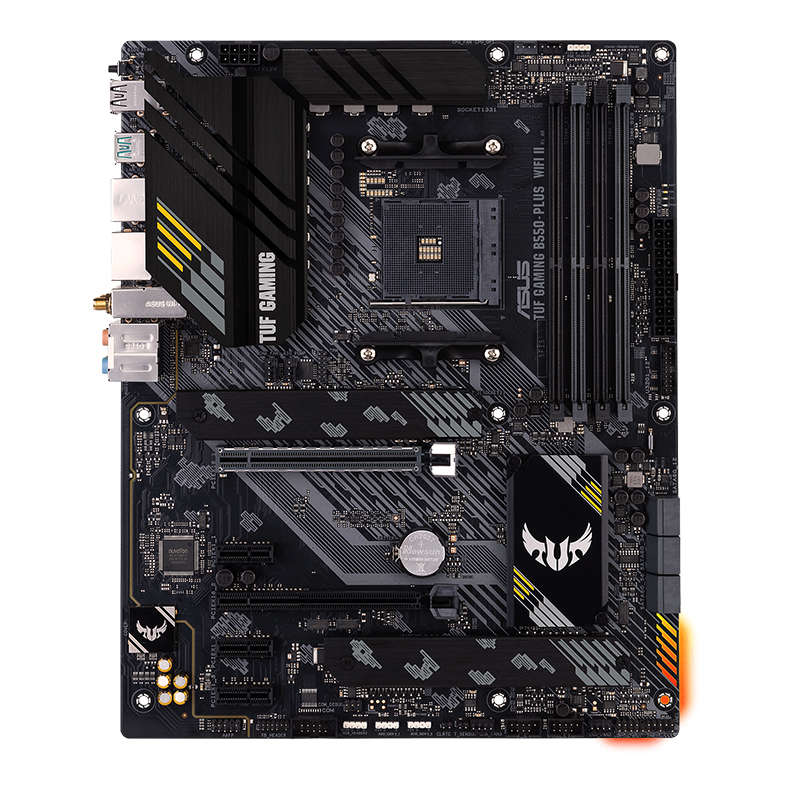

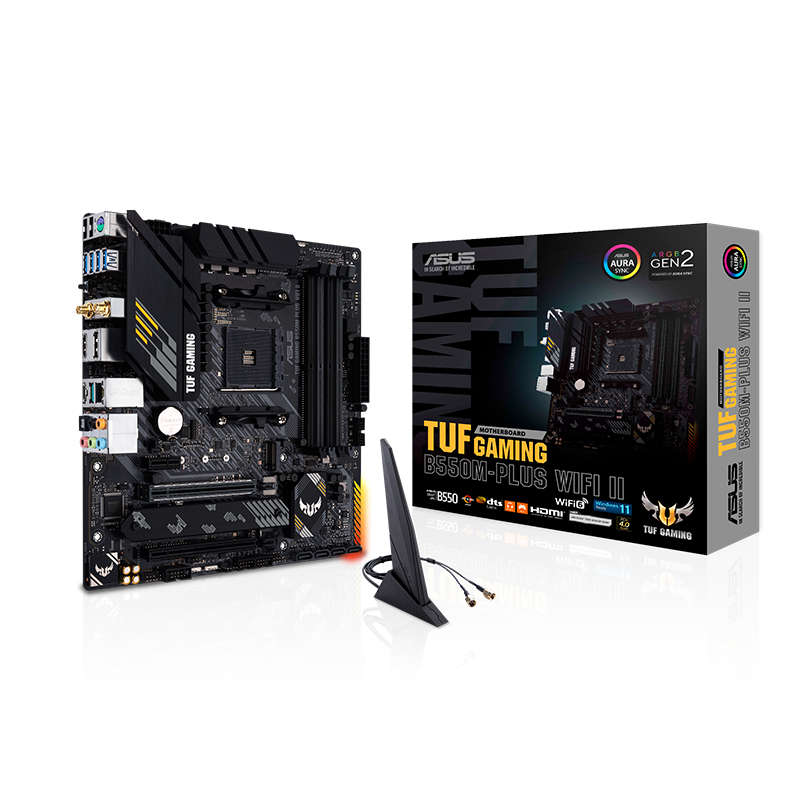

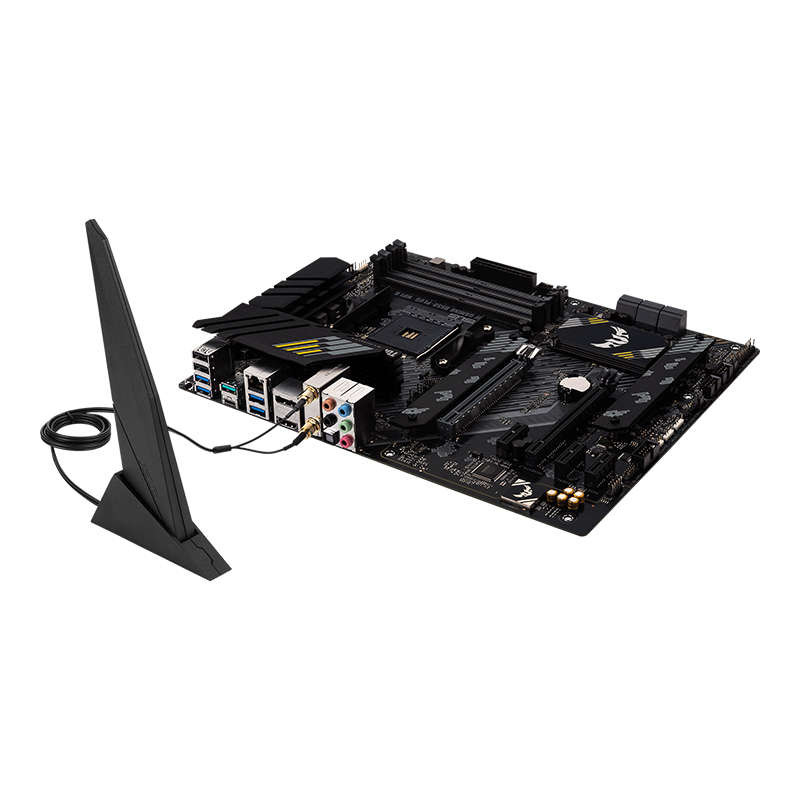

The ASUS TUF Gaming B550M-Plus WiFi II is a micro-ATX motherboard built for durability and performance, catering to gamers and PC builders seeking reliability. Powered by the AMD B550 chipset, it supports the latest AMD Ryzen 5000 series processors and PCIe 4.0, delivering high-speed connectivity and future-proof gaming performance.
Designed for stability, the motherboard boasts military-grade components, an enhanced power solution with 8+2 DrMOS power stages, and comprehensive cooling, including VRM heatsinks and fanless chipset cooling. It features dual M.2 slots, USB 3.2 Gen 2, and onboard WiFi 6 for fast, reliable networking, alongside 2.5 Gb Ethernet for wired connectivity.
With ASUS Aura Sync RGB lighting, robust audio powered by DTS Custom, and TUF components for long-lasting endurance, the TUF Gaming B550M-Plus WiFi II is ideal for building a compact, yet powerful gaming rig. Its blend of performance, durability, and advanced connectivity ensures it's ready for the most demanding games and applications.
FEATURES:
- AMD AM4 socket: Ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and DIGI+ VRM for maximum durability
- Made for online gaming: Wi-Fi 6, Realtek 2.5Gb Ethernet, and TUF LANGuard
- Two-Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
SPECIFICATIONS:
- CPU Compatibility: AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Chipset: AMD B550
- Form Factor: mATX
- Memory:
- DIMM slots: 4
- Memory capacity: 128GB
- Memory types: DDR4, 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory
- Graphics: DisplayPort 1.2 x1 (Supports max. 4K@60Hz), HDMI® 2.1 Port (Supports 4K@60Hz) x1
- Expansion Slots:
- AMD Ryzen 5000/3000 Series Desktop Processors: PCIe 4.0 x16 slot (supports x16 mode) x1
- AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors: PCIe 3.0 x16 slot (supports x16 mode) x1
- AMD B550 Chipset: PCIe 3.0 x16 slot (supports x4 mode) x1, PCIe 3.0 x1 slot x2
- Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
- Ethernet: Intel® 2.5Gb Ethernet x1
- Wireless & Bluetooth: Wi-Fi 6, 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Supports 2.4/5GHz frequency band.

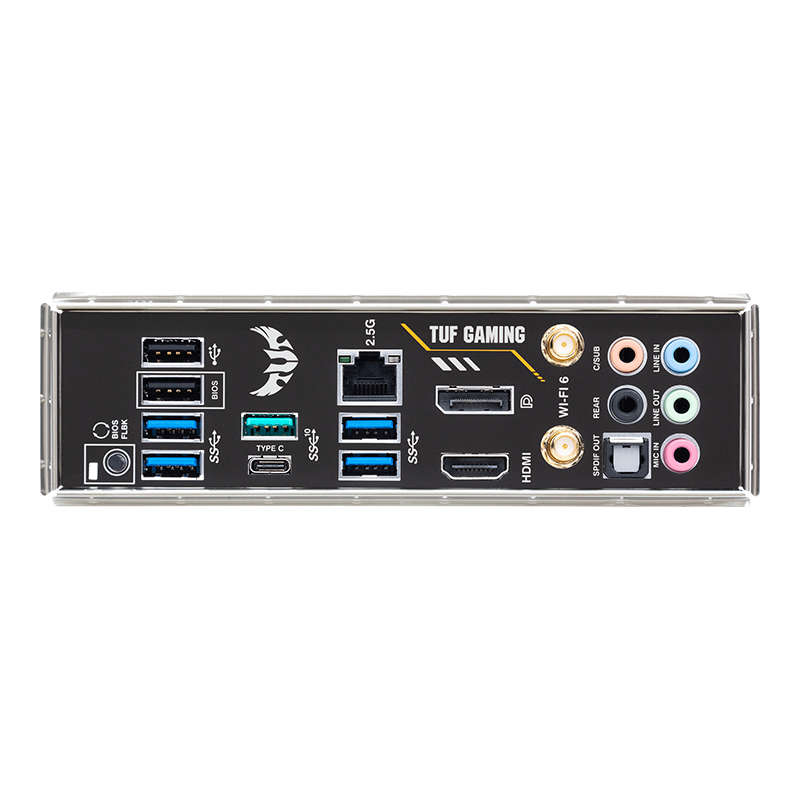

- USB:
- Front USB: 6
- Rear USB: 8
- USB: 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
- Audio: Realtek 7.1 Surround Sound High-Definition Audio CODEC
- Product Dimensions: 24.4cm x 24.4cm

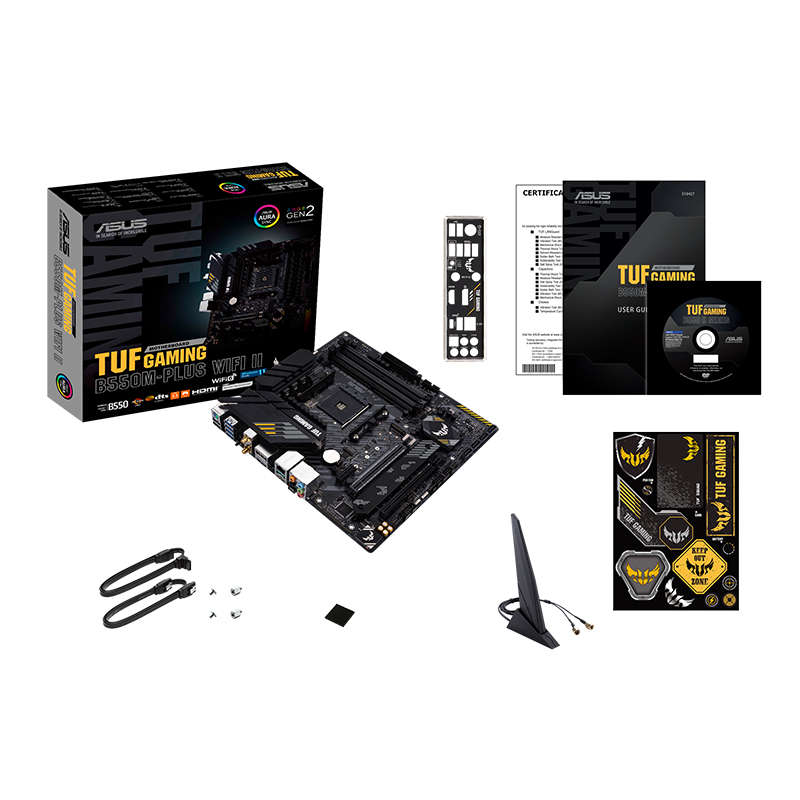

WHAT'S IN THE BOX:
- TUF GAMING B550M-PLUS WIFI II mATX Gaming Motherboard Black x1
