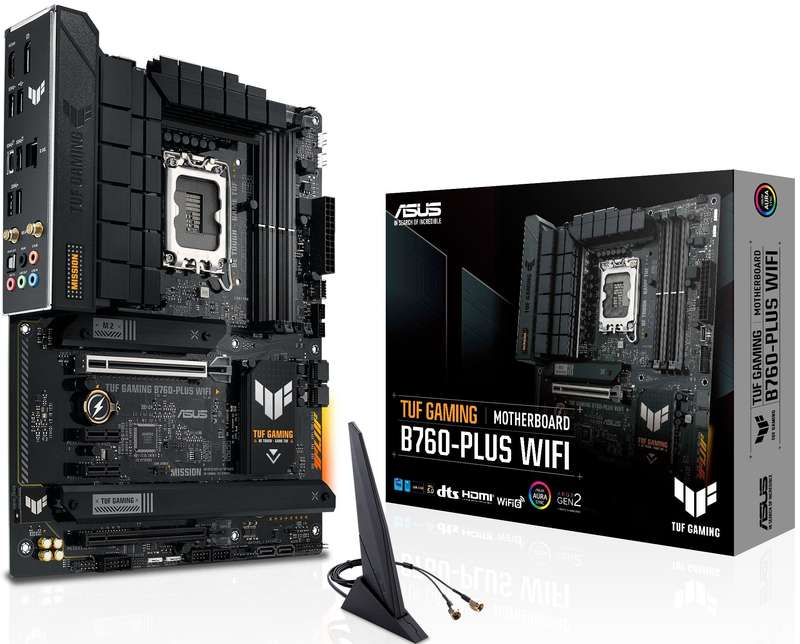

ASUS TUF Gaming B760-Plus Wi-Fi Intel LGA 1700 ATX Motherboard - Intel® Socket LGA1700 for Intel® Core 14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors, Intel® B760 Chipset, 4 x DIMM, Max. 192GB, DDR5, Graphics specifications may vary between CPU types, ntel® Core Processors (14th & 13th & 12th Gen), 1 x PCIe 5.0 x16 slot, otal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports and 1 warranty carry-in.
Product Overview
The ASUS TUF Gaming B760-Plus Wi-Fi motherboard features the Intel B760 chipset with LGA 1700 socket, supporting 12th and 13th Gen Intel Core processors and up to 192GB of DDR5 memory for high-performance gaming and multitasking. It offers PCIe 5.0 slots for next-gen graphics cards, three PCIe 4.0 M.2 slots for fast storage, and robust connectivity including Realtek 2.5Gb Ethernet and Wi-Fi 6. Built with military-grade components and enhanced cooling, this ATX motherboard ensures durability and stable performance for marathon gaming sessions.
Specification
Product Code: 90MB1ER0-M0EAY0
Description: ASUS TUF Gaming B760-Plus Wi-Fi Intel LGA 1700 ATX Motherboard
CPU: Intel® Socket LGA1700 for Intel® Core 14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors
Chipset: Intel® B760 Chipset
Memory: 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory
Graphics: Graphics specifications may vary between CPU types
Expansion Slots: Intel® Core Processors (14th & 13th & 12th Gen), 1 x PCIe 5.0 x16 slot
Intel® B760 Chipset, 1 x PCIe 3.0 x16 slot, 2 x PCIe 3.0 x1 slots.
Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2
Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
-Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
Audio Features
-Audio Shielding
-Rear optical S/PDIF out port
-Premium audio capacitors
-Dedicated audio PCB layers
-Audio cover
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor: ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty: 1 year
