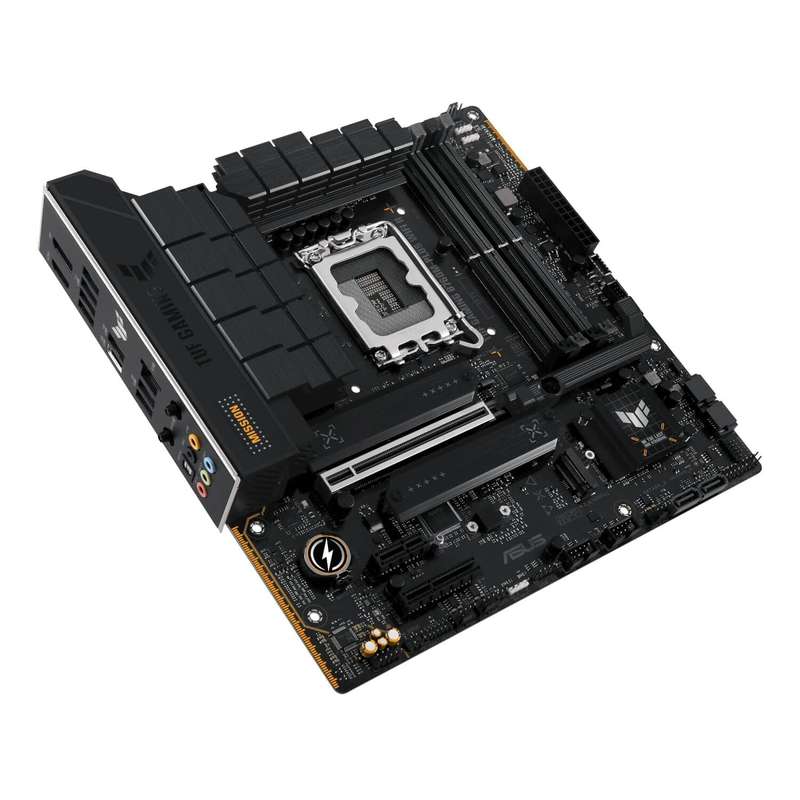

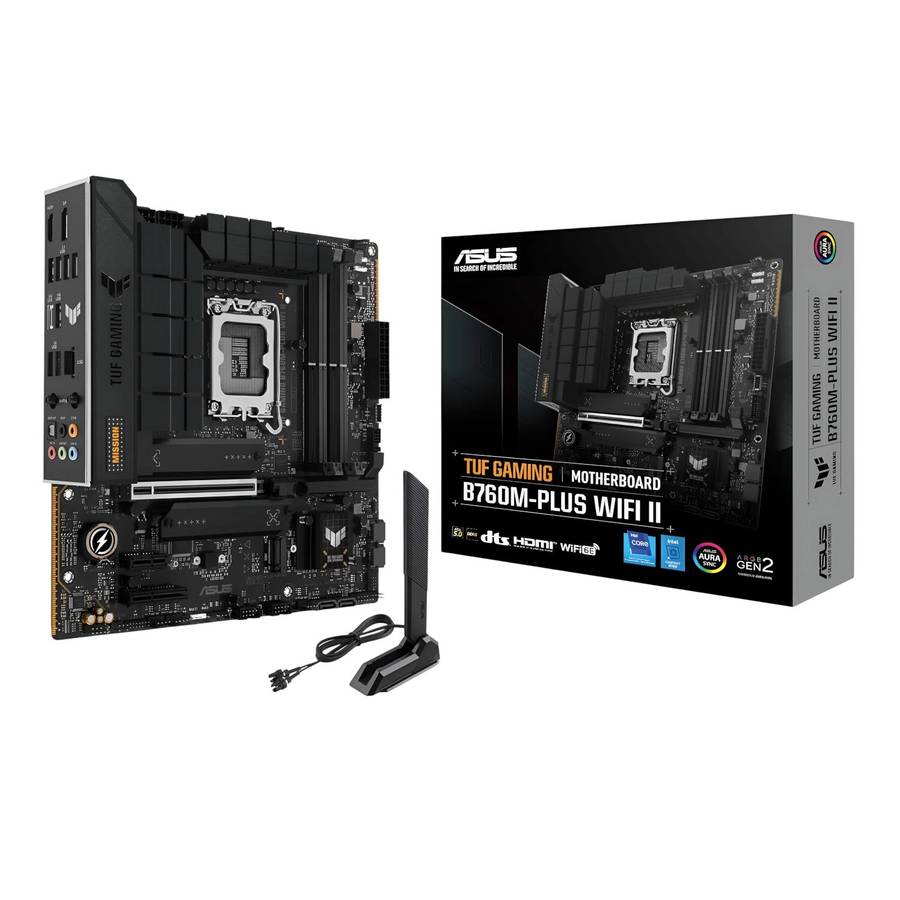

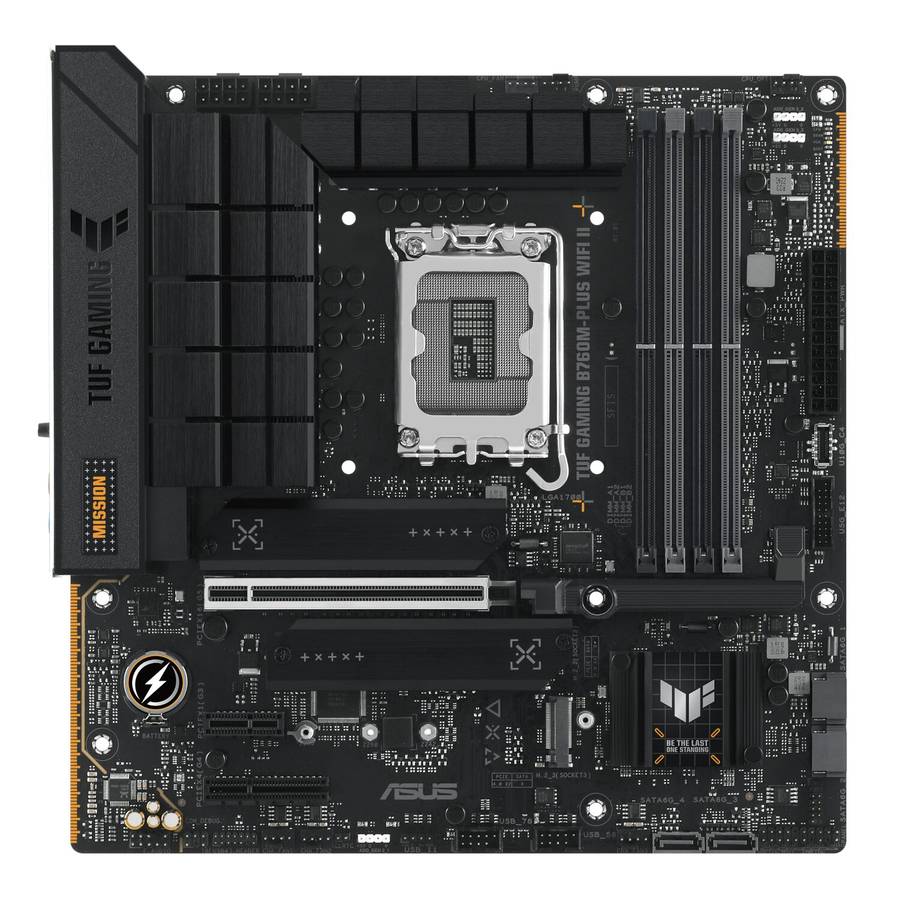

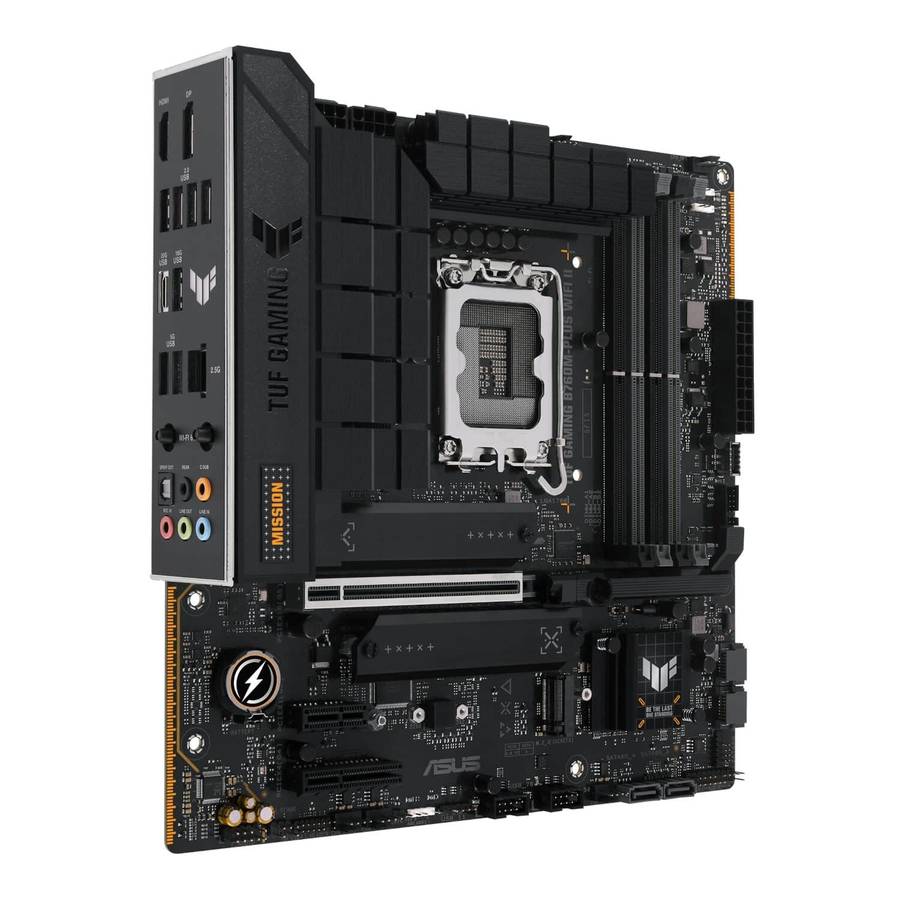

The Asus TUF Gaming B760M-PLUS WIFI II is a robust micro-ATX Motherboard that delivers exceptional durability, advanced performance, and rock-solid stability for 14th,13th and 12th Gen Intel® Core processors. Engineered with military-grade components and TUF-tested reliability, it caters to competitive gamers, PC builders, and performance-driven users seeking a balance between next-gen features and dependable construction.
At its core, the Asus TUF Gaming B760M-PLUS Motherboard features a 12+1 DrMOS power stage VRM architecture, enlarged VRM heatsinks, and a six-layer PCB design to ensure stable power delivery under high-load conditions. It supports DDR5 memory for faster data throughput, lower power consumption, and superior multitasking capabilities. PCIe® 5.0 support unlocks future-ready bandwidth for the latest GPUs, while dual PCIe 4.0 M.2 slots with M.2 Q-Latch simplify high-speed SSD installation.
Seamless connectivity is a cornerstone with integrated Wi-Fi 6E ensuring low-latency wireless networking across the 6 GHz spectrum, while the Intel® 2.5 Gb Ethernet port offers ultra-fast wired connections. Comprehensive cooling controls include hybrid fan headers, AI-powered Fan Xpert 2+ software, and precision thermal monitoring to maintain optimal system performance.
Built for DIY ease, it includes a pre-mounted I/O shield, Q-LED diagnostic indicators, and ASUS SafeSlot Core+ for reinforced GPU retention. The rugged design aesthetic is complemented by support for ASUS Aura Sync RGB lighting, allowing users to personalise builds with unified lighting control. Whether you're building a compact gaming rig or a high-efficiency workstation, the Asus TUF Gaming B760M-PLUS WIFI II - mATX Motherboard delivers a future-proof platform tailored for speed, stability, and endurance.
FEATURES:
Intel® LGA1700 socket supports 14h & 13th Gen Intel® Core, 12th Core, Pentium® Gold, and Celeron® processors
12+1 DrMOS power stages and durable components ensure reliable, stable performance for demanding workloads.
DDR5 memory supports advanced multitasking and gaming responsiveness
Next-gen PCIe® 5.0 support provides ultra-high bandwidth for the latest GPUs, enhancing visual performance and data throughput
Dual PCIe 4.0 M.2 slots support NVMe SSDs for ultra-fast game and application loading times
Wi-Fi 6E connectivity delivers high-speed, low-latency wireless networking across the 6 GHz band
Intel® 2.5Gb Ethernet provides high-speed wired networking ideal for streaming, competitive gaming, and heavy data transfers
Enlarged VRM heatsinks, hybrid fan headers, and Fan Xpert 2+ software maintain thermal efficiency under load
Military-grade components and six-layer PCB ensure long-term reliability and enhanced power integrity
DIY-friendly design includes pre-mounted I/O shield, M.2 Q-Latch, SafeSlot Core+, and Q-LED indicators
ASUS Aura Sync RGB support offers customisable lighting synchronisation with compatible components
Armoury Crate centralised software for performance tuning, RGB control, and real-time system monitoring
SPECIFICATIONS:
CPU:
Chipset: Intel® B760 Chipset
CPU Compatibility: Supports Intel® 14th,13th & 12th Gen Core, Pentium® Gold and Celeron® Processors
CPU Socket: LGA1700
Memory Support:
4 x DIMM slots, up to 192GB total
DDR5 7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 MHz
Dual-channel architecture
Intel® Extreme Memory Profile (XMP) support
Graphics:
1 x DisplayPort
1 x HDMIport
Expansion Slots:
Intel® CoreTM Processors (14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 3.0 x1 slot
Storage:
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® CoreTM Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet: 1 x Realtek 2.5Gb ethernet TUF LANGuard
Wireless & Bluetooth:
2x2 Wi-Fi 6E (802.11ax)
Bluetooth® v5.3 (2.4/5/6GHz)
USB:
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-bit/192 kHz playback
Audio Features
Audio Shielding
Rear optical S/PDIF out port
Premium audio capacitors
Dedicated audio PCB layers

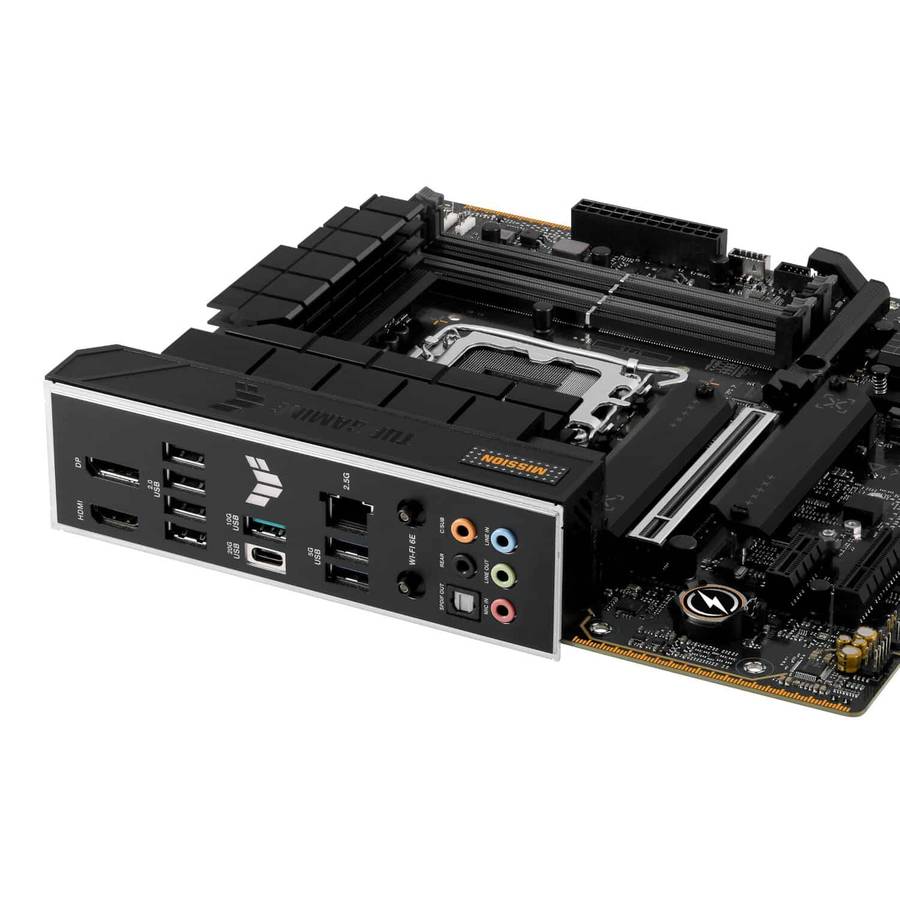

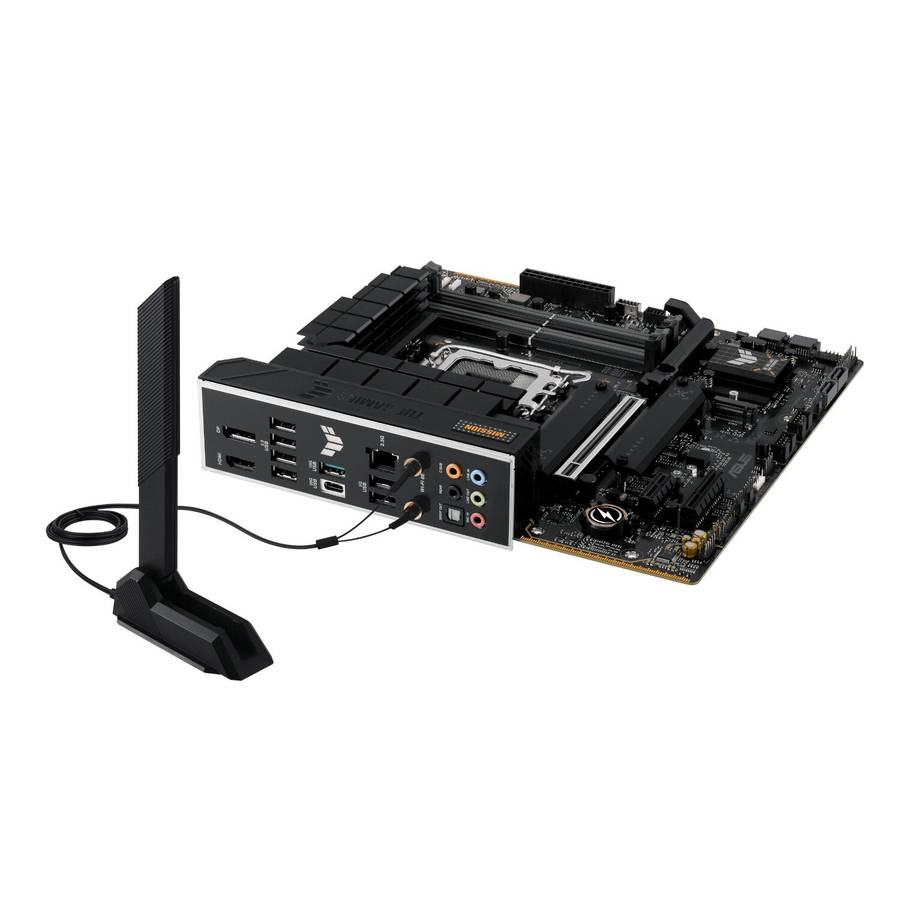

Back Panel I/O Ports:
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors:
I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
3 x USB 2.0 headers support 5 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4®) header
Special Features:
ASUS TUF PROTECTION
DIGI+ VRM (- Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot Core+
Stainless-Steel Back I/O
ASUS Q-Design
M.2 Q-Latch
PCIe Slot Q-Release
Q-Antenna
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
M.2 heatsinks
VRM heatsink design
ASUS EZ DIY
CPU Socket lever protector
ProCool
Pre-mounted I/O shield
SafeDIMM
AURA Sync
Addressable Gen 2 headers
Software Features:
ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 2+
Power Saving
Two-Way AI Noise Cancellation
AI Suite 3
DIGI+ VRM
PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
U...
