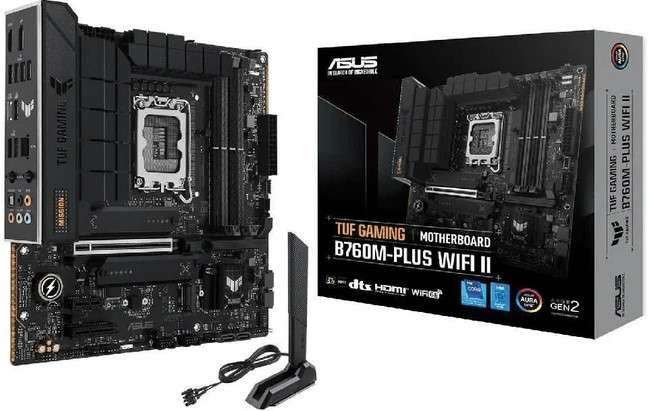

Asus TUF Gaming B760M-PLUS WIFI II LGA 1700 Micro ATX Motherboard - Compatible with Intel® Socket LGA1700 for Intel® Core 14th & 13th Gen Processors, Intel® Core 12th Gen, Pentium® Gold and Celeron® , Intel® B760 Chipset, 4 x DIMM slots Memory, Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports.
Product Overview
The Asus TUF Gaming B760M-PLUS WIFI II is a durable microATX motherboard designed for Intel® LGA1700 socket, supporting 14th, 13th, and 12th Gen Intel® Core, Pentium® Gold, and Celeron® processors. It features the Intel® B760 chipset, 4 DDR5 DIMM slots supporting up to 192GB memory, and robust storage options with 3 M.2 slots plus 4 SATA 6Gb/s ports. Equipped with PCIe 5.0, Wi-Fi 6E, 2.5Gb Ethernet, and comprehensive cooling solutions, it delivers stable, high-performance gaming and computing experiences.
Specifications
Product Code: 90MB1HE0-M0EAY0
Description: ASUS TUF Gaming B760M-PLUS WIFI II Intel LGA 1700 micro ATX Motherboard
CPU: Intel® Socket LGA1700 for Intel® Core 14th & 13th Generations, Intel® Core 12th Gen, Pentium® Gold and Celeron® Processors
Chipset: Intel® B760 Chipset
Memory: 4 x DIMM slots, Max. 192GB DDR5, Dual Channel Memory Architecture
Graphics: 1 x DisplayPort, 1 x HDMI port and Graphics specifications may vary between CPU types.
Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x4 slot, 1 x PCIe 4.0 x4 slot.
Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Ethernet: 1 x Realtek 2.5Gb Ethernet, TUF LANGuard
Wireless & Bluetooth: Wi-Fi 6E, 2x2 Wi-Fi 6E (802.11ax), Supports 2.4/5/6GHz frequency band, Bluetooth® v5.3.
USB: 1 x USB 20Gbps port (1 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 4 x USB 2.0 ports (4 x Type-A)
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
-Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
Audio Features
-Audio Shielding
-Rear optical S/PDIF out port
-Premium audio capacitors
-Dedicated audio PCB layers
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE
Form Factor: mATX Form Factor, 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Operating System: Windows® 11, Windows® 10 64-bit
