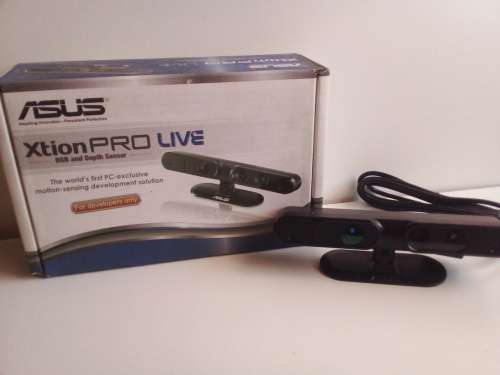

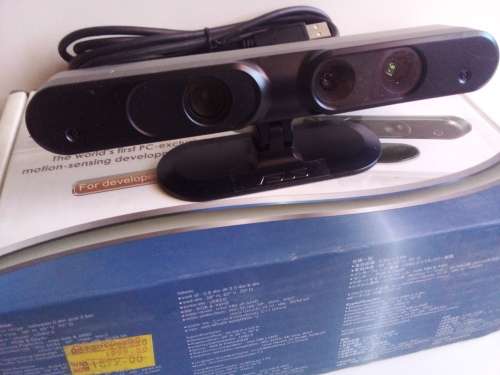

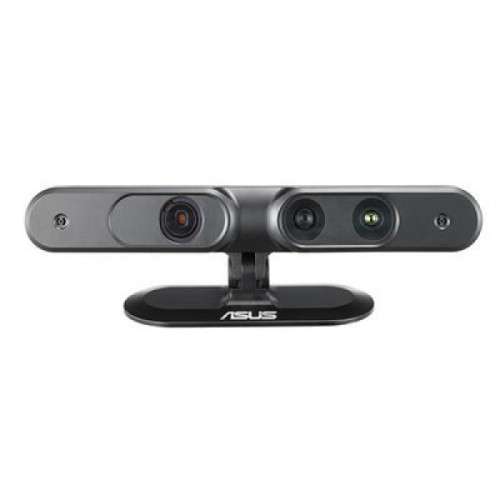

Asus Xtion Pro Live RGB and Depth Sensor

Asus Xtion PRO LIVE uses infrared sensors, adaptive depth detection technology, color image sensing and audio stream to capture a users' real-time image, movement, and voice, making user tracking more precise. The Xtion PRO LIVE development solution comes with a set of developer tools to make it easier for developers to create their own gesture-based applications without the need to write complex programming algorithms.

1. Gesture detection: The Xtion PRO LIVE development solution tracks people's hand motions without any delay, which turns your hand into a controller. It has more than 8 predefined poses to allow you to push, click, circle, wave and much more perfect for use controlling a user interface. Based off this function, it can be widely developed into various types of applications, saving developers time and effort for developing software.
2. Whole body detection: The Xtion PRO LIVE development solution allows developers to track a users' whole body movement, which makes it ideal for whole body gaming, while also supporting multiple player recognition.
3. RGB: Xtion PRO LIVE enables color (RGB) image sensing. With RGB, Xtion PRO LIVE can capture the users image, which is useful for human detection, digital signage, security system and more applications to be created.
4. Audio: Audio stream allows support for voice control and any other voice recognition applications. Video conferencing at the office and home are also possible together with the RGB function

In addition, the Xtion PRO series also supports the Unity3D game engine to make game/app development easier. With Xtion PRO series, developers are offered more options and tools to develop their own applications. Let your imaginations and applications run wild!

SPECIFICATION

Power Consumption: Below 2.5W

Distance of Use: Between 0.8m and 3.5m

Field of View: 58° H, 45° V, 70° D (Horizontal, Vertical, Diagonal)

Sensor: RGB& Depth& Microphone*2

Depth Image Size: VGA (640x480) : 30 fps, QVGA (320x240): 60 fps

Resolution: SXGA (1280*1024)

Platform: Intel X86 & AMD

OS Support: Win 32/64 : XP, Vista, 7, Linux Ubuntu 10.10: X86,32/64 bit, Android(by request)

Interface: USB2.0

Software: Software Development Kits(OPEN NI SDK Bundled)

Programming Language: C++/C# (Windows), C++(Linux), JAVA

Operation Environment: Indoor

Dimensions: 18 x 3.5 x 5 inch.
