• ASUS 5X Protection - All-round protection provides the best quality, reliability, and durability
• New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
• Fan Xpert 2 - Comprehensive controls for the perfect cool and quiet balance
• USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
• Ai Suite 3 - One-stop access to innovative ASUS features

• CPU Support
  Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® Z87 (for overclocking CPU & RAM)
• Memory
  4 x DIMM, Max. 32GB, DDR3 2933(O.C.)/2800(O.C.)/2666(O.C.)/2600(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : HDMI/DVI/RGB ports
  - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  Supports up to 3 displays simultaneously
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
  1 x PCIe 2.0 x16 (x4 mode, dark brown)
  2 x PCIe 2.0 x1
  3 x PCI
• Storage
  Intel® Z87 chipset :
  6 x SATA 6Gb/s port(s), yellow,
  Support Raid 0, 1, 5, 10
  Supports Intel® Dynamic Storage Accelerator, Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology*¹
• LAN
  Realtek® 8111GR, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *²
  - Supports : Jack-detection, Front Panel Jack-retasking
• USB Ports
  Intel® Z87 chipset :
  4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® Z87 chipset :
  10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
• Special Features
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - TurboV EVO
  - GPU Boost
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution & MOS Heatsink
  - ASUS Fan Xpert 2
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  ASUS Q-Design :
  - ASUS Q-Slot

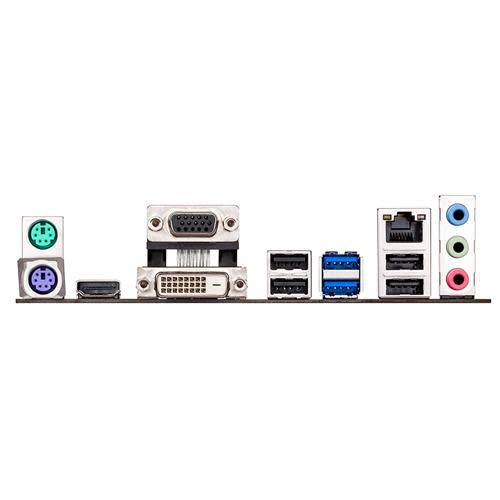

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 1
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
• Accessories
  User's manual
  ***I/O Shield NOT INCLUDED
  2 x SATA 6Gb/s cable(s)
• BIOS
  64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)

BIOS HAS BEEN UPDATED TO SUPPORT DEVIL'S CANYON CPU'S.
