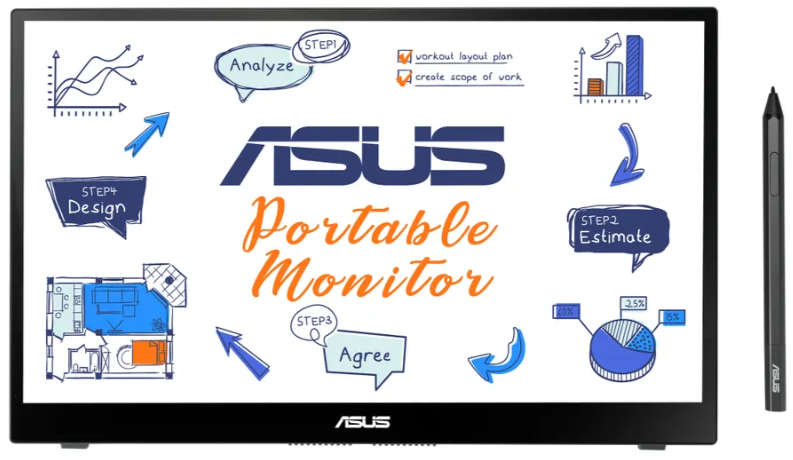

ASUS ZenScreen Ink MB14AHD portable monitor – 14-inch

The ASUS ZenScreen Ink MB14AHD is a 14-inch portable monitor with Full HD (1920 x 1080) resolution, an IPS panel, 10-point touch support, a Stylus Pen, USB Type-C, Micro HDMI, an ergo kickstand, tripod socket, and ASUS Flicker-Free and Low Blue Light technologies.
(*Requires device with USB-C DP Alt mode)

• 14-inch FHD (1920 x 1080) IPS portable monitor with 10-point touch and active stylus support
• MPP 2.0 stylus with 4096-level pressure sensitivity and low latency for precise and exceptional writing experiences
• Rich connectivity with two USB-C® (DP Alt mode) and micro HDMI®
• Integrated stepless kickstand offers up to 150° of hinge movement in both landscape and portrait orientation to suit different scenarios
• Built-in ¼"-threaded socket for compatibility with a standard tripod

Touch and Stylus Functionality:

• The monitor supports 10-point touch, making it highly responsive for editing documents, drawing, or playing games using your fingertips.
• The included ASUS Pen features MPP 2.0 technology and 4096 pressure levels, ensuring precise and lag-free writing and drawing experiences.
• Note that touch and stylus functionality work only in Windows.

Portable Design:

• ZenScreen Ink is a perfect companion for taking notes, drawing, or signing documents while on the move.
• You can use it as an extended display to enhance productivity or for hands-free tasks.

ASUS Pen:

• The ASUS Pen is an essential accessory for ZenScreen Ink.
• It supports Microsoft Pen Protocol (MPP) 2.0 and offers 4096-level sensitivity.
• The pen attaches magnetically to the top of the monitor and lasts up to a year on a single battery charge*.

Flexible Viewing Positions:

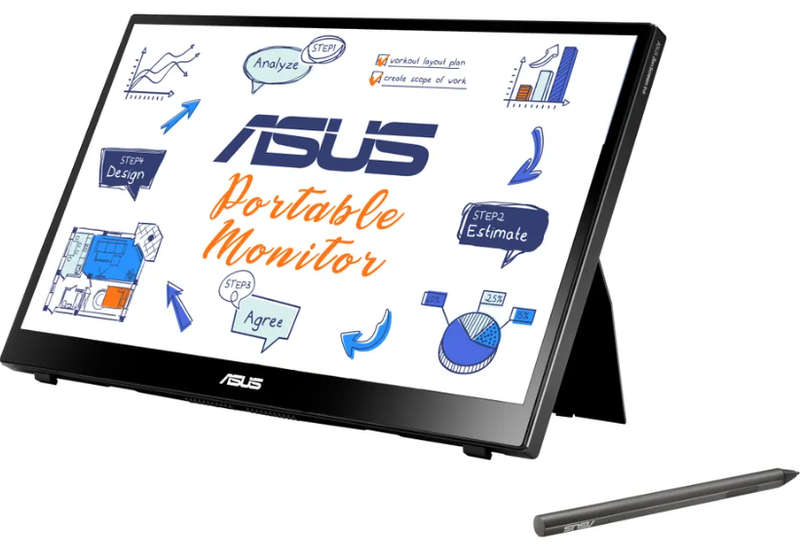

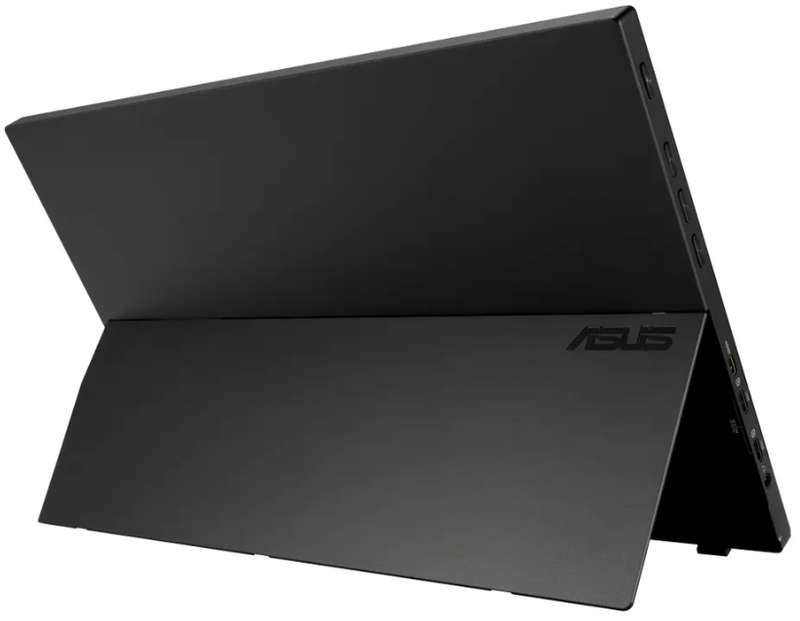

• The built-in stepless kickstand allows you to use ZenScreen Ink in both landscape and portrait modes.
• The hinge provides up to 150° of movement, adapting to various touch or writing scenarios.
• An integrated tripod socket further enhances flexibility.

Automatic Screen Orientation:

• When connected to a Windows PC, the ASUS DisplayWidget Lite tool* automatically adjusts the display between landscape and portrait modes.
• Landscape mode is ideal for presentations and spreadsheets, while portrait mode suits documents, books, or websites.

Rich Connectivity:

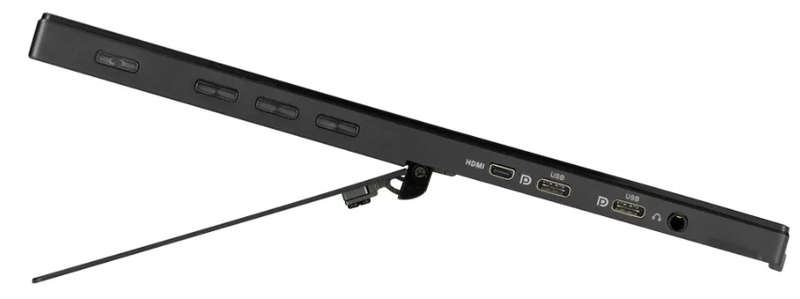

• ZenScreen Ink features a Micro HDMI® port and two USB-C® ports with DisplayPort Alt Mode.
• These ports allow quick connections to compatible devices, and the USB-C ports can also be used for power input.

ASUS Blue Light Filter:

• The TÜV Rheinland-certified Blue Light Filter protects your eyes from harmful blue light.
• You can adjust it seamlessly via the OSD menu (from 0 to Maximum).

Remember that the ASUS Pen and 10-point touch functionality are specific to Windows operating systems.

Model:

• ZenScreen Ink MB14AHD

Display:

• Panel Size (inch): 14
• Aspect Ratio: 16:9
• Display Viewing Area (H x V): 309.37 x 174.02 mm
• Display Surface: Glare
• Backlight Type: LED
• Panel Type: IPS
• Viewing Angle (CR?10, H/V): 170°/170°
• Pixel Pitch: 0.161mm
• Resolution: 1920x1080
• Brightness (Typ.): 220cd/?
• Contrast Ratio (Typ.): 800:1
• Display Colors: 262K
• Response Time: 5ms(GTG)
• Refresh Rate (Max): 60Hz
• Touch: PCT + MPP2.0 Active Pen
• Protection Glass: Yes
• Flicker-free: Yes

Video Feature:

• Trace Free Technology: Yes
• SPLENDID Technology: Yes
• Color Temp. Selection: Yes (4 modes)
• GamePlus: Yes
• QuickFit: Yes
• HDCP: Yes, 1.4
• DisplayWidget: Yes
• Low Blue Light: Yes

I/O Ports:

• USB-C x 2 (DP Alt Mode)
• Micro HDMI x 1
• Earphone Jack: Yes

Signal Frequency:

• Digital Signal Frequency:
  • HDMI: 24KHz~83KHz
  • USB-C: 83KHz

Power Consumption:

• Power Consumption: 8.21 W
• Power Saving Mode: <0.5W
• Power Off Mode: <0.3W
• Voltage: 100-240V, 50/60Hz

Mechanical Design:

• 1/4" Tripod Socket: Yes
• Dimensions (Esti.):
  • Phys. Dimension without Stand (W x H x D): 32.42 x 20.12 x 1.25 cm (12.76" x 7.92" x 0.49")
  • Box Dimension (W x H x D): 45.40 x 31.00 x 7.80 cm (17.87" x 12.20" x 3.07")
• Weight (Esti.):
  • Net Weight without Stand: 0.87 kg (1.92 lbs)
  • Gross Weight: 2.64 kg (5.82 lbs)

Accessories (vary by regions):

• ASUS Pen (MPP2.0)
• Micro HDMI to HDMI cable
• Power adapter
• Quick start guide
• USB-C cable
• USB-C to A cable
• Warranty Card
• ZenScreen sleeve

Certificates:

• TÜV Flicker-free
• TÜV Low Blue Light

Notes:

• The battery for the stylus pen is included; remember to remove the isolation sheet in the stylus pen before first use.
• The stylus pen uses AAAA batteries.
• The warranty period for the stylus pen is 12 months.
