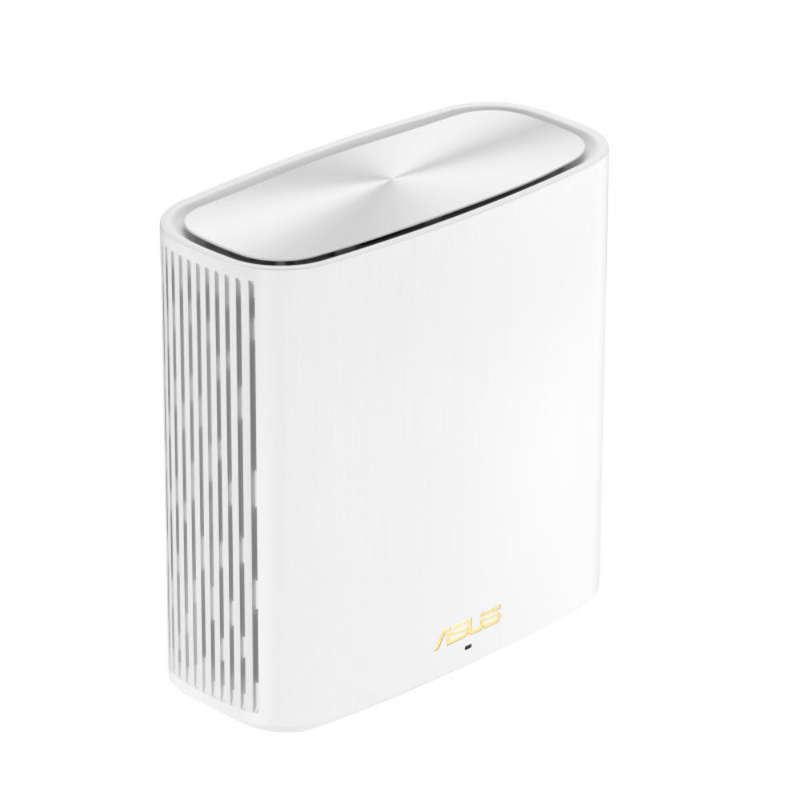

Whole-home Coverage
The ZenWiFi XD6 series system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections inside or outside your home! Designed for homes up to 500 square meters in size.
Smart & Flexible Backhaul Configuration
ASUS ZenWiFi XD6 series give you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection.
Easier-than-ever Setup
3-step setup with the ASUS Router app
Turn on ZenWiFi XD6 series products
Create a WiFi network name and an admin account
Wait for several minutes, and you're done!
What makes ZenWiFi XD6 series setup so easy?
One-time setup, with auto synchronization for all the hubs in each package
Hassle-free: each unit can work as the main router or an extender node
Specifications
Network Standard
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- IPv4
- IPv6
Product Segment: AX5400 ultimate AX performance : 574+4804 Mbps
Data Rate
- 802.11a: up to 54 Mbps
- 802.11b: up to 11 Mbps
- 802.11g: up to 54 Mbps
- WiFi 4 (802.11n) (1024QAM): up to 500 Mbps
- WiFi 5 (802.11ac) (1024QAM): up to 4333 Mbps
- WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
- WiFi 6 (802.11ax) (5GHz): up to 4804 Mbps
- Antenna: internal antenna x 6
- Transmit/Receive
- 2.4GHz 2x2
- 5GHz 4x4
- Processor: 1.5 GHz tri-core processor
- Memory
- 128 MB Flash
- 512 MB RAM
- Boosts speed
- OFDMA (Orthogonal Frequency Division Multiple Access)
- 1024-QAM high data rate
- 20/40/80/160 MHz bandwidth
- Operating Frequency: 2.4 G Hz / 5 GHz

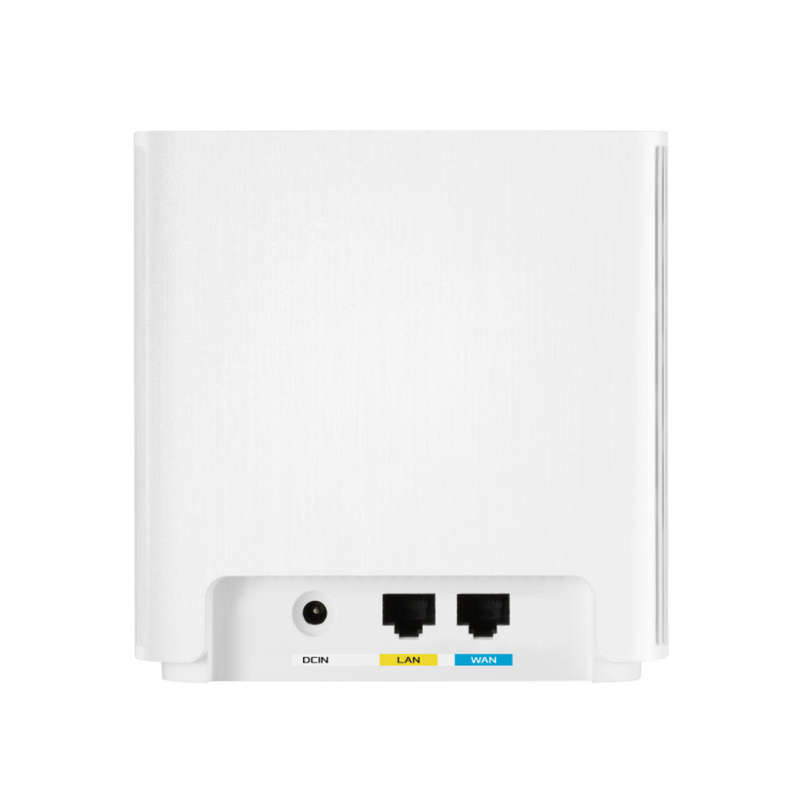

Ports
- RJ45 for Gigabits BaseT for WAN x 1
- RJ45 for Gigabits BaseT for LAN x 1
- Button: WPS Button, Reset Button
- LED Indicator: Power x 1
- Power Supply
- AC Input: 110V~240V(50~60Hz)
- DC Output: 12 V with max. 2 A current
Package content
- ZenWiFi XD6S
- RJ-45 cable
- Power adapter
- Warranty card
- Quick start guide
