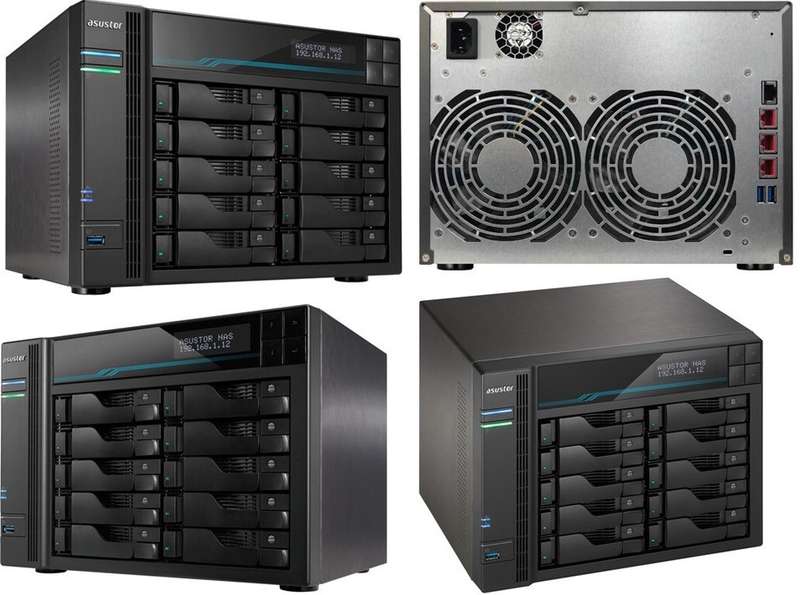

Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network Attached Storage, 3.4GHz Quad-Core, One 10GbE Port, Three 2.5GbE Ports, Two M.2 Slots for NVMe SSD Cache, 8GB RAM DDR4 (10 Bay Diskless NAS), Retail Box, 1 year warranty
The Asustor Lockerstor 10 Pro AS7110T Series offers enterprise-level network storage with a powerful 3.4GHz quad-core processor, 8GB DDR4 RAM, and extensive connectivity including one 10GbE port and three 2.5GbE ports, alongside dual M.2 slots for NVMe SSD cache, providing high-speed data access and storage flexibility for demanding applications.
Product code: AS7110T
Description: Asustor Lockerstor 10 Pro AS7110T Series Enterprise Network Attached Storage
Number of Bays
10x 2.5"/3.5"
2x M.2 (2280)
Inputs/Outputs
2x USB-A 3.1/3.2 Gen 2
1x USB-A 3.0 / 3.1/3.2 Gen 1
3x RJ45 2.5GbE
1x RJ45 10GbE
Compatible Drive Interface: SATA III, NVMe
RAID: RAID 0/1/5/6/JBOD
CPU: Quad-Core: 3.4 to 4.6 GHz
Processor: Intel Xeon E-2224
Total Installed Memory: 8 GB ECC DDR4
User-Replaceable Memory: 1x 8 GB
Total Memory Slots: 2x SO-DIMM
Flash Memory: 8 GB eMMC
Number of Bays
10x 2.5"/3.5"
2x M.2 (2280)
Inputs/Outputs
2x USB-A 3.1/3.2 Gen 2
1x USB-A 3.0 / 3.1/3.2 Gen 1
3x RJ45 2.5GbE
1x RJ45 10GbE
Compatible Drive Interface
SATA III, NVMe
Maximum Capacity
With Drives Installed up to 180 TB
With Drives Installed up to 396 TB (with Expansion)
RAID: RAID 0/1/5/6/JBOD
Wake on LAN: Yes
Link Aggregation and Failover Support: Yes
iSCSI LUN: 256
iSCSI Target: 256
Max Concurrent Connections: 2048
Max Folders: 512
Max Groups: 512
Max User Accounts: 16,384
Max Cameras Supported: 100
Encryption: 256-Bit AES
Power Source: AC Adapter
PSU Wattage: 1 x 350 W
Status Monitoring: LED Indicator
Cooling: 2x 120 mm Fans
Noise Level: 22 dBA
Dimensions: 11.5 x 9.1 x 8.5" / 293 x 230 x 215.5 mm
Weight: 15.6 lb / 7.1 kg
Package Weight: 20.905 lb
Box Dimensions (LxWxH): 15.7 x 14.6 x 13.6"
