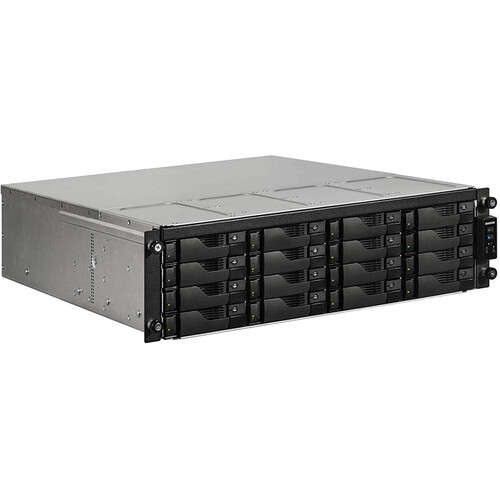

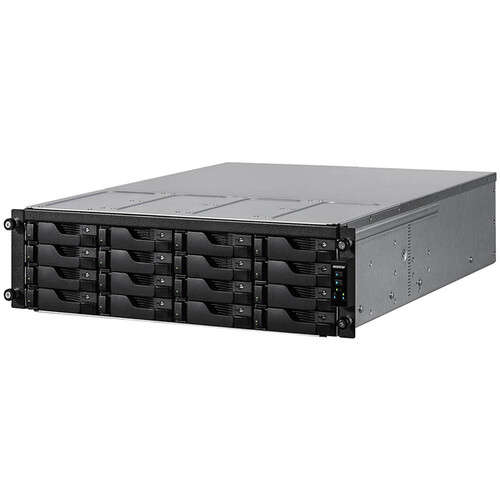

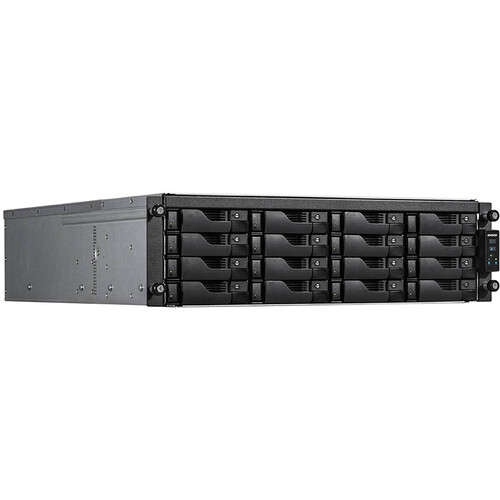

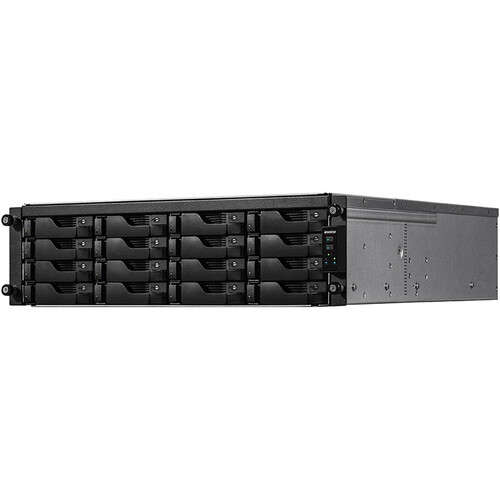

Asustor LOCKERSTOR AS7116RDX 16R Pro 16 Bay NAS Enclosure

Asustor LOCKERSTOR AS7116RDX 16R Pro 16 Bay NAS Enclosure-Intel Xeon E-2224 3.4GHz up to 4.6GHz 8MB Cache Quad 4x Core Processor.

Asustor LOCKERSTOR AS7116RDX 16R Pro 16 Bay NAS Enclosure-Intel Xeon E-2224 3.4GHz up to 4.6GHz 8MB Cache Quad 4x Core Processor with no Integrated Graphics, 8GB DDR4 ECC UDIMM Memory, 16x (2.5 inch / 3.5 inch SATA II/III HDD or SSD), 2x M.2 22110/2280/2260/2242 NVMe or SATAIII SSD, 4x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 2 Type-C, 4x Gigabit Ethernet (1G/100M), 1x Gen3 x8 Slot (x8 Link); 2x Gen3 x4 Slots (x4 Link) *for Optional Expansion 10, 25, 40, 50 GbE / SAS Card, 2x 550W Power Supply Unit, Retail Box, 1 Year Warranty.

Key Features

• 16 x 3.5" / 2.5" SATA III Drive Bays
• 2 x M.2 22110 NVMe PCIe SSD Cache Slots
• 3.4 GHz Intel Xeon E-2224 Quad-core
• 8GB DDR4 ECC RAM
• 4 x Gigabit Ethernet Ports
• USB 3.2 Gen 2 Type-A & Type-C Ports
• RAID 0, 1 5, 6, 10, JBOD
• Up to 451 MB/s Throughput
• AES 256-Bit Encryption
• ADM Operating System

Asustor AS7116RDX External HDD/SSD Overview

Quickly and Reliably Transfer, Backup, and Sync Your Data with the LOCKERSTOR 16R Pro 16-Bay NAS Enclosure from Asustor.

Built with Quadruple Gigabit Connectivity, a 3.4 GHz Intel Xeon E-2224 Quad-core Processor, and 8GB of ECC DDR4 memory that's expandable to 128GB, this NAS is designed to deliver exceptional performance for Your Business as it grows its Network Storage Capacity.

The LOCKERSTOR 16R Pro 16 includes 3.5" / 2.5" SATA III Drive Bays, supporting RAID 0, 1, 5, 6, 10, and JBOD configurations.

Read speeds reach up to 451 MB/s and write speeds reach up to 451 MB/s using All Four Gigabit Connections with Link Aggregation in RAID 5 Mode.

Up to Two M.2 22110 NVMe PCIe solid-state Cache Drives can be installed to further boost performance for Data-intensive Applications.

You can enhance performance even further with the available PCIe 3.0 Expansion Slots to install upgrades such as 40GbE Network cards, SAS cards, and more.

Four 10 Gb/s USB 3.2 Gen 2 Type-A Ports and Two USB 3.2 Gen 2 Type-C Ports are also available for connecting peripherals such as Storage Drives and printers that can be Shared across the Network.

This 3U Rackmount NAS supports up to 2048 Concurrent Connections with support for virtualization, Docker Applications, and enterprise-class Backup Solutions.

Your Data is Secured by features such as 256-bit AES encryption and an integrated firewall.

The installed ADM Operating System supports a variety of Applications to help Secure and streamline the operation of Your NAS.

The LOCKERSTOR 16R Pro is compatible with Windows, Mac, Linux, and Unix Operating Systems.

General Features

Quad Gigabit Network Connections

The LOCKERSTOR 16R Pro features Four Gigabit Ethernet LAN Ports that can help accelerate file sharing, virtual machines, and other Applications.

Server-Grade ECC Memory

The included DDR4 ECC memory is designed to detect and correct the most common kinds of Data corruption, helping to prevent Data Loss due to electromagnetic interference or crashes.

Network Storage

This NAS includes 16 3.5" / 2.5" SATA III 6 Gb/s Drive Bays, and installed Drives can be set to RAID 0, 1, 5, 6, 10, and JBOD configurations to Back Up Your Business's Data, Share files across Your Network, and more.

Your Data is Secured by features such as 256-bit AES encryption and an integrated firewall.

M.2 SSD Cache Acceleration

Up to Two M.2 22110 NVMe PCIe SSD Cache Drives can be installed to further boost performance for Data-intensive Applications.

Power and Performance

Featuring a 3.4 GHz Intel Xeon E-2224 Quad-core Processor with up to 4.6 GHz burst speeds and 8GB of ECC DDR4 memory, the LOCKERSTOR 16R Pro is designed to handle high workloads with up to 2048 Concurrent Connections, supporting virtual machines and Docker Apps.

The LOCKERSTOR 16R Pro can Transfer Data at up to 451 MB/s, utilizing All Four Gigabit Ethernet Ports with Link Aggregation in RAID 5 Mode.

PCIe Expansion Slots

Two PCIe Gen 3 x4 Slots and one x8 Slot are available, allowing you add Expansions such as 40GbE Network Adapters, SAS cards, and more to Your NAS.

Enterprise Backup

The LOCKERSTOR 16R Pro features Two built-in 550W redundant power supplies and Four Gigabit Ethernet Ports with failover capabilities to help increase reliability, Data integrity, and execution speeds.

"Find Me" Function and Service Light

Pressing a dedicated button turns on an LED service light, which complements the Find Me function on the NAS management App to sound a buzzer, allowing administrators to quickly locate the device in crowded server rooms.

Comprehensive Data Protection

The Linux-based ADM Operating System includes features such as a built-in firewall, antivirus, 256-bit AES encryption, and various Backup Tools to Secure Your Data.

Snapshot Centre and Btrfs assist in efficiently creating Snapshots to Backup and Restore Data.

Snapshot Centre supports up to 256 Snapshots per volume, which can be done every five minutes.

This NAS is also compatible with Applications such as Windows Backup Plan and Time Machine for macOS in addition to Cloud Storage services such as Amazon S3, Dropbox, Google Drive, and Microsoft OneDrive.

The Datasync Centre allows you to manage Multiple Cloud Storage Solutions from a Single App.

Specifications
