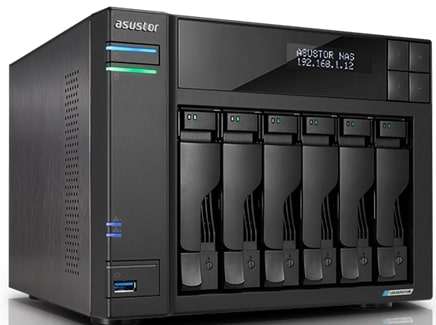

Asustor Lockerstor 6 Gen2 6 Bay NAS No Hard Drive
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Product Overview
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors. The Lockerstor Gen2 comes with Intel's newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
All New Hardware Same Great Case
ASUSTOR Ultimate 6 bays hybrid storage. Giant space and elastic high speed with M.2 or 10G card.
Four M.2 Slots - Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs. Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.
Uses latches instead of screws for easier installation.
Quad-Core 10 nm Intel Celeron N5105 CPU brings 31% more performance
Superfast 2.5-Gigabit Ethernet ports
Flexible PCIe slot for 10GbE NICs or M.2 SSDs
Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
Uses DDR4-2933 with 40% more performance
USB 3.2 Gen2 ports 10Gbps speed
Enjoy, download, upload and stream content with 4K transcoding
Increased ventilation for SSDs
Supports Wake on LAN and Wake on WAN
Specifications
CPU
CPU Model: Intel Celeron N5105
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory: 8GB SO-DIMM DDR4
Memory Module Pre-installed: 8GB (1x 8GB)
Total Memory Slots: 2
Memory Expandable up to: 16GB (2x 8GB)
Flash Memory: 8GB eMMC
Storage
Drive Bays: 6
M.2 Drive Slots: 4
Compatible Drive Types:
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays with Expansion Unit: 14
External Ports
Expansion: 2x USB 3.2 Gen 2x1
Network: 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots: 1x for optional expansion 10 GbE card
HDMI Output: 1x HDMI 2.0b
Others
System Fan : 1x 120mm
LCD Panel: Yes
Infrared Receiver: Yes
Power Supply Unit / Adapter: 250W x1
Input Power Voltage: 100V to 240V AC
