Asustor Lockerstor AS6702T 2 Gen2 2-Bay NAS

Enthusiast-grade NAS with two, four or six bays. The LOCKERSTOR Gen2 series of NAS devices come with the all-new Quad-Core Intel Celeron N5105 CPU featuring Intel 10 nm technology. Intel's Jasper Lake Celeron CPUs bring up to 31% extra performance over the previous generation of Celeron CPUs. The LOCKERSTOR Gen2 is flexible. Install up to four M.2 SSDs or a 10-Gigabit Ethernet card in the available PCI Express slot for maximum performance. The LOCKERSTOR Gen2 uses DDR4-2933 and super-fast 2.5-Gigabit Ethernet which makes content creation even easier than ever before.

Features:

• Quad-Core 10 nm Intel Celeron N5105 CPU - 31% more performance over Gemini Lake
• Superfast 2.5-Gigabit Ethernet ports
• Flexible PCIe slot for M.2 SSDs
• Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
• Uses DDR4-2933 with 40% more performance
• USB 3.2 Gen2 ports — 10Gbps speed
• Enjoy, download, upload and stream content with 4K transcoding
• Increased ventilation for SSDs
• Supports Wake on LAN and Wake on WAN

CPU

Intel's newest N5105 Quad-Core CPU comes with Intel 10 nm technology and up to 31% increased performance over Gemini Lake SoCs. The N5105 is clocked at 2.0 GHz with a boost of up to 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.

Keeping Cool

With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling.

USB 3.2 Gen 2x1 — A First for ASUSTOR

The Lockerstor Gen2 series now support USB 3.2 Gen 2x1 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen1 at up to 10 Gbps.

Four M.2 Slots

The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.

Tool-Free M.2 SSD Installation

Uses latches instead of screws for easier installation.

Also Supports 10-Gigabit Ethernet

The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.

Technical Specifications:

CPU
CPU Model: Intel Celeron N5105
CPU Architecture: X64 64-Bit
CPU Frequency: Quad-Core 2.0 GHz (Burst Up To 2.90 GHz)

Memory
Memory: 4 GB SO-DIMM DDR4
Pre-Installed Memory: 4 GB (1 X 4 GB)
Memory Slots: 2
Maximum Supported Memory: 16 GB (2 X 8 GB)
Memory Configuration Support: Mixed Capacity Supported
Flash Memory: 8 GB eMMC

Storage
Drive Bays: 2
M.2 Drive Slots: 4
Compatible Drive Types:

• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD
• M.2 2280 NVMe

M.2 PCIe Interface: PCIe 3.0 X1
Maximum Drive Bays With Expansion Unit: 10
Hot-Swappable Drive Support: Yes

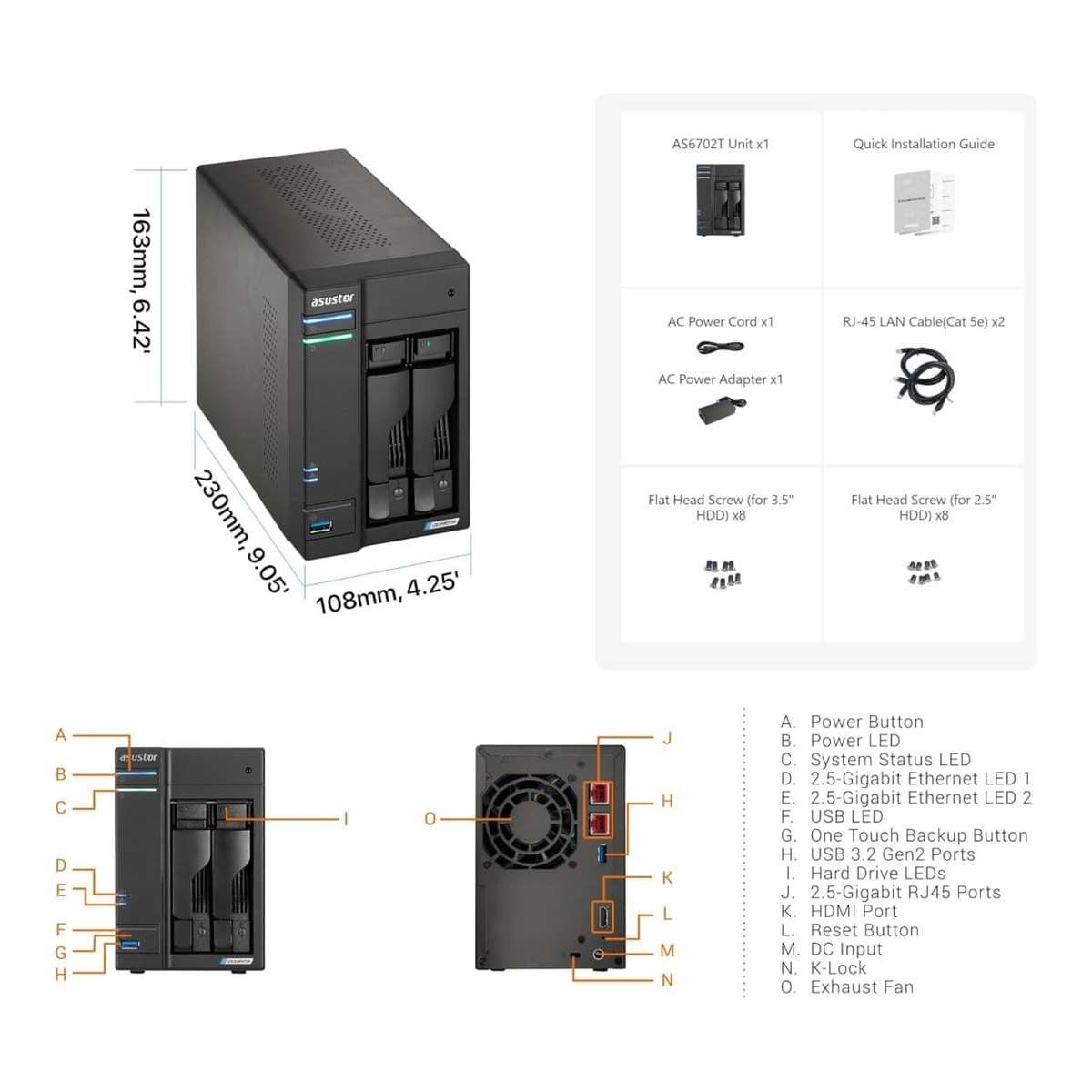

External Ports
USB Ports:

• 2 X USB 3.2 Gen 2 (10 Gbps)

Network Ports:

• 2 X 2.5 Gigabit Ethernet (2.5G/1G/100M)

Multimedia Output:

• 1 X HDMI 2.0b

Cooling
System Fan: 1 X 70 mm

Power
Power Supply Adapter: 65 W
Input Voltage: 100 V To 240 V AC

Features
Infrared Receiver: Yes

Certifications
Certifications:

• FCC
• CE
• VCCI
• BSMI
• C-TICK
• KCC
• BIS
• CCC
• UKCA

Power Consumption

• 21 W (Operation)
• 13.5 W (Disk Hibernation)
• 0.79 W (Sleep Mode)

Noise Level
Noise Level: 17.7 dB (HDD Idle)

Environmental Conditions
Operating Temperature: 0°C To 40°C (32°F To 104°F)
Storage Temperature: -20°C To 70°C (-4°F To 158°F)
Humidity: 5% To 95% RH

Dimensions & Weight
Dimensions: 163.5 X 108 X 230 Mm
Weight: 2 Kg / 4.4 Lb

Warranty
Warranty: 3 Years
