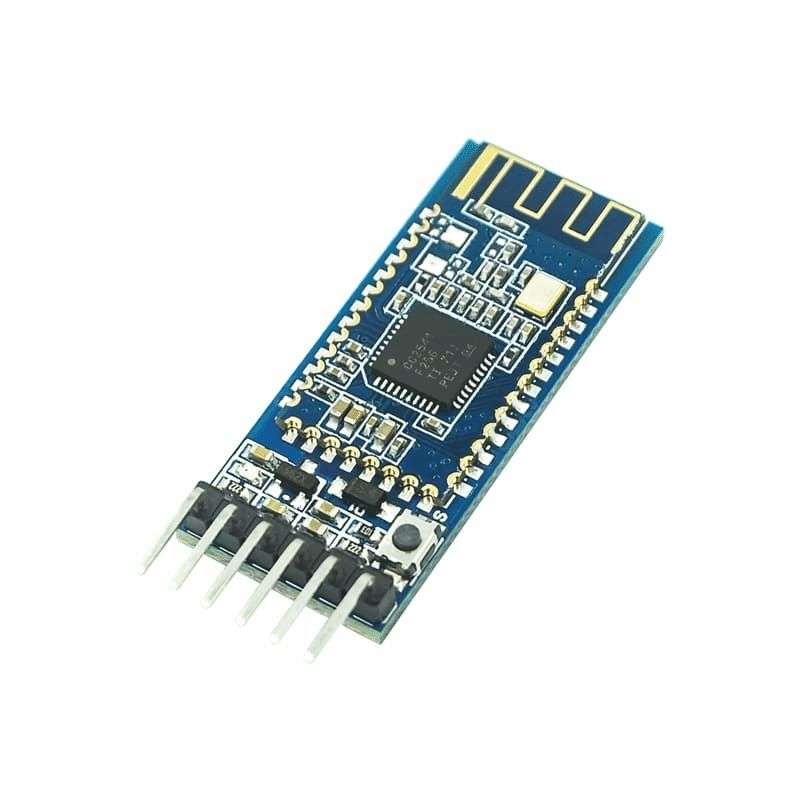

AT-09 Bluetooth 4.0 Module (HM-10 compatible)
This AT-09 Bluetooth Module is a CC2541-based module with a dedicated breakout board that breaks out the pins and makes the module extremely easy to work with. It is an ultra-low-power and highly versatile unit that offers effective wireless Bluetooth Communications with Bluetooth 4.0 and BLE communication capabilities, making it a firm favorite amongst Makers worldwide.
Although the module itself is not extremely advanced, the versatile nature of the module and clever design of the breakout board enables it to be used for a wide range of projects and applications. As such, it can be used for home automation systems, wireless light switches or plug points, wireless signal transfers between devices, as well as many more ideas that are yet to be invented!
The AT-09 module operates on a low 3.3V input at the wireless frequency of 2.4GHz. It has a maximum efficient distance of around 60 meters and also features a number of security and privacy features to keep your projects safe from unauthorized access. And if that isn't enough of a feature set for you, this module can also be used as a slave or master, meaning that it can either be utilized as the main controller for other devices or can be used to accept commands and react according to a larger control system.
AT-09 Bluetooth Module specs:
- HM-10 Derivative
- Baud Rate: 9600
- Working Frequency: 2.4GHz ISM Band
- Modulation Method: GFSK (Gaussian Frequency Shift Keying)
- RF Power: 4dBm, Class 2
- Sensitivity: -84dBm at 0.1% BER
- Bluetooth Protocol: V4.0 & Bluetooth BLE
- Transfer Rate: Synchronous 6kbps / Asynchronous 6kbps
- Flash: 256Kb
- Support Services: Central & Peripheral - UUID / FFE0 / FFE1
- Operating Voltage (DC): 3.3V to 6V
- Power Consumption: 9mA Transmission / 90uA to 190uA Deep-Sleep
Application for AT-09 Bluetooth Module:
Although this AT-09 Bluetooth Module with breakout board can be used for a near-endless number of different Electronics projects, it shows its true value when used for applications in which power consumption is a serious concern. Within such projects, it allows for devices, controller boards, users and even other Bluetooth modules to all communicate seamlessly. This opens up many new possibilities for home automation, wireless access, and control, as well as monitoring, tracking, or reactive services that keep you updated with vehicle locations, data usage, or any other important bits of info.
