Description:

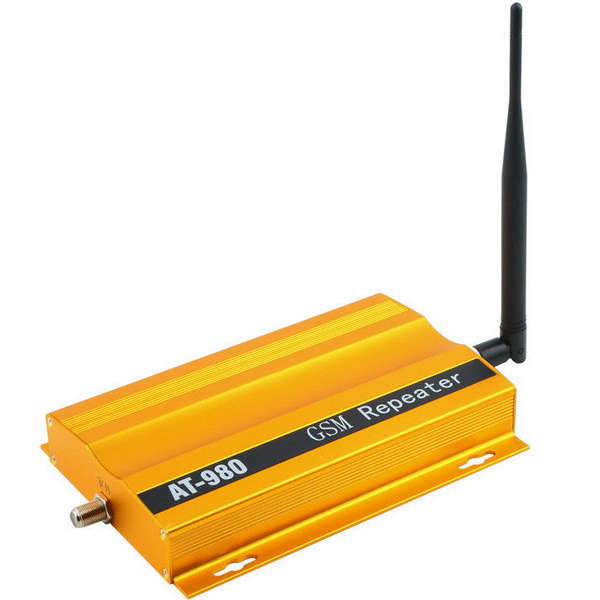

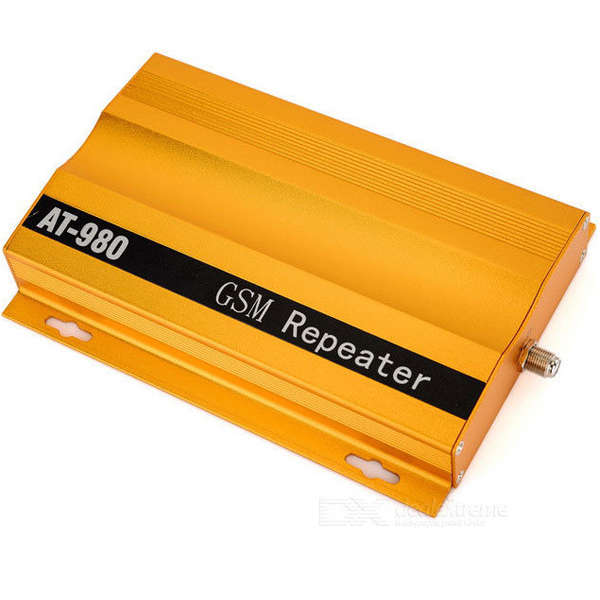

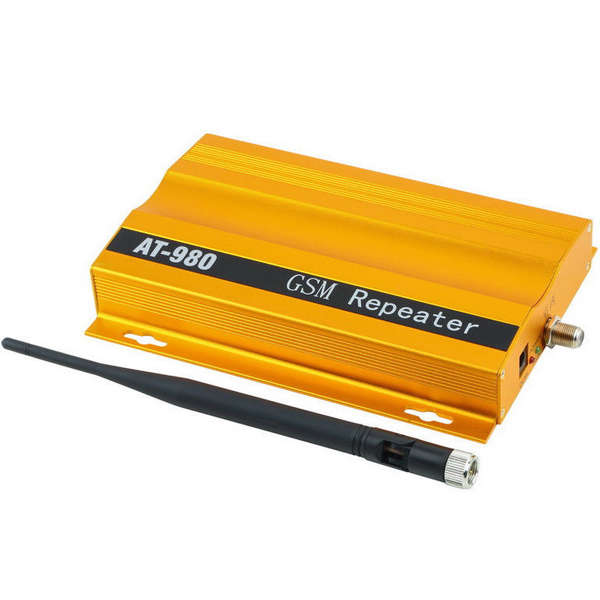

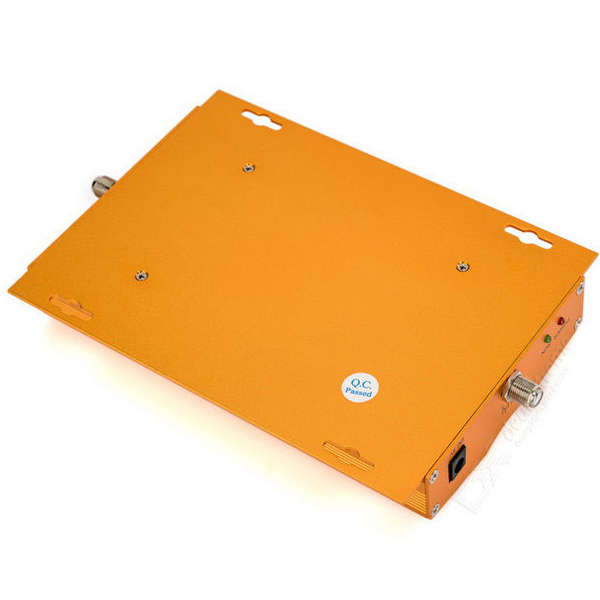

AT980 Mobile Phone GSM Signal Booster Repeater Cell Phone Signal Amplifier with Power Adapter

Specification:

Features:

High gain, easy installation and operation.

Full-duplex, single-port design.

Use ALC technology, adjust extent automatically.

LED Light Working & Signal Condition Indicators.

Big linear power, control intermodulation & scatteration stably.

Dependability stand by GB6993-86 standard.

Compatibility of electromagnetism according with ETS300 609-4.

Frequency range: Uplink 890 ~ 915MHz Downlink 935 ~ 960MHz

Gain (dB): Uplink Gp≥55 Downlink Gp≥60

Export Power (Po): ≥10dBm

Pass Band Ripple: ≤3dB

I/O Impedance: 50Ω/N connector

Noise Figure: ≤4dB

Transmission Delay: ≤0.5μs

Ambient Temperature: -10 ~ 6¿¿¿

Power Supply: AC110 ~ 220V 45 ~ 55Hz

Size: 220 x 140 x 40 mm

Reliability: To the GB6993-86 standard

Electromagnetic Compatibility: To the ETS300 694-4 standard

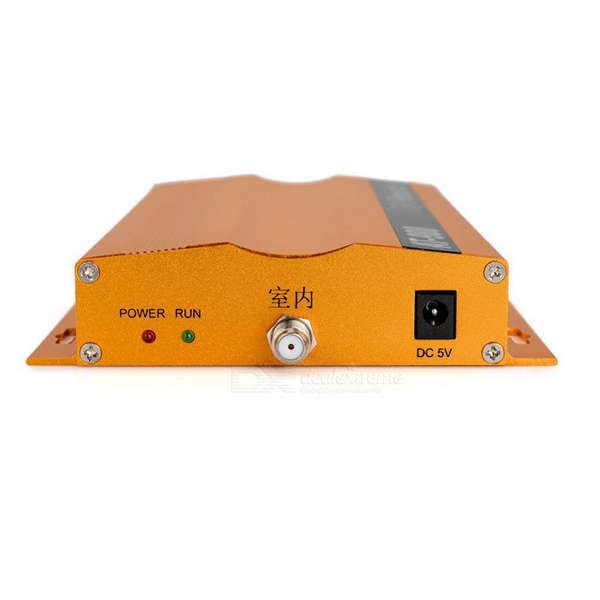

Function: a) Power supply LED denote b) Export power LED denote

Signal Cover: 300m²

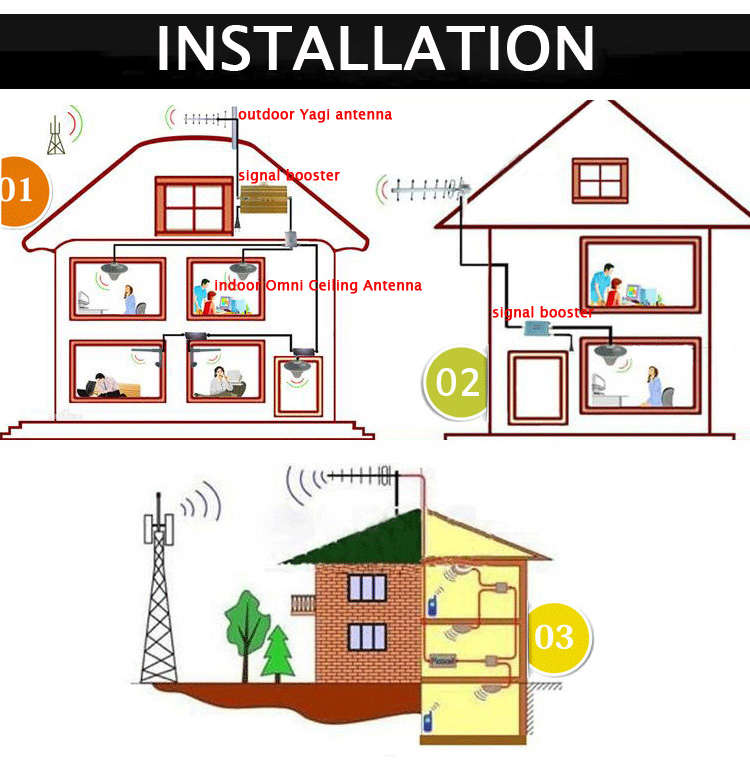

Installation Approaches:

1.Fix up outdoor antenna reception on housetop and point to signal tower.

2. Connect outdoor antenna to “BTS” port in repeater machine through cable.

3. Connect indoor antenna(s) to “MS” port in repeater machine through cable also.

4. Plug power adaptor into AC power socket and finish installation.

Technique Supporting:

1.If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve 50-70DBM.

2. If can not call out, please adjust the direction of outdoor antenna.

3.If the strength is not steady, please check if outdoor and indoor antenna are too close, pls ensure the outdoor antenna have distance of 10 meters at least, with a between and not in a same horizontal line.

4.keep antenna and booster far from windows.

5.pls put indoor antenna in place which is above 2 meter high and far from wall to installation.

6.Packed the connector by waterproof glue, otherwise wet reduce the signal cover area.

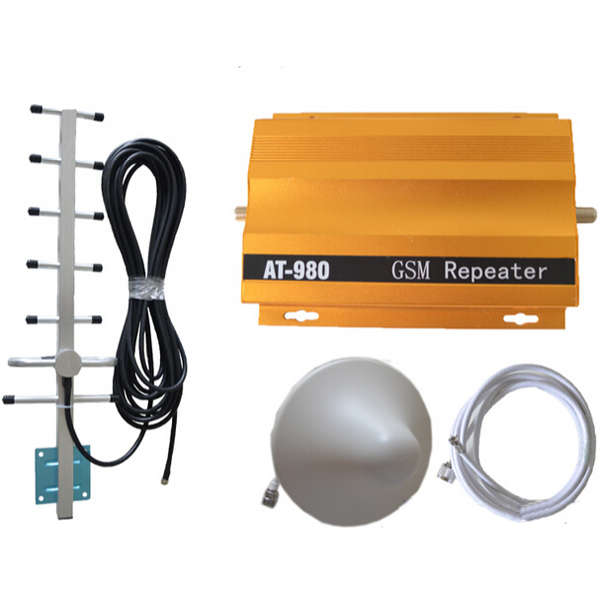

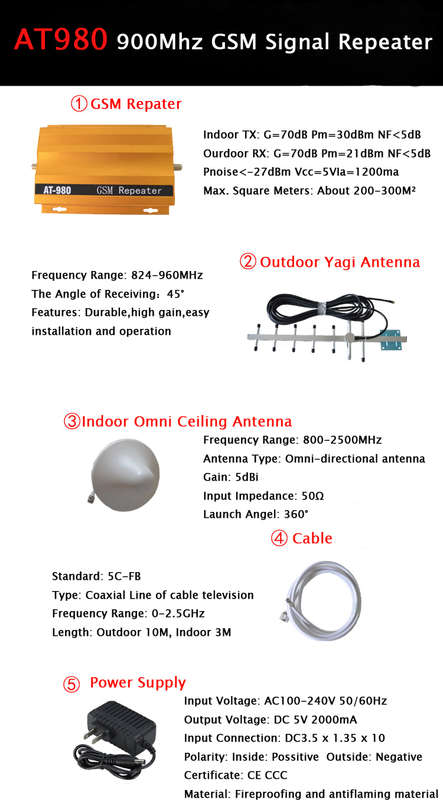

packing included:

1 x AT980 cellphone repeater

1 x 9unit YAGI outdoor antenna

1 x CEILING Indoor antenna with 3meter cable

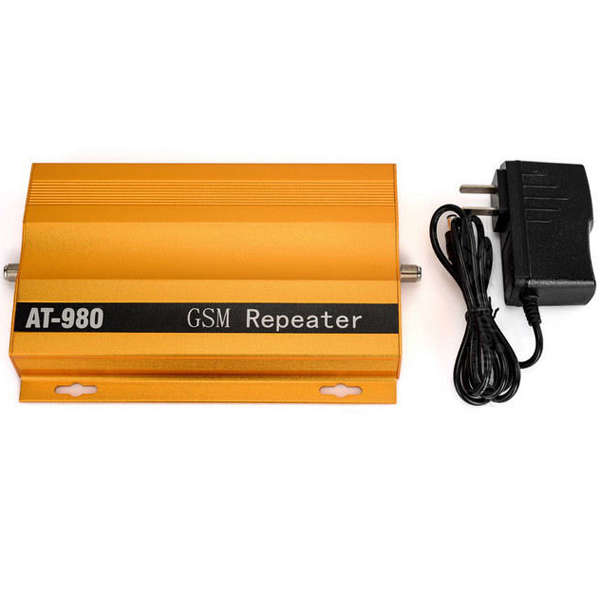

1 x Charger

1 x 10meter cable with connector for outdoor antenna

1 x User manual

Details pictures:
