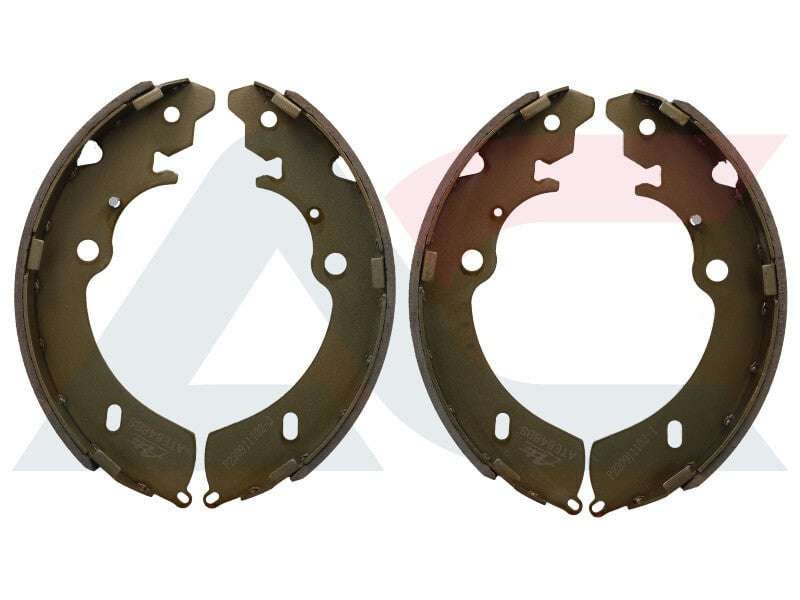

Vehicle Fitment & Part Details
These rear brake shoes fit the Isuzu D-Max I (TFR, Tfs), with OE APEC: SHU783. Confirm compatibility by matching the listed fitment details and any OEM reference numbers supplied. Verify VIN/engine.
Key Details
- SKU
- ATE648BS
- Component
- Brake Shoes
- Position
- Rear
- Configuration
- Rear Axle Set
- Brand
- ATE
- Part MPN
- ATE648BS
- Primary Fitment
- Isuzu D-Max I TFR, Tfs (2002-2012)
- Specs
- 254,00 mm, 50,70 mm
Listing Highlights
- Listed for selected Isuzu D-Max I applications shown in the fitment table.
- Cross-referenced to listed OE numbers for compatibility checking before ordering.
- Supplied as a rear axle set.
OEM Reference Numbers
- APEC: SHU783
- BENDIX: BXS1314
- BLUE PRINT: ADZ94118
- FERODO: FSB4023
- fri.tech.: 1047 377
- ISUZU: 8981674060
- ISUZU: 8073682630
- ISUZU: 8981674050
- ISUZU: 8980180350
- ISUZU: 8973682630
- ISUZU: 8973682530
- ISUZU: 8981674070
- ISUZU: 8973026351
- ISUZU: 8973519211
- MGA: M929
- MINTEX: MFR769
- PAGID: H1861
- TEXTAR: 91086600
- TRW: GS7810
Alternate OEM Search References: 1047377

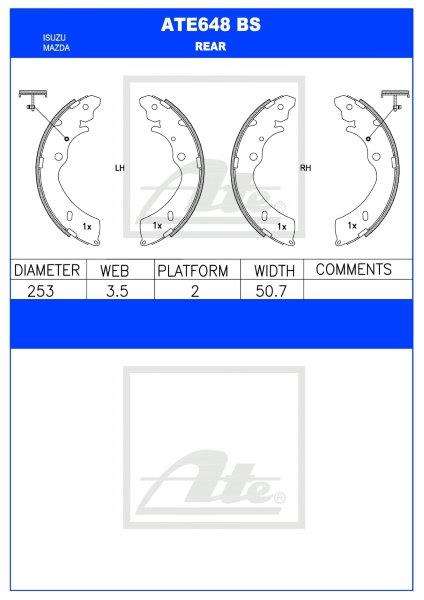

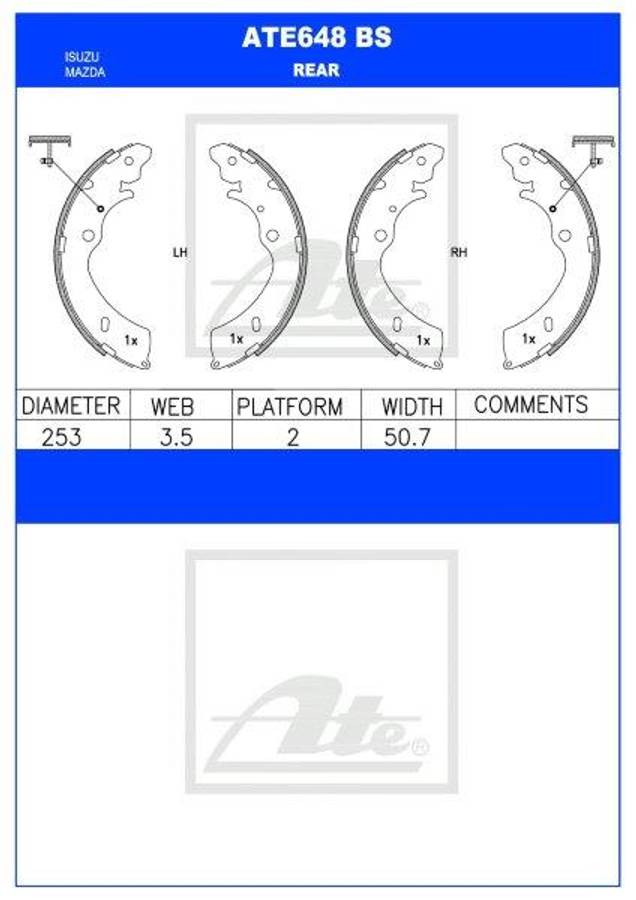

Product Specifications
| Specification | Value |
|---|
| Drum Diameter | 254,00 mm |
|---|
| Width | 50,70 mm |
|---|
| Fitting Position | Rear Axle |
|---|
| PRICE | R788 |
|---|
Vehicle Fitment
Includes 3 supplied applications covering Isuzu D-Max I and D-Max II. Use the full table below to confirm model, year range and engine variant before ordering.
| Model | Chassis | Engine | Years |
|---|
| Isuzu D-Max I | TFR, Tfs | 2.5 Ditd 4X4 (TFS54) 4Ja1-Tc | 2002-2012 |
|---|
| Isuzu D-Max I | TFR, TFS | 3.0 D 4X4 4Jj1-Tc | 2007-2012 |
|---|
| Isuzu D-Max II | TFR, Tfs | 1.9 Ddi 4X4 (TFS87J) Rz4E-Tc | 2017-2022 |
|---|
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Verify VIN/engine.
Compatibility Verification Notes
- Confirm compatibility using VIN, engine code, chassis / platform, OE reference and original part comparison before ordering.
- Match the supplied fitment details to your vehicle, including model, year range and any listed engine variant.
- Fitment data may vary by production date, market, import history and engine variant.
- This listing is for part identification and compatibility checking only. Installation must be carried out according to the vehicle manufacturer's service information by a suitably qualified person.
Common Questions
Will these rear brake shoes fit my Isuzu D-Max I?
This part (ATE648BS) is listed for the fitments shown on this page. Confirm by matching the fitment details. Verify VIN/engine.
What OEM part numbers does this cross-reference?
Cross-reference numbers are listed in the OEM Reference Numbers section above. Match at least one to your original part before ordering.
What brand is this part?
This listing is for ATE rear brake shoes (rear axle set).
How do I confirm fitment if there are multiple variants?
Compare the supplied fitment details, OE reference numbers, original part details and any listed variant information before ordering. Verify VIN/engine.
