Aten 16 port 19 inch VGA LCD Integrated USB/PS2 combo KVM

Aten CL5716N 16 port 19'' VGA LCD Integrated USB/PS2 combo KVM with an extra Console Port and USB Peripheral support, 16 x SPHD Female (Yellow) KVM Ports, 1 x DB-25 Male daisy chain Ports, 19" TFT LCD module, 1280x1024 @ 75 Hz Resolution, Up to 1920x1200 @ 60Hz Input Video Resolution

Overview:

16-Port PS/2-USB VGA Single Rail LCD KVM Switch
CL5716

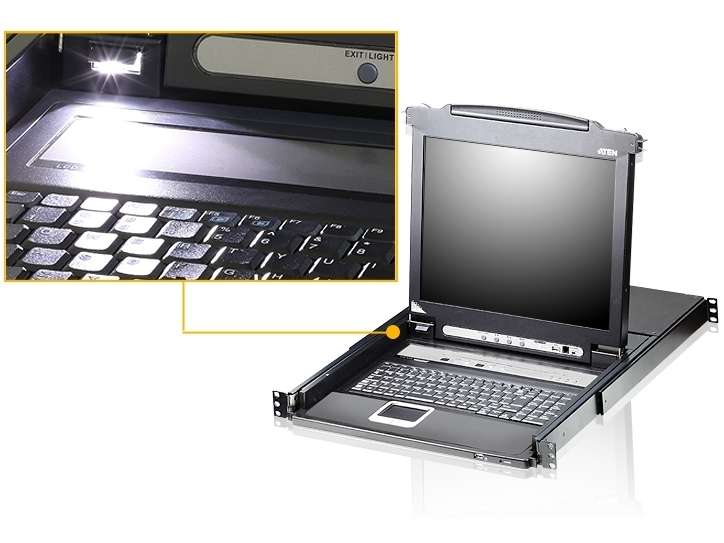

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17", 17.3"or 19" LED-backlit LCD monitor in a Slideaway housing
Daisy-chain up to 31 additional units - control up to 512 computers from a single console
USB port allows each computer to access USB peripherals (inapplicable to CL5716MW)
The CL5716 Slideaway - LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

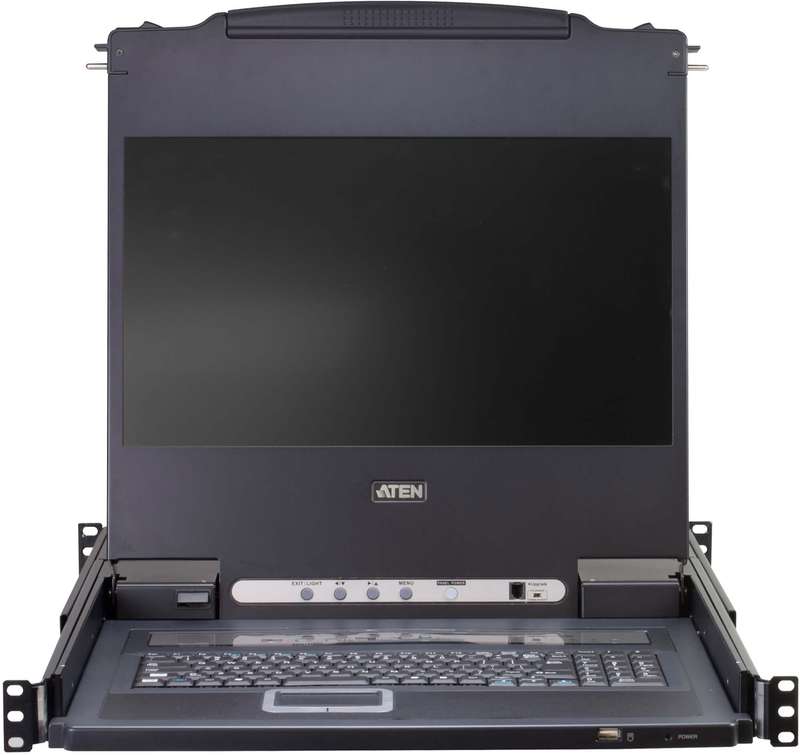

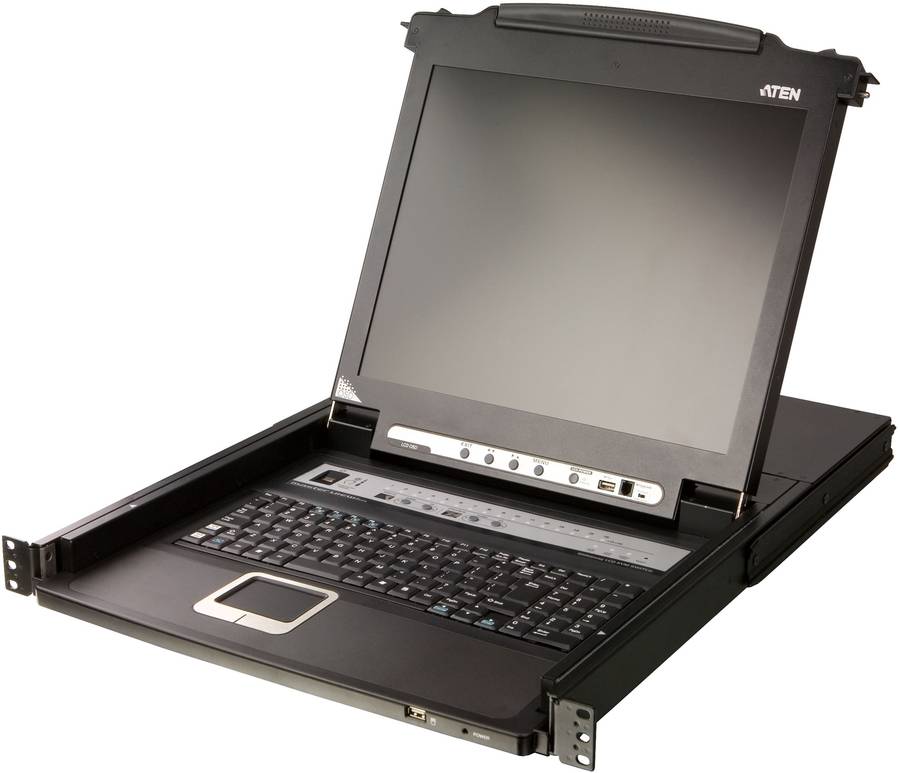

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.

The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

CL5716M: 17" LCD
CL5716MW: 17.3" LCD
CL5716N: 19" LCD
CL5716FM: 17" LCD with fingerprint reader
Package Contents

1x CL5716 LCD KVM Switch with standard Rack Mount Kit
2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
1x Firmware Upgrade Cable
1x Power Cord (AC Power Models)
1x User Instructions
Features:

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
Integrated KVM console with 17", 17.3"or 19" LED-backlit LCD monitor in a Slideaway housing
Available with or without fingerprint identification reader
Space saving technology - up to two consoles (one bus) control up to 8 or 16 computers
Daisy-chain up to 31 additional units - controls up to 512 computers from a single console
Dual interface - supports computers and console with PS/2 or USB keyboards and mice
USB port allows each computer to access USB peripherals (inapplicable to CL5716MW)
LCD module rotates up to 120 degrees for a more comfortable viewing angle
Multiplatform support - Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Superior video quality - supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5716MW)
No software required -convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Port names automatically reconfigured when station sequence is changed
Two level password security - only authorized users can view and control computers
Supports one administrator and four user accounts with separate profiles
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast supports - commands from the keyboard can be broadcast to all available computers on the installation
Hot pluggable
Beeper on / off via hotkey and OSD
Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable

Specifications:

Function CL5716N
Computer Connections
Direct 16
Maximum 512 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton

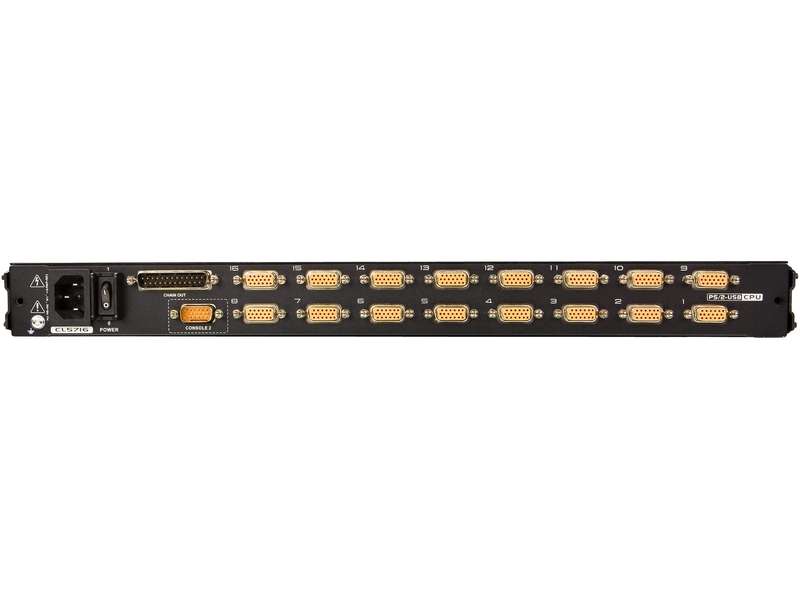

Connectors
KVM Ports 16 x SPHD Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male
Firmware Upgrade 1 x RJ-11 Female
Power 1 x IEC 60320/C14
External Console Ports 1 x SPHD Male (Yellow)
External Mouse Port 1 x USB Type A Female (Front)
USB Port 1 x USB Type A Female
Switches
Port Selection 2 x Pushbutton
Station Selection 2 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide Switch
Power 1 x Rocker Switch
LCD Control 4 x Pushbutton
LCD Power 1 x LED Pushbutton
LEDs
Online 16 (Orange)
Port ID 2 x 7-segment LED Display (Orange)
Station ID 2 x 7-segment LED Display (Orange)
Power 1 (Dark Green)
Lock 1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light 1 x LED Illumination Light
Panel Spec
LCD Module 19" TFT-LCD
Resolution 1280 x 1024 @ 75 Hz
Response time 5 ms
Viewing Angle 170° (H), 160° (V)
Pixel Pitch 0.294 mm x 0.294 mm
Support Color 16.77M colors
Contrast Ratio 1000 : 1
Luminance 250 cd/m²
Video
Input Video Resolution up to 1920 x 1200 @ 60 Hz
1280 x 1024 @ 75 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100-240V AC, 50/60Hz, 1A
Power Consumption AC110V:26.9W:139BTU
AC220V:27.9W:144BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-85% RH, Noncondensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 13.65 kg ( 30.07 lb )
Dimensions (L x W x H) 48.00 x 68.92 x 4.40 cm
(18.9 x 27.13 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
