Aten 17-inch Single Rail LCD Console

Aten 17-inch Single Rail LCD Console

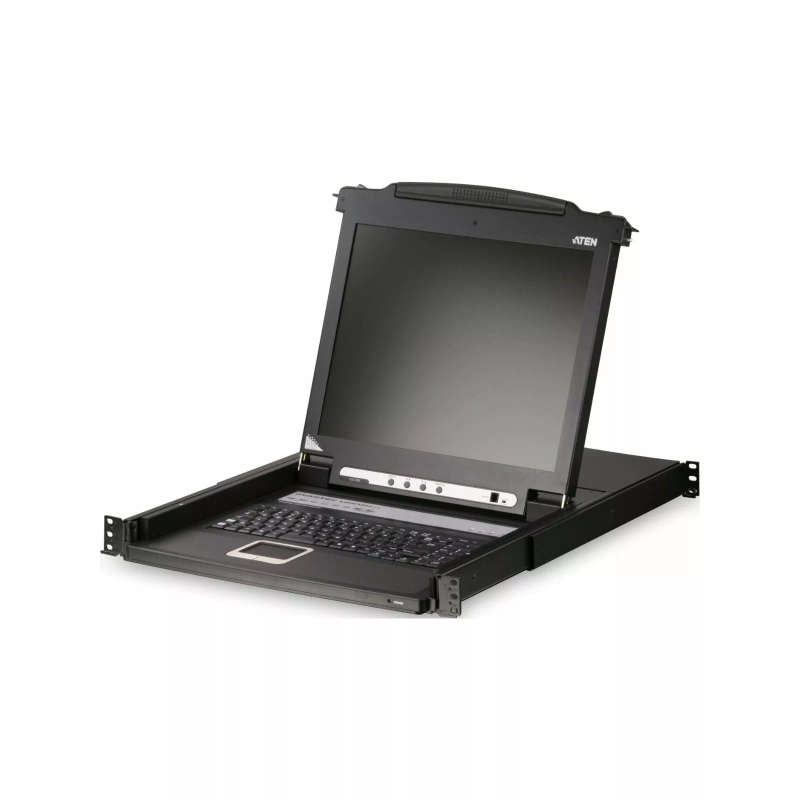

The CL1000M is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000M features an integrated 17" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway housing.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000M LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient 'at the rack' console access to KVM switches already installed at your site.

Features

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
• Supports input video resolutions up to 1920 x 1200@60 Hz
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Compatible with PS/2 or USB KVM switches when they are connected using custom KVM cables or converters¹
• Internal power supply
• Adjustable depth to fit within a rack

Technical Specification

• 1 x KVM Console (Dark Green)
• 1 x LCD (Orange)

• 1 x Num Lock (Green)
• 1 x Caps Lock (Green)
• 1 x Scroll Lock (Green)

Package Contents

• 1x CL1000M with Standard Rack Mount Kit
• 1x Custom KVM Cable (VGA, USB; 1.8m)
• 1x Power Cord
• 1x User Instructions
