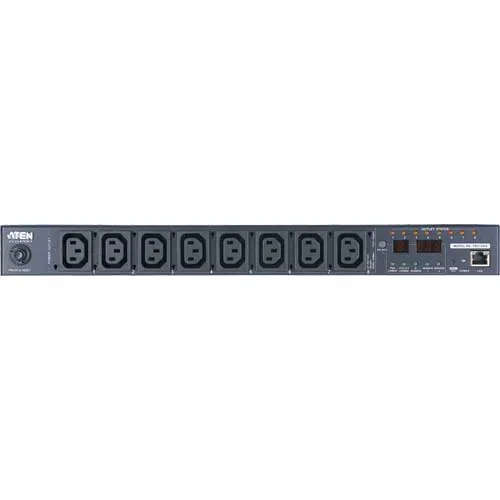

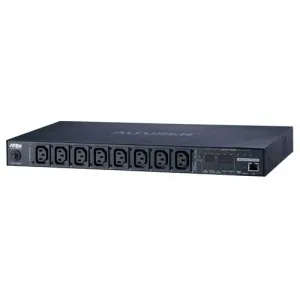

Aten 8 AC Outlets 1U Power Distribution Unit Black
Power Distribution
Space saving 1U rack mount design with rear mounting
IEC or NEMA outlet models
3 digit 7-segment front panel LED shows Current / IP Address
Remote users can monitor outlet status via web pages on their browsers
Safe shutdown support
Separate power for the unit's own power and its power outlets. The user interface is still accessible even when an overload condition trips the devices' circuit breaker
Remote Access
Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto sense, Ping
eco PDU Power Management software eco Sensors
Supports SNMP Manager V3
Operation
Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
Power-on sequencing users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Firefox, Chrome, Safari)
RTC support to keep the timer running during times of no power.
Supports up to 8 user and 1 administrator accounts
Management
Power status measurement at the PDU or Outlet level
LED indicators for current and IP address at Outlet levels
Real-time current, voltage, and kWH displayed in a browsed-based UI for monitoring at the outlet level (PE8108 / PE8208)
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis.
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, German, Traditional Chinese, Simplified Chinese, Japanese, French, Spanish, Italian
Security
Two-level password security
Strong security features include password protection and advanced encryption technologies 128 bit SSL
Remote authentication support: RADIUS
eco Sensors Energy Management Software
Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time power outlet management
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and Syslog
Power Analysis Report
Package Contents
- 1x PE8108 Power Distribution Unit
- 1x Power Cord
- 1x Rack Mount Kit
- 1x Software CD
- 1x User Instructions
Specifications:
- ATEN PE8108G
- PDU types: Monitored
- Rack capacity: 1U
- Mounting: Horizontal
- AC outlets quantity: 8 AC outlet(s)
- AC outlet types: C13 coupler
- Power plug: C20 coupler
- LED indicators: LAN, Link, Power, Status
- Monitoring: Current
- Nominal input voltage: 100-240 V
- Maximum current: 10 A
- AC input frequency: 50 - 60 Hz
