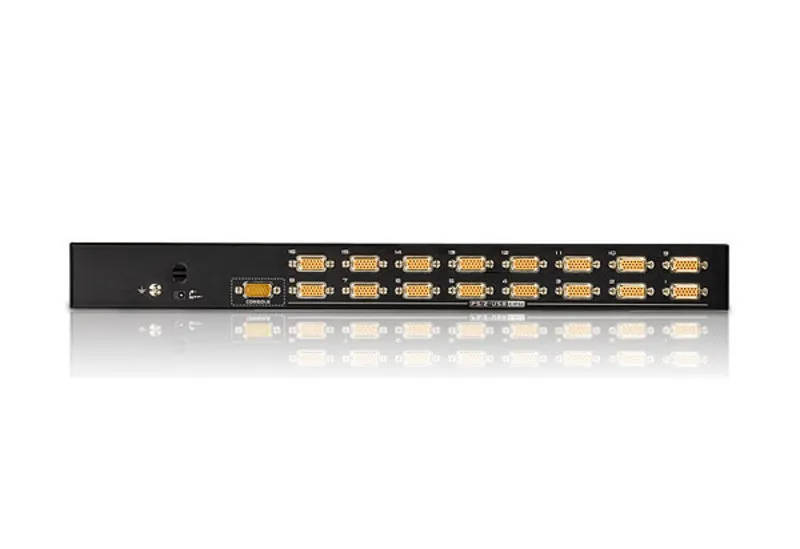

Aten CS1316 KVM switch Black

Aten CS1316. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels. Product colour: Black. Power consumption (typical): 6.6 W. Weight: 2.1 kg

Features

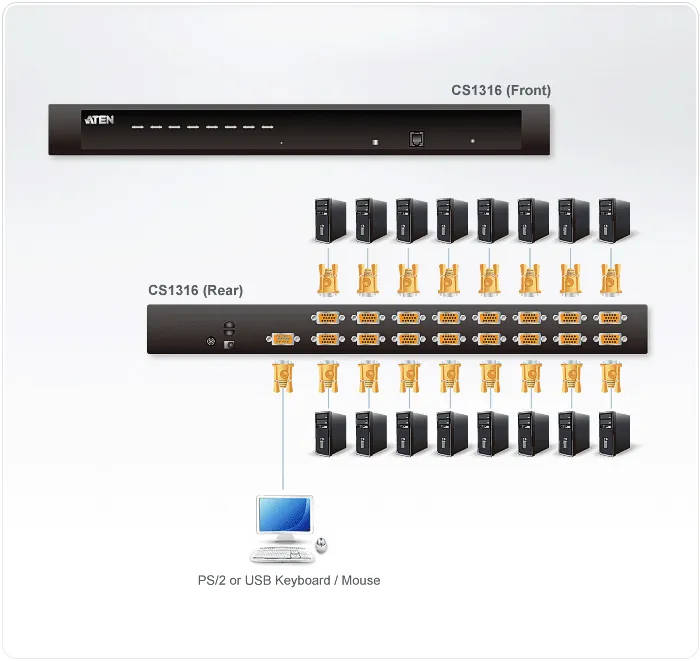

- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels* - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)

*Cascade function only works with USB KVM cable set connections.

Package Contents

- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x LIN5-27X6-U21G Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x 0AD6-1605-24EG Power Adapter
- 1x Mounting Kit
- 1x User Instructions
