Aten CS1792. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. Maximum resolution: 1920 x 1200 pixels. Power consumption (typical): 3.2 W. Width: 73 mm, Depth: 205 mm, Height: 45 mm. Connectivity technology: Wired, Dimensions (WxDxH): 73 x 205 x 45 mm, Power requirements: DC 5.3 V
Features
- 2-port HDMI USB 2.0 KVMP™ Switch

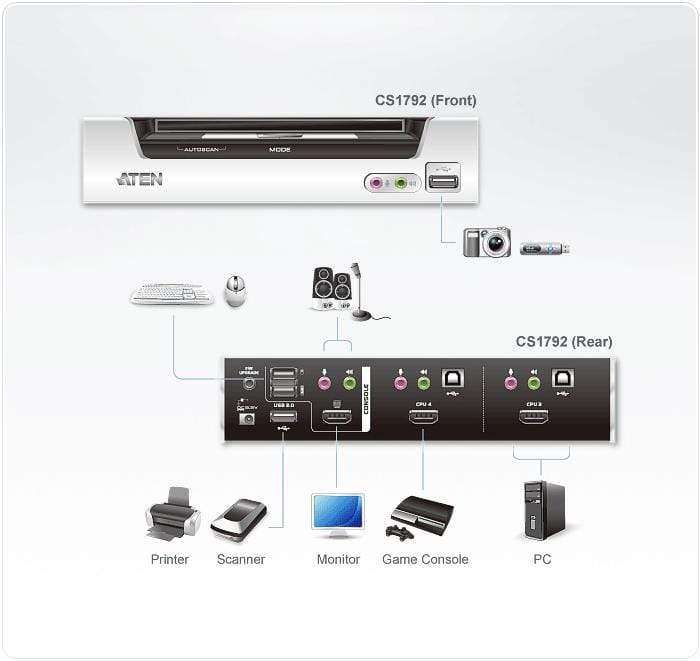

- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux,and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
* 2. Mac keyboards only work with their own computers
Package Contents
- 1x CS1792 USB 2.0 HDMI KVMP™ Switch
- 2x 2L-7D02UH HDMI KVM Cable Sets
- 1x Firmware Upgrade Cable
- 1x 0AD6-1605-24EG Power Adapter
- 1x UC20KMZ-A-11 USB-to-PS/2 Converter
- 1x User Instructions
