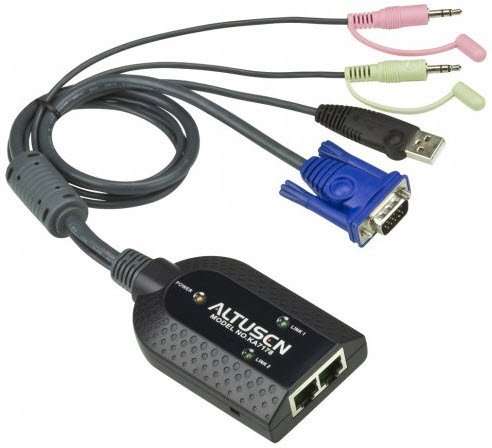

Aten KA7178 USB VGA/Audio Virtual Media KVM Adapter with Dual Output

Aten KA7178 USB VGA/Audio Virtual Media KVM Adapter with Dual Output

Overview:

The KA7178 KVM Adapter Cable connects the KVM switch to the video, USB and audio ports of the target computer. In addition to Virtual Media support, it provides two Cat 5e/6 connectors, allowing a computer to connect to two ALTUSEN Matrix KVM switches. This allows consoles on different switches access to the same computer.

Features:

Auto Signal Compensation (ASC), no DIP switch setting needed for the different distances
Dual Cat 5e/6 connections
Keyboard and mouse emulation keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Lifetime firmware upgrades
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Built in ASIC for greater reliability and compatibility
CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer OS types (Windows, Mac, Sun)
Compact size
Virtual Media Support
Audio enabled

Specifications:

Connectors
Link 2 x RJ-45 Female
Computer 1 x USB Type A Male
1 x HDB-15 Male
2 x Mini Stereo Plug
LEDs
Online 2 (Green)
Power 1 (Orange)
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Physical Properties
Housing Plastic
Weight 0.17 kg ( 0.37 lb )
Dimensions (L x W x H) 9.10 x 5.60 x 2.12 cm
(3.58 x 2.2 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
