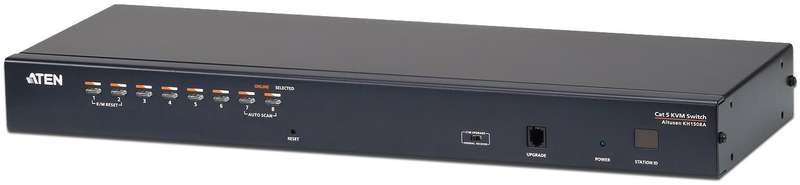

Aten KH1508A 8-Port Multi-Interface Cat 5 KVM Switch
Overview:
The KH1508A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 8 computers. By daisy chaining up to 31 additional switches, as many as 256 computers can be controlled from the original KVM console.
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Another advantage found in these switches is Full HD video quality extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200 *.
A KH1508A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH1508A KVM switch.
Features:
One KVM console control up to 8 directly connected computers
Space-Saving RJ-45 connectors and Cat 5e/6 cabling
By daisy chaining up to 31 additional KH1508A switches, as many as 256 computers can be controlled from the original KVM console
Console conversion any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) supported on both the KVM console and computer sides
Superior Video Quality- Supports the video resolutions up to 1920 x 1200 @60Hz for up to 30 meters, 1600 x 1200 @60Hz for up to 40 meters, and 1280 x 1024 @75Hz for up to 50 meters*
Configue port access rights for users on a port - by - port basis
Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
Multiplatform support PC, Mac, Sun, and serial
Multiple User Accounts - Supports up to 10 user and 1 administrator accounts
Two-Level Password Security - Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation
Auto Scan mode enables continuous monitoring of user-selected computers
Broadcast Mode sends commands from the console to all computers allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
Adapter ID
Firmware Upgradeable
Specifications:
Computer Connections
Direct 8
Maximum 256 (via Daisy-chain)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 2 x USB Type A Female
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
KVM Ports 8 x RJ-45 Female
Daisy Chain Ports 1 x DB-25 Female (Black)
1 x DB-25 Male (Black)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x IEC 60320/C14
Switches
Port Selection 8 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
Firmware Upgrade 1 x Slide
Power 1 x Rocker
LEDs
Online 8 (Green)
Selected 8 (Orange)
Power 1 (Blue)
Station ID 1 x 2 Digit 7-segment (Orange)
Emulation
Keyboard / Mouse PS/2; USB
Scan Interval 1-255 sec.
Video 1920 x 1200 @ 60 Hz (30 m);
1600 x 1200 @ 60 Hz (40 m);
1280 x 1024 @ 75 Hz (50 m)
Maximum Input Power Rating 100-240V AC; 50/60 Hz; 1A
Power Consumption AC110V:5.1W:32BTU
AC220V:5.1W:32BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.65 kg ( 5.84 lb )
Dimensions (L x W x H) 43.72 x 16.36 x 4.40 cm
(17.21 x 6.44 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
