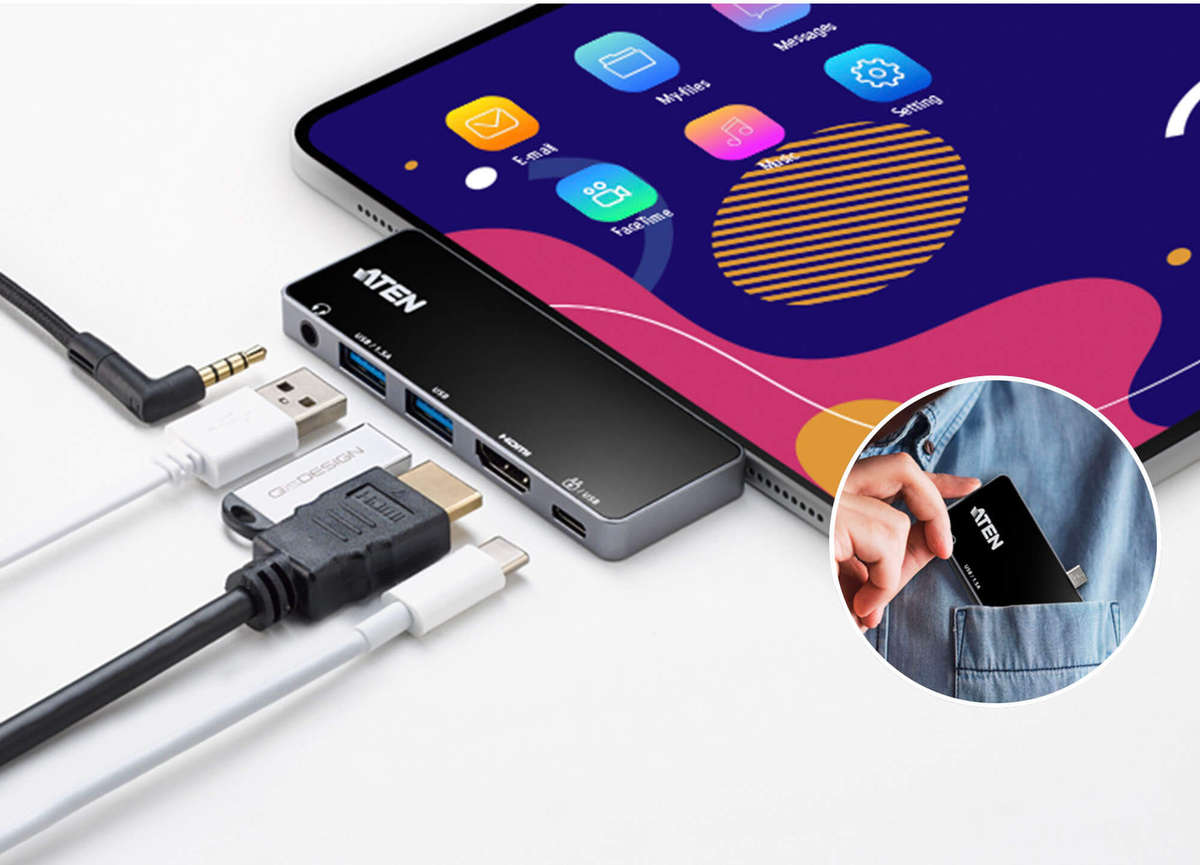

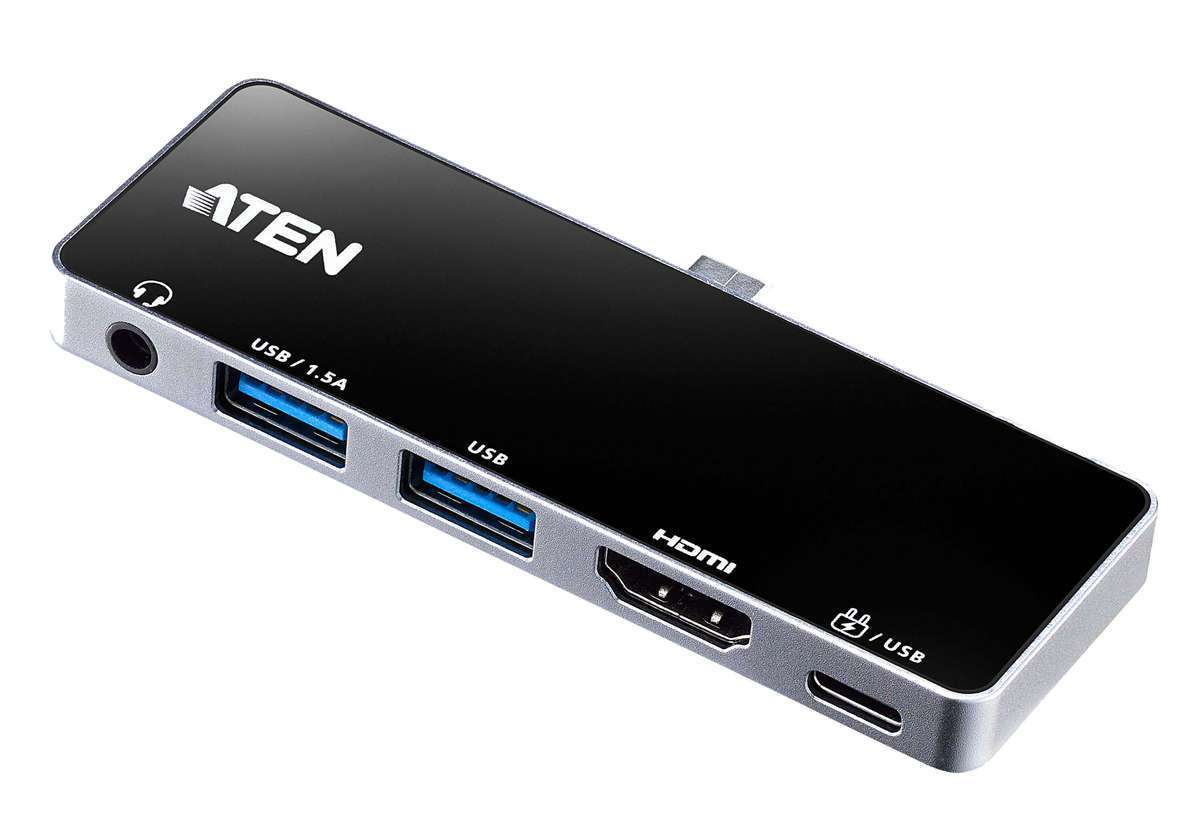

The ATEN UH3238 USB-C Travel Dock is a 5-in-1 ultra-portable travel dock that offers an uncompromising mobile experience. It provides USB-C mobile devices with access to multiple media devices. With its pocket-sized design, you can travel lighter and make the most of your mobile devices.
(*Requires device with USB-C DP Alt mode)

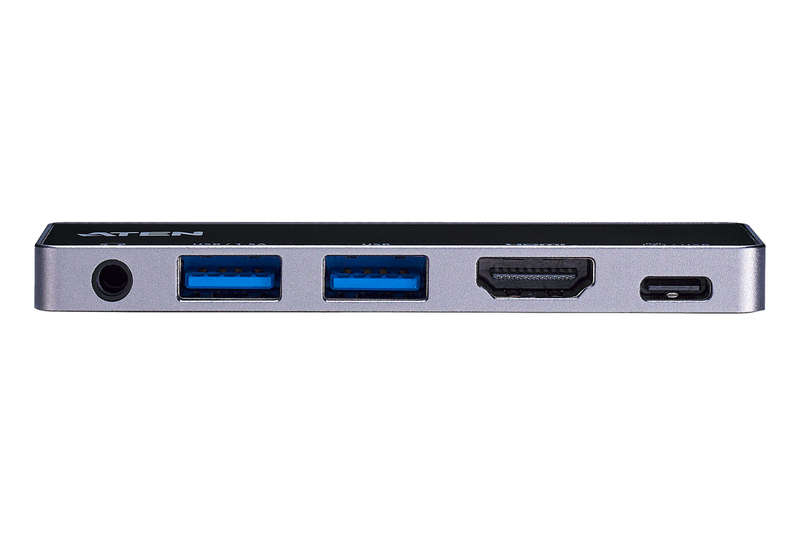

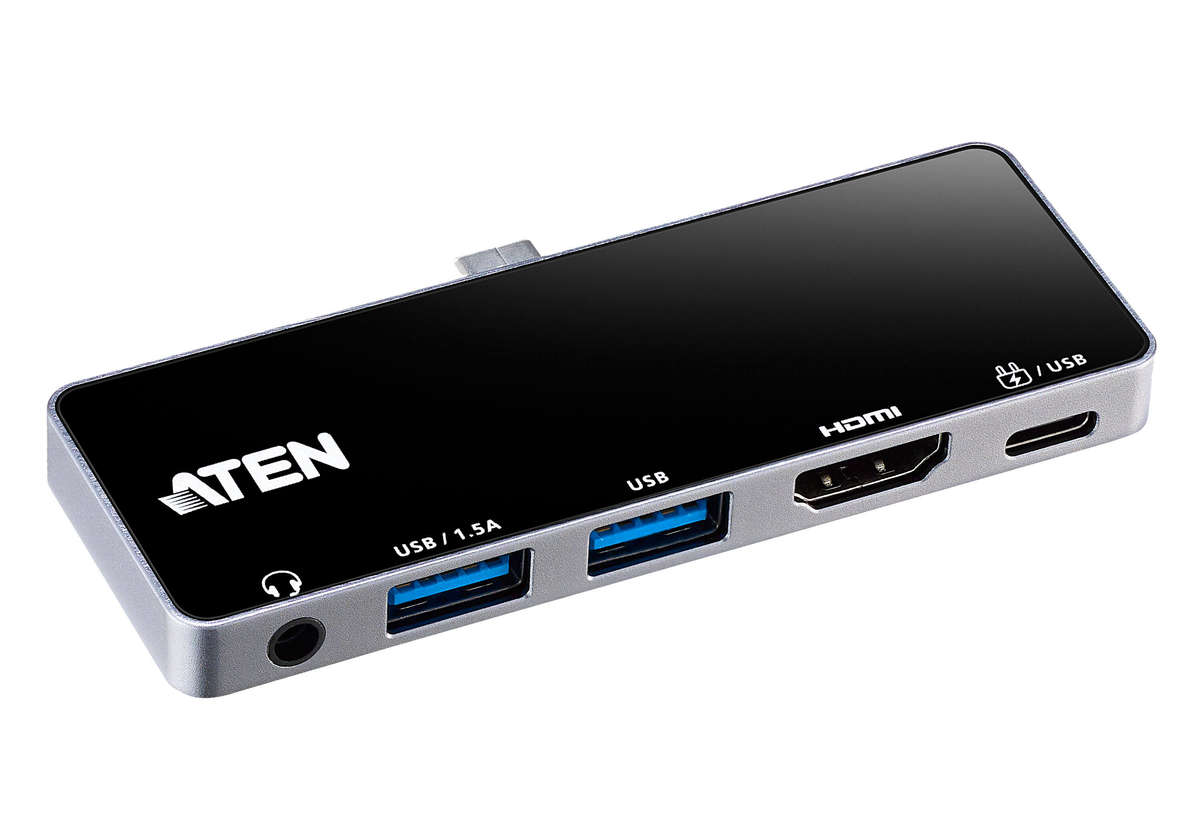

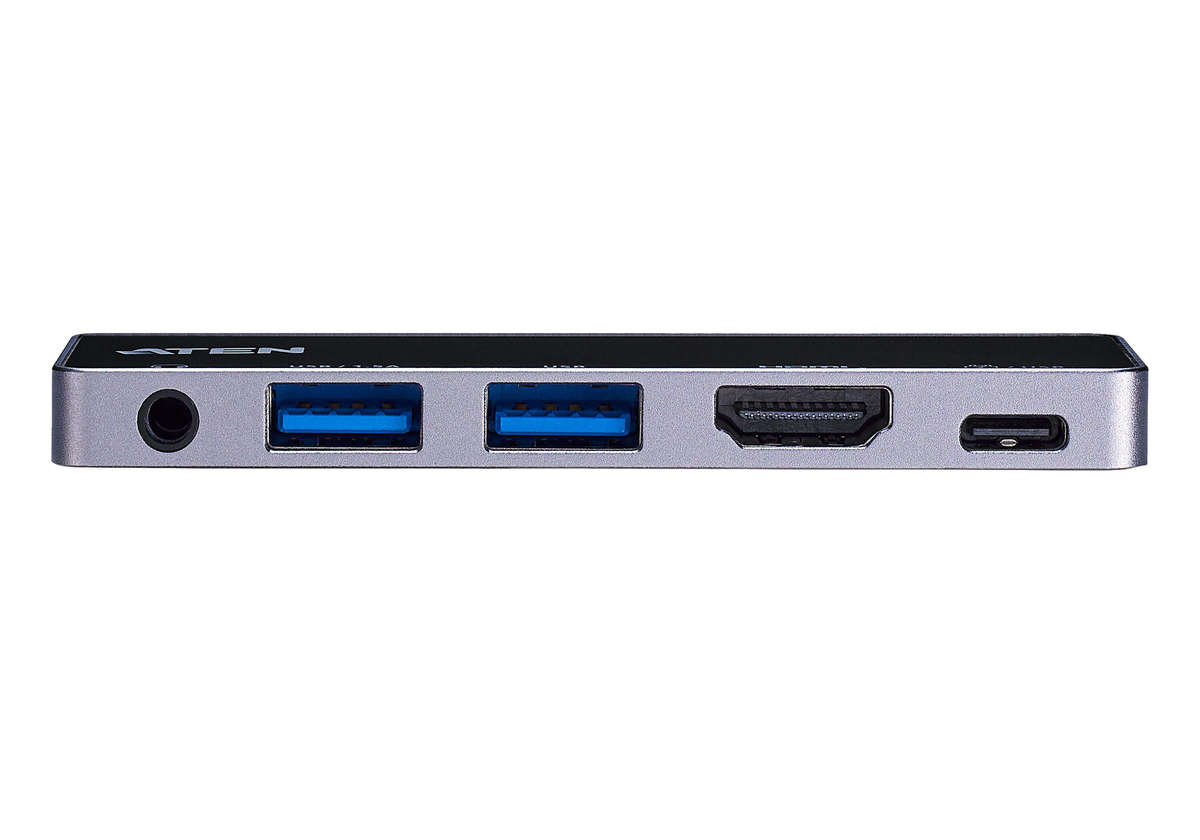

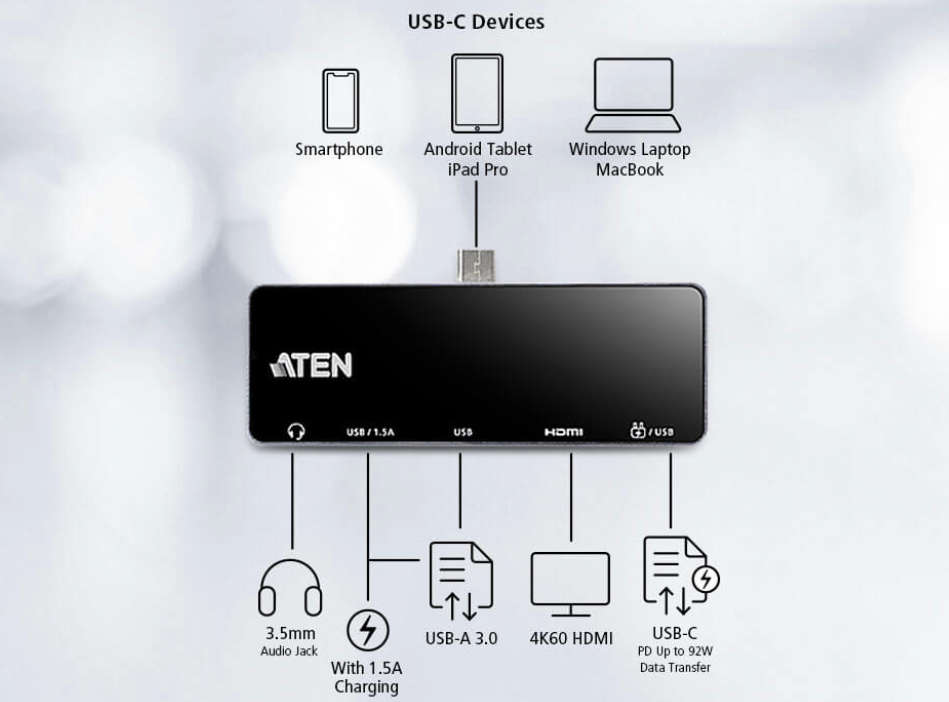

The UH3238 USB-C Travel Dock with Power Pass-Through is designed to be a portable and versatile connectivity solution. It features five essential ports: one audio port, two USB Type-A ports, one HDMI port, and one USB-C DC in port. These ports provide both connectivity and power supply for users who travel and require mobile office scenarios.
Key features of the UH3238 include:
- Data Transmission Speed: The Thunderbolt 3 and USB 3.2 Gen 1-compatible interface ensures superior data transmission speeds of up to 5 Gbps.
- Video Output: With support for up to 4K HDMI (3840 x 2160 @ 60Hz), users can multitask at stunningly realistic UHD resolution.
- Compatibility: The UH3238 is compatible with major operating systems, including Windows®, macOS X, iPadOS, and Android.
- Plug-and-Play Design: It boasts a convenient plug-and-play design.
- Compact and Lightweight: Weighing just 44g, it's an ideal data and power transmission solution for mobile workstations.
5-in-1 Travel Dock:
- Includes one audio port
- Two USB Type-A ports
- One HDMI port
- One USB-C DC in port
Power and Charging:

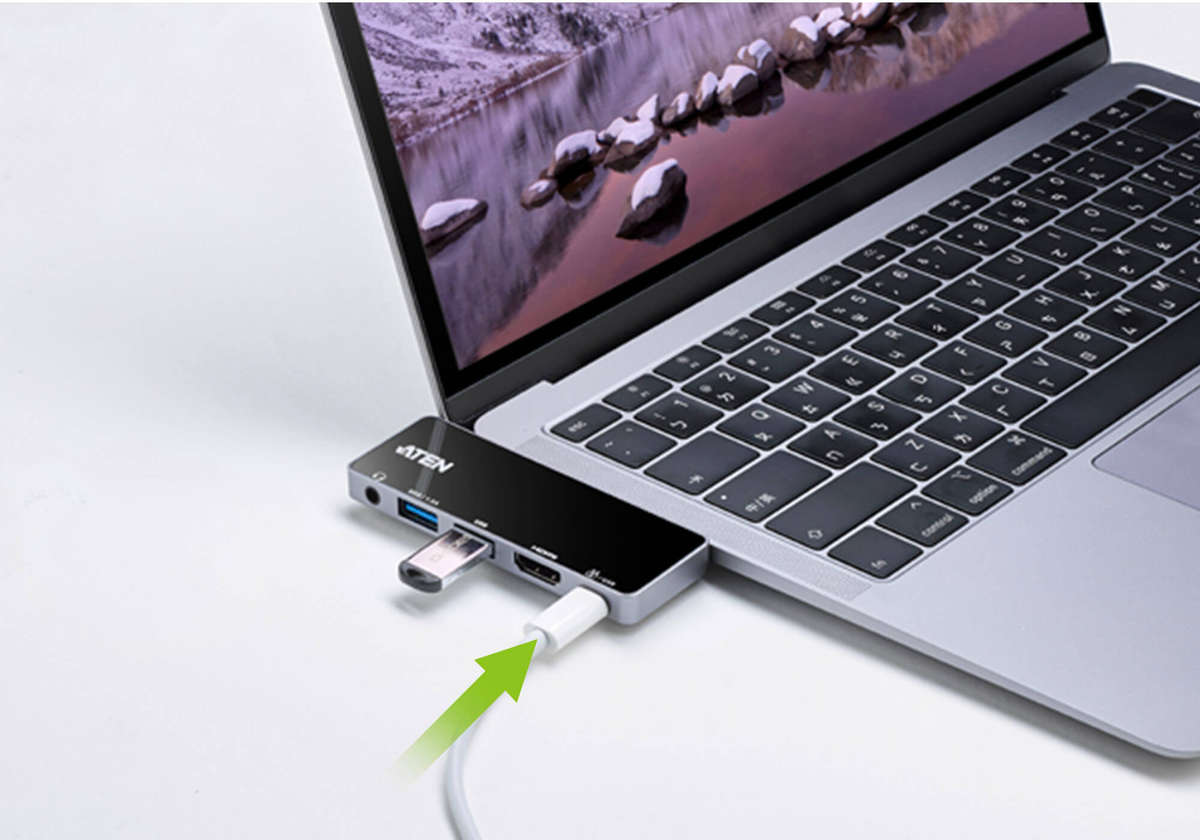

- Supports USB PD 3.0 for charging up to 92W via a USB-C PD power adapter.
- Power profiles include 5V, 9V, 15V, and 20V.
Video Output:
- Supports DP 1.4 Alt mode with up to 4K (3840 x 2160) @ 60Hz for superior video output.
- HDMI (3D, Deep Color, 4K); HDCP 2.2 compliant.
Compatibility and Ease of Use:
- Plug and Play no drivers needed.
- Works with all major operating systems: Windows®, macOS X, iPad Pro (USB-C), and Android.
- Compatible with Thunderbolt3 (USB-C).
Design:
- Compact and lightweight, ideal for a mobile workstation.
- Apple M1 chip compatible.
Technical Specifications
Connectors:
- Computer:
- Device:
- 1 x USB 3.2 Gen 1 Type-A female supports BC 1.2 (Max. output 5V, 7.5W)*
- 1 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W)*
- 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12.5W)*
- *a. 2 x USB-A ports share a total of 5V, 9W when UH3238 is powered by an external USB-C PD power adapter.
- *b. 2 x USB-A and 1 x USB-C ports share a total of 5V, 7.5W when UH3238 is powered by an iPad via USB-C.
- *c. 2 x USB-A and 1 x USB-C ports share a total of 5V, 12.5W when UH3238 is powered by a PC via USB-C (@5V,3A bus-powered).
Video Output:
Audio:

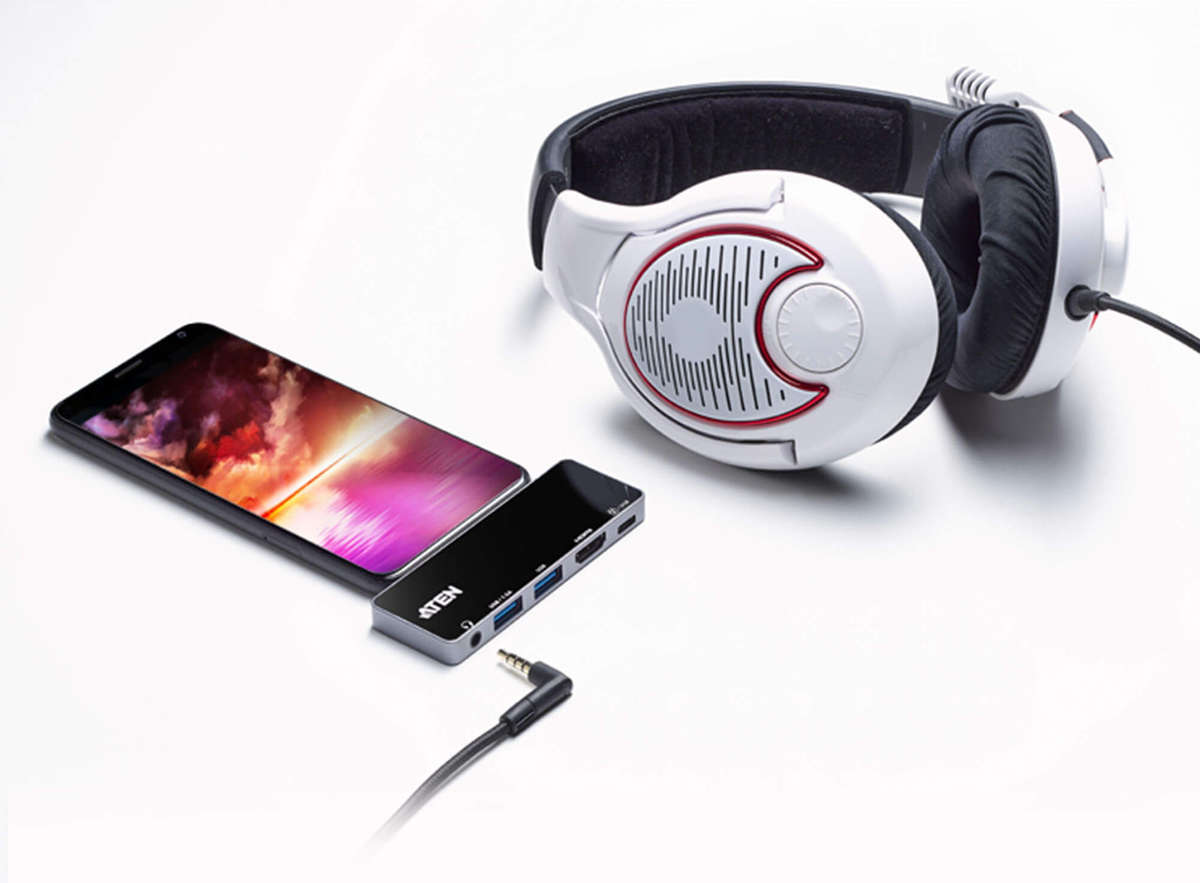

- 1 x 3.5mm stereo 4-pole microphone and headphone jack
Power:
- 1 x USB Type-C Female (supports USB 3.2 Gen 1 Data transfer)*
- *Supports Power Delivery 3.0 for laptop charging up to 92W; power profiles include 5V, 9V, 15V, 20V (additional USB-C PD power adapter needed).
Video Resolution:
- 3840 x 2160@60Hz*
- *To achieve maximum bandwidth, the upstream should support standard DP1.4 Alt mode with DSC3:1 and HBR3. When connecting to a DP1.2 Alt mode supported upstream, the max resolution of HDMI is 4k@30Hz due to bandwidth limitations.
Power Consumption:
- DC5V: 8W BTU/h
- *Note: The measurement in Watts indicates the typical power consumption of the device with no external loading. The measurement in BTU/h indicates the power consumption when the device is fully loaded.
System Requirements:
- Windows 10 and above, USB-C enabled computer with DP Alt Mode*
- *Requires Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation can be found here: Intel Processor Numbers.
- Mac OS X 10.12 and above, USB-C enabled computer
- iPadOS 13.1 and above, iPad Pro (USB-C)
- Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode
Environmental:
- Operating Temperature: 040°C
- Storage Temperature: -2060°C
- Humidity: 080% RH, Non-condensing
Physical Properties:
- Housing: Aluminum
- Weight: 0.04 kg (0.1 lb)
- Dimensions (L x W x H): 9.00 x 3.20 x 0.82 cm (3.54 x 1.26 x 0.32 in.)
Warranty:
- 1 Year Manufacturers Carry-in warranty
